Single Phase Power Splitter Box

Power Splitter Box

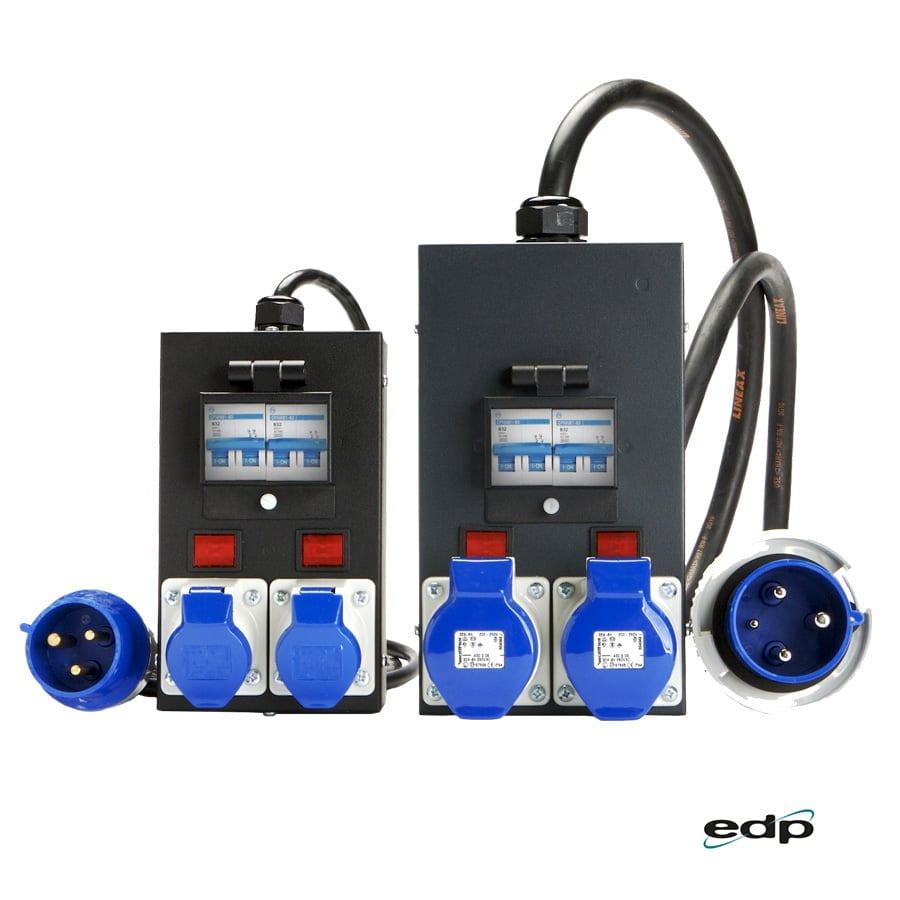

The single phase power splitter box takes a 63A or 32A power feed and splits it into multiple output feeds. The input into the power splitter box is via a standard 3m lead which feeds directly into a double pole MCB protecting each output. The output from each MCB feeds directly to a BS4343 industrial socket. Above each output socket is a large high visibility neon indicator denoting power present.

The single phase power splitter box is housed in a robust steel free standing case or can be supplied in a 4U 19” rack mounted enclosure. For additional safety there is a screw down cover over the MCBs to prevent accidental operation.

Options

• Additional length cables available to order
• Input leads are supplied with BS 4343 (IEC EN60309-2) industrial connector as standard or can be supplied unterminated.
• Three phase versions available
• Bespoke connector variations available to order.
