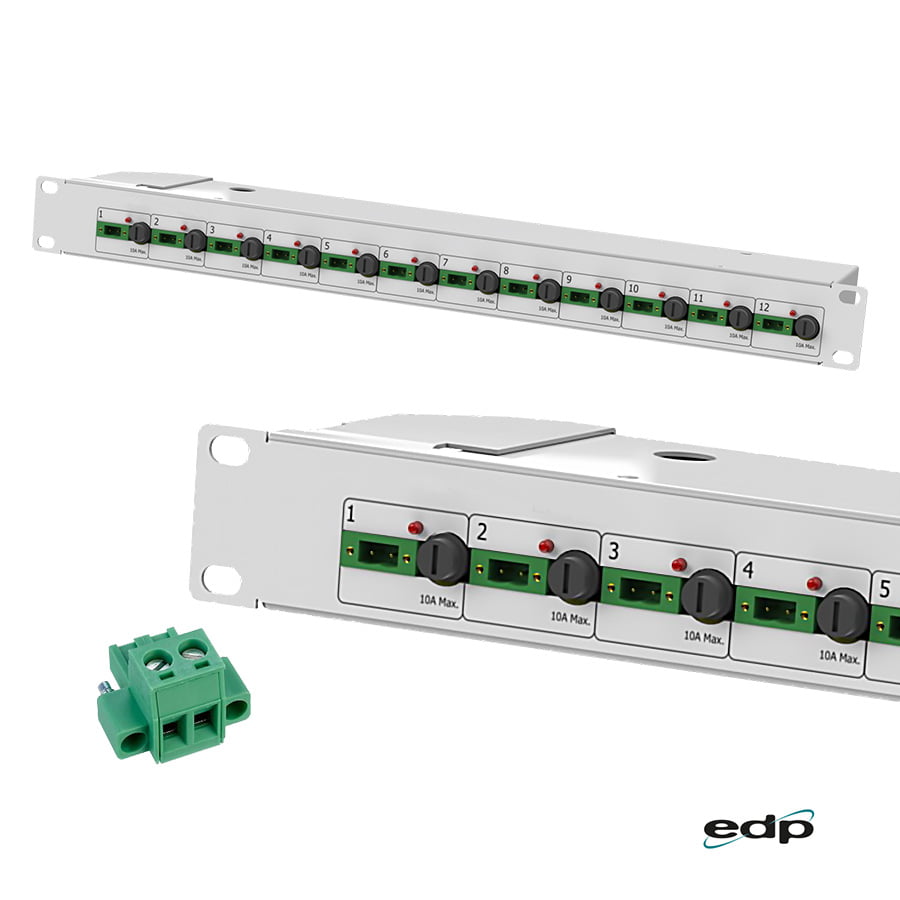

The 12 Way 24V 48V DC PDU is a high-density 1U DC PDU with 12 individually fused outputs, that are terminated with Phoenix 2 pole 16A rated connectors.
12 Way 24V 48V DC Fused PDU
DC Power Distribution Unit
Designed for use in telecoms and other sectors that require DC voltage distribution, EDP’s 24V 48V 12 Way DC PDU provides DC power distribution.
A high-density, compact, 1U DC PDU that features 12 individually fused outputs. Terminations are Phoenix 2 pole 16A rated connectors with retention screws, to ensure reliable and permanent connection. The mating plugs have screw connections for easy field termination. Solid copper rails distribute the current to each of the 12 outlets, ensuring maximum current carrying capacity.
Each outlet has its own “fuse blown” LED indicator providing clear indication on the front panel and an additional output on the rear for a remote “Fuse Blown” monitor (NC relay).
Each output handles a maximum of 10A, with the unit having a total input capacity of 120A.
Features & Benefits
Features & Benefits
- 24V 48V Fused DC PDU.
- Compact 1U DC PDU with 12 individually fused outputs.
- Phoenix 2 pole 16A rated connectors.
- Solid copper rails for distribution of current to each output.
- Fuse blown LED status on each outlet.
- Additional output on rear for remote “Fuse Blown” monitor.
- Each output handles a maximum current of 10A with unit input capacity of 120A.
Specifications
Specifications
| Case Size | 19” 1u x 120mm deep |
|---|---|
| Case Material | Mild Steel |
| Finish | Light Grey powder coat |
| Input | 120A 5mm threaded terminal studs |
| Output | Phoenix 2 pin locking 16A rated plug |
| Protection | 12x Fuse 5x20mm 10A Hi capacity ceramic body |
| Indicator | 12x Fuse Status indicator |
| Earthing | M6 Earth stud to rear |
| Rating | 120A @ 48V DC |
| Standards | BS EN IEC 62368-1:2020+A11:2020 |
| WEEE | Compliant |
| RoHS | Compliant |
| CE | Compliant |
| UKCA | Compliant |
| Operational Temperature | -10° to +70°C |
