More About This Product
A 18 way 24V 48V vertical DC PDU designed for distributing DC voltage to equipment used in telecoms and other sectors.
Categories: DC PDUs, Power & Monitoring, Power Distribution

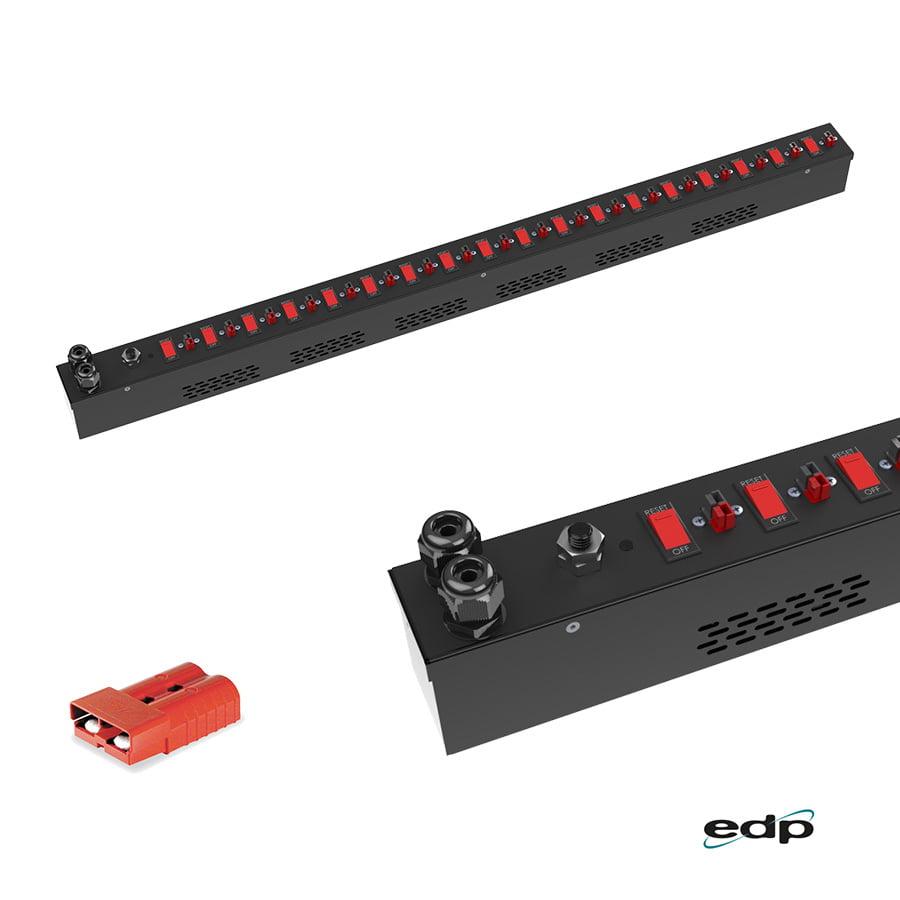

24V 48V Vertical DC PDU
18 Way DC Power Distribution Unit
A high-density, compact, vertical mounted DC PDU which has 18 individually protected outputs. Outlets are Anderson PP 45 2 pole 45A rated connectors. Solid copper internal rails distribute the current to each outlet ensuring maximum current carrying capacity.
Each output can handle up to 20A and the PDU has a total input capacity of 250A. Trips can be wired as -Ve or +Ve. Input leads are available to custom lengths and are terminated with an Anderson SB350 two pole connector.
Outputs have their own 20A rated Thermal re-settable row switch, providing clear indication on the front panel in the event of an overload.
Features & Benefits
Features & Benefits
- 24V 48V Vertical mounted DC PDU.
- 18 Individually protected outputs.
- Anderson PP 45 2 pole 45A connectors.
- Solid internal copper rails for current distribution.
- Each output can handle up to 20A, while unit has a total input capacity of 250A.
- Trips can be wired as -Ve or +Ve.
Specifications
Specifications
| Case Size | 51mm Wide x 65mm High x 821mm Long |
|---|---|
| Case Material | Mild Steel |
| Finish | Black powder coat |
| Input | 2m of H01N2-D 50mm single core, Black and Red |
| Output | Anderson PP 45 1x Black 1x Red |
| Protection | 20A Thermal rocker switch |
| Earthing | M10 Earth stud to front |
| Rating | 250A @ 48V DC |
| Standards | Conforms to EN62368-1 2014 |
| WEEE | Compliant |
| RoHS | Compliant |
| CE | Compliant |
| UKCA | Compliant |
| Operational Temperature | -10° to +70°C |
