More About This Product

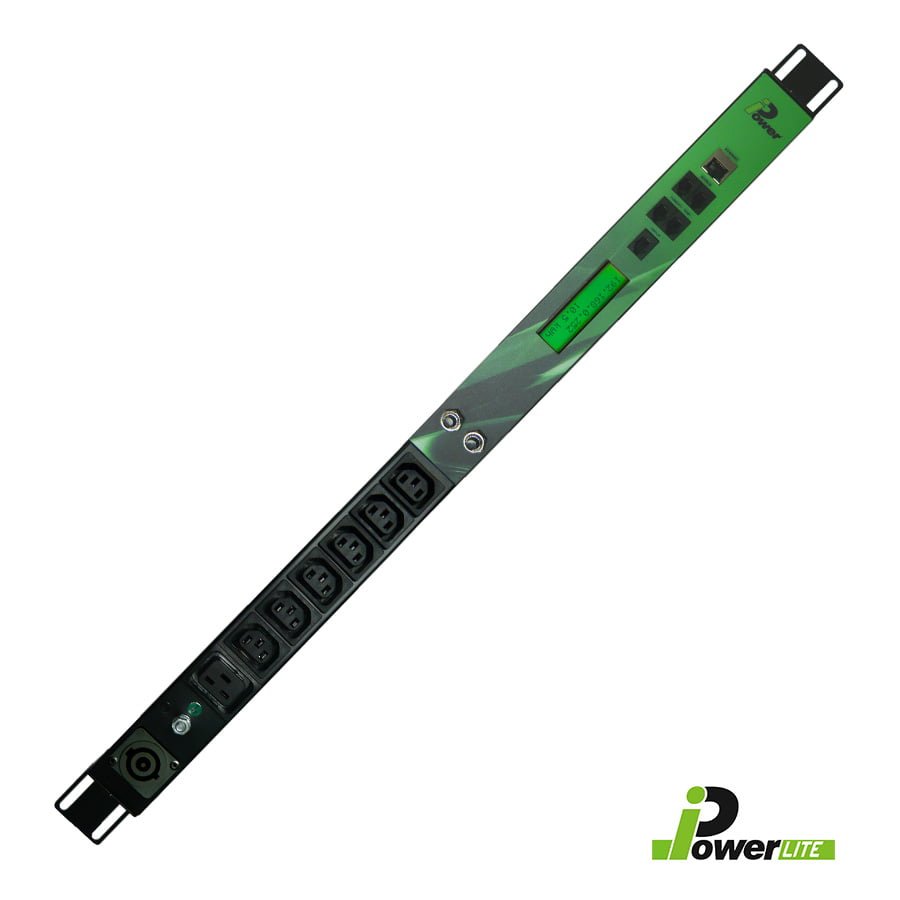

Introducing iPower LITE intelligent PDUs, part of the iPower range of intelligent PDUs that’s designed and manufactured in the UK. iPower LITE is a cost effective, entry level intelligent PDU that provides a local and remote power monitoring solution.
iPower LITE – Cost Effective Intelligent PDUs
iPower LITE is part of the iPower range of intelligent PDUs, that are designed and manufactured in the UK. iPower LITE intelligent PDUs are fully compatible with existing iPower PDUs and utilise the same HTML/SNMP web browser and software applications.
iPower LITE intelligent PDUs feature a slimline design that’s available in both horizontal and vertical mounting formats. iPower LITE communicates via HTML, HTTPS, SNMP and XML and has the option of a fitted and remote RGB display.
iPower LITE comes with a 5 year return to base warranty*.
*Subject to terms and conditions.
Energy Metrics
iPower LITE overall monitored PDUs measure and allow minimum/maximum level thresholds to be set for:
- RMS Volts.
- RMS Amps.
- Kilowatts.
- Internal Temperature.
- Frequency.
- Power Factor.
Additional measurements include:
- Peak Volts.
- Peak Current.
- kVA.
Cumulative values include:
- kWh.
- kg/CO2.
- Consumption Cost.
- kJ/H.
- BTU/h.
Features & Benefits
Features & Benefits
- Overall energy measurement.
- Monitor multiple PDUs on a single IP address.
- Fitted and remote RGB display option.
- Free supplied / supported SNMP software.
- Slimline build (45mm).
- Receive e-mail alerts.
- Easily configured and setup in minutes.
- Alerts on all set parameters.
- Range of socket options.
- Multiple mounting options.
Part Numbers
Part Numbers
Horizontal iPower Lite PDUs
| Part Number | Description |
|---|---|
| EDP-IPL-001-3x | iPower Lite 1U Horizontal PDU, 10 x C13 and 2 x C19 outlets, 3m lead, Replace x with Plug Type code |
| EDP-IPL-313-3x | iPower Lite 1U Horizontal PDU, 12 x C13 outlets, 3m lead, Replace x with Plug Type code |
| EDP-IPL-337-3x | iPower Lite 1U Horizontal PDU, 6 x C13, 2 x C19 and 2 x UK outlets, 3m lead, Replace x with Plug Type code |
| EDP-IPL-002-3x | iPower Lite 2U Horizontal PDU, 12 x C13 and 2 x C19 outlets, 3m lead, Replace x with Plug Type code |
| EDP-IPL-170-3x | iPower Lite 2U Horizontal PDU, 20 x C13 and 4 x C19 outlets, 3m lead, Replace x with Plug Type code |
| EDP-IPL-241-3x | iPower Lite 2U Horizontal PDU, 14 x C13 Fused Neon and 6 x C19 Fused Neon outlets, 3m lead, Replace x with Plug Type code |
| EDP-IPL-295-3x | iPower Lite 2U Horizontal PDU, 24 x C13 outlets, 3m lead, Replace x with Plug Type code |
Vertical iPower Lite PDUs
| Part Number | Description |
|---|---|
| EDP-IPL-003-3x | iPower Lite Vertical Slimline PDU, 12 x C13 and 2 x C19 outlets, 3m lead, Replace x with Plug Type code |
| EDP-IPL-004-3x | iPower Lite Vertical Slimline PDU, 24 x C13 and 4 x C19 outlets, 3m lead, Replace x with Plug Type code |
| EDP-IPL-005-3x | iPower Lite Vertical Slimline PDU, 36 x C13 and 6 x C19 outlets, 3m lead, Replace x with Plug Type code |
| EDP-IPL-151-3x | iPower Lite Vertical PDU, 20 x C13 Locking, 6 x C19 Locking and 2 x UK outlets, 3m lead, Replace x with Plug Type code |
| EDP-IPL-215-3x | iPower Lite Vertical PDU, 16 x C13 and 2 x C19 outlets, 3m lead, Replace x with Plug Type code |
Part Number Options
| Plug Types | |
|---|---|
| A | 13A UK |
| B | 16A Commando |
| C | 32A Commando with 2 x 16A Trips |
| D | C14 |
| E | C20 |
