More About This Product
IEC Lock c19 cables feature the patented locking C19 connector that prevents accidental removal from the connected equipment.
Categories: PDU Consumables, Power & Monitoring, Power Distribution

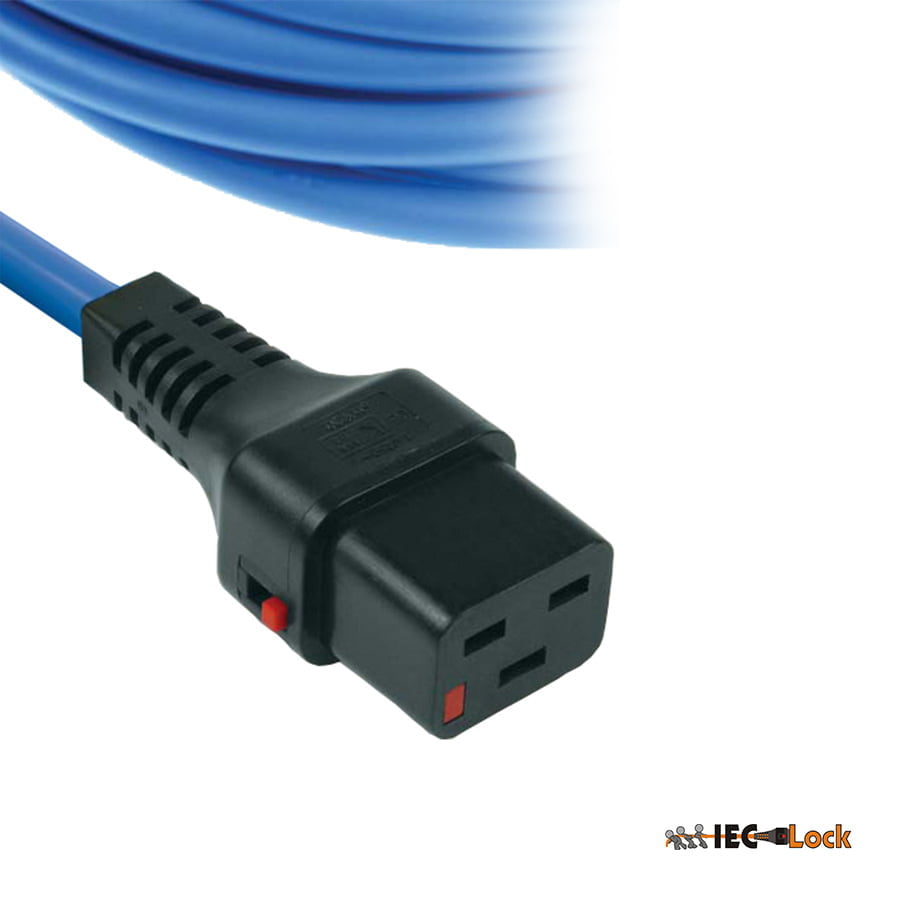

Power Cables with Locking C19 Connector
The IEC Lock Locking C19 connector is part of the IEC Lock range and operates in the same way as the IEC Lock C13 connector. Featuring the patented locking mechanism that provides a secure power connection to the attached equipment, often considered the weakest point.
The locking mechanism prevents the accidental disconnection of the connector and is ideal for use in high-density applications, where accidental removal of power connections may happen. The connector features a red tab which needs to be pulled back to enable the release of the locking mechanism and allow the connector to be disconnected.
Features & Benefits
Features & Benefits
- Protects IT equipment from accidental disconnection helping to protect valuable data.
- Ideal for protecting appliances that are vulnerable to vibration where standard connectors may become accidentally disconnected.
- Locking C19 connector, with locking C13 connectors also available.
- IEC-Lock power leads available to UK Plug, European Schuko Plug, C14 or C20, and bare-end.
Specifications
Specifications
Cable Lengths & Size
- Cable lengths available from 300mm to any length with combinations available to special order.
- Cable size: 3 x 1.50mm2 H05VV-F
- Cable size: 3 x 14awg SJT
- Cable colours: Black, Orange, Blue, Red & White
Test Information
- Test Body: KEMA, UL, SAA, KC
- Test Standard: IEC/EN 60320-1
