More About This Product
IEC-Lock is a range of innovative locking power cables that includes the C13 moulded connector.
Categories: PDU Consumables, Power & Monitoring, Power Distribution

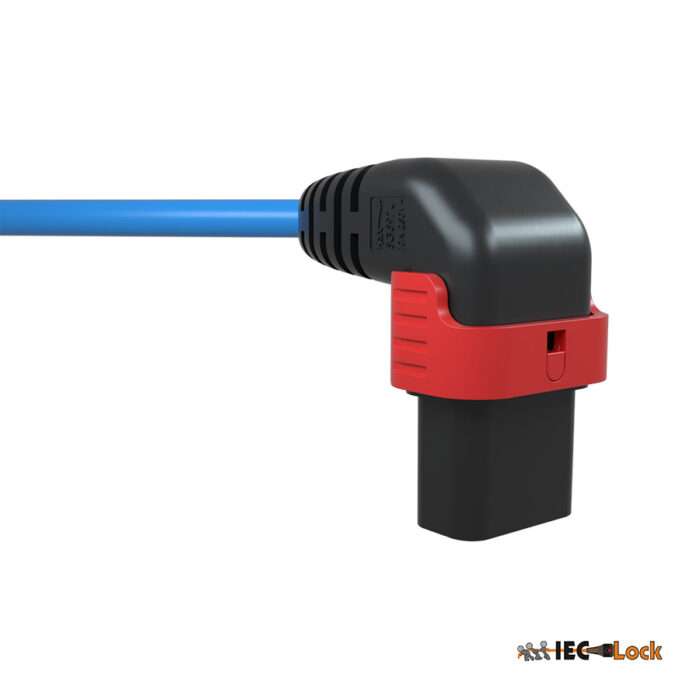

Moulded Angled Locking C13 Connector
The IEC-Lock C13 Moulded connector is a locking angled C13 connector designed to aid installation in areas where fitting a straight connector is not possible.
Like others in the IEC-Lock range, the IEC-Lock locking C13 Moulded connector features the patented locking mechanism that prevents accidental removal of the connector, providing a secure power connection at the weakest point in the power connection; the equipment itself.
Features & Benefits
Features & Benefits
- Protects IT equipment from accidental disconnection helping to protect valuable data.
- Ideal for protecting appliances that are vulnerable to vibration where standard connectors may become accidentally disconnected.
- Locking C13 connector with cables available with locking C19 connectors.
- IEC-Lock power leads available to UK Plug, European Schuko Plug, C14 or C20, and bare-end.
Specifications
Specifications
Cable Lengths & Size
- Available in lengths from 300mm to any length. Various cable lengths and assemblies are available for special order.
- Cable size: 3 x 0.75 / 1.00mm2 H05 V V-F
- Cable size: 3 x 18 / 16awg SVT / SJT
- Available colours: Black, Orange, Blue, Red & White.
Test Information
- Test Body: KEMA, UL, SAA, KC, PSE
- Test Standard: IEC/EN 60320-1
