More About This Product
iPower ATS is an Automatic Transfer Switch that provides reliable and precise management of primary and secondary AC power feeds for equipment with just a single power connection.

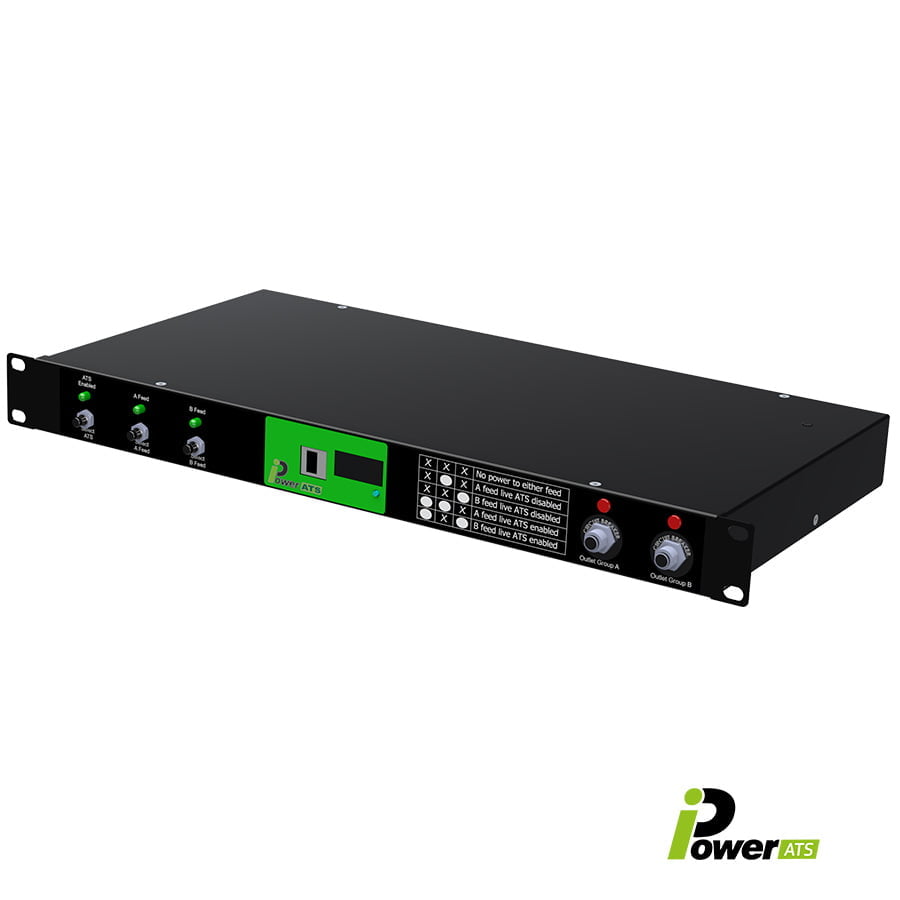

iPower ATS (Automatic Transfer Switch)
Setting new standards for Data Centre power management
iPower ATS is a next generation Automatic Transfer Switch that exceeds the industry standard 21ms transfer time and comes with remote management and analytical tools, to put you in control of your power source infrastructure.
Designed to connect equipment with a single power connection to facilitate management of primary and secondary AC power feeds, the iPower ATS provides automatic or manual selection of either incoming single-phase supply.
Utilising the proven iPower platform the ATS can be remotely managed with clear and precise on-board instructions for setting up parameters and creating alerts.
In addition, iPower ATS has a powerful 1% tolerance energy meter providing reports and alarms for a range of energy metrics including:
|
|
Features & Benefits
Features & Benefits
- iPower ATS is a new generation intelligent
Automatic Transfer Switch, that exceeds the industry standard 21ms transfer time and comes with remote management and analytical tools, to put you in control of your power source infrastructure. - iPower ATS has an easy-to-use HTML graphical interface, with the ability to set SMS and Email alarms for all critical parameters.
- iPower ATS will work in conjunction with other iPower products to create a fully flexible monitoring system allowing for individual racks to have switching only, or switching with supply management, rack security and environmental capabilities.
Specifications
Specifications
- iPower ATS works in Manual mode, where only one feed is required, or in Fully Automatic.
- When in Automatic mode, the user retains full control and can select the preferred feed using the web interface.
- iPower ATS is 16A or 32A rated, with a wide choice of input and output configurations.
- iPower ATS meets the industry standard 21ms transfer time, with an exceptionally fast changeover speed of between 8-15ms on both Live and Neutral Conductors.
- iPower ATS is configurable with a choice of inlet and outlet styles, in 1U or 2U rack mounted vented steel enclosure.

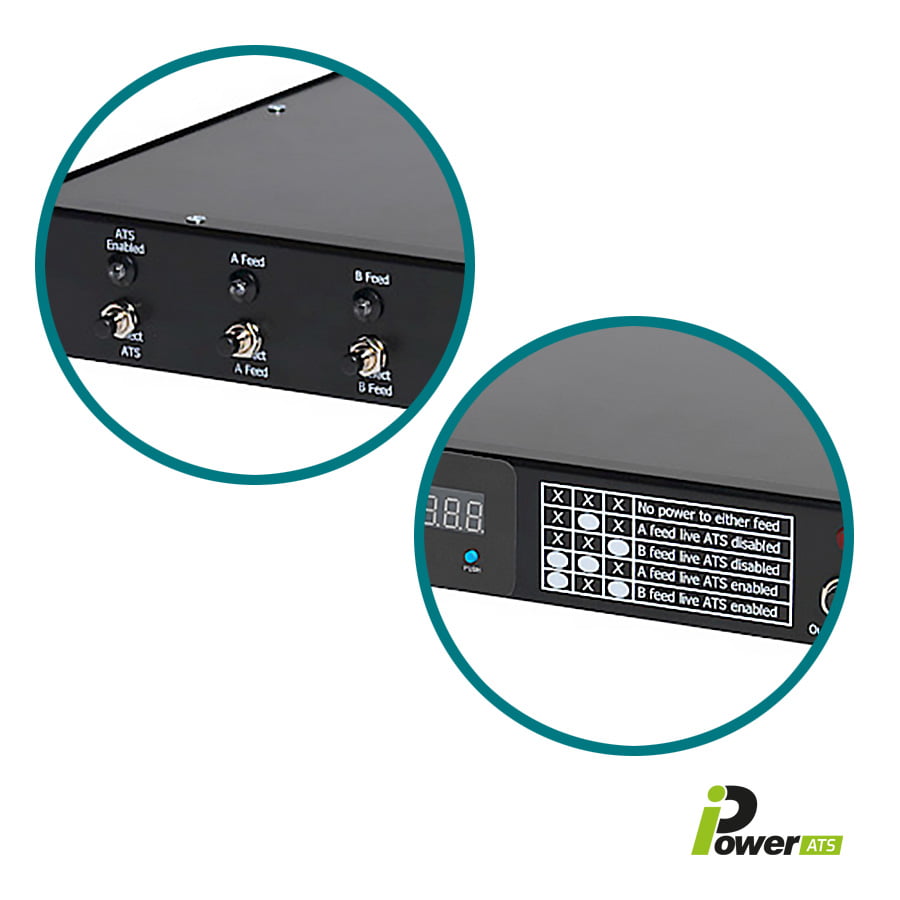

- Full control of the switching state can be selected from the front panel, with status LED’s to confirm source and load.
- Network interface. HTTP, SNMPv2, Alerts via SNMP, and Email, DHCP or Static IP, Speeds up to 100Mbps.
- All iPower products are designed and manufactured in the UK and are fully supported with a 5 year return to base warranty.
Technical Information
Manufactured in accordance with BS EN IEC 62368-1:2020+A11:2020
| Input Voltage: | 220-240V 50/60Hz |
|---|---|
| Output Voltage: | 220-240V 50/60Hz |
| Input Current: | 16A or 32A |
| Output Current: | 16A or 32A |
| Protection: | Overcurrent protection on outlets |
| Switching Speed: | >8mS <15ms L1 plus N Operating |
| Operating Temperature: | -10° to +45°C (Has internal temperature monitoring) |
| WEEE: | Compliant |
| RoHS: | Compliant |
| CE: | Compliant |
| UKCA: | Compliant |
Part Numbers
Part Numbers
Horizontal iPower ATS (Automatic Transfer Switch)
| Part Number | Description |
|---|---|
| EDP-AT-120-04-2XS1 | iPower ATS with 10 x C13 outlets and 2 x C20 inputs |
| EDP-AT-120-07-2X3B | iPower ATS with 10 x C13 outlets and 2 x 3m 16A Commando inputs |
| EDP-AT-120-07-2X3C | iPower ATS with 10 x C13 outlets and 2 x 3m 32A Commando inputs |
| EDP-AT-120F-08-2XS2 | iPower ATS with 10 x C13 outlets and 2 x C14 inputs |
