More About This Product
The UPS Bypass switch from EDP solves the issue of disconnecting a UPS from service, without losing power to the device that it is supporting.
UPS Bypass Switch
Manual Power Transfer Switch

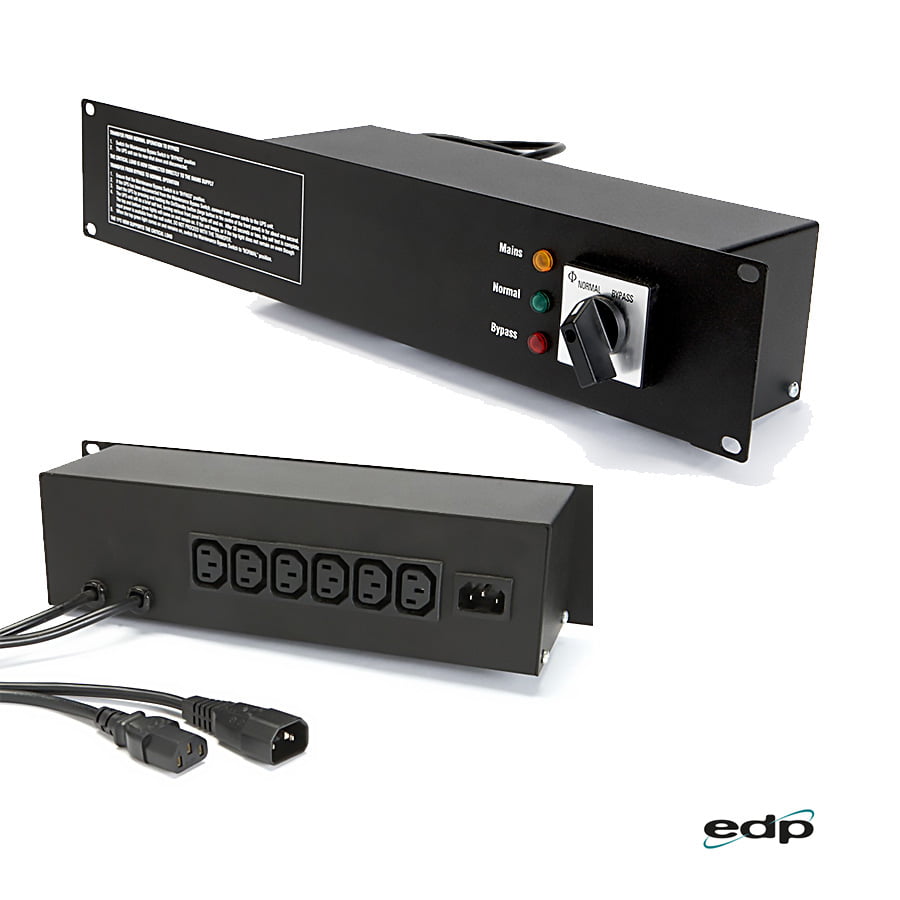

The UPS Bypass Switch is a manual power transfer switch that solves the problem of disconnecting a UPS from service without interrupting the power to the device it is supporting.
On the rear of the Bypass Switch there are two leads; one taking power from the building’s supply and directs it to the UPS, the other takes power back from the UPS into the Bypass Switch. Devices that need to be supported are then connected to the outlets in the rear of the switch. Neon indicators on the front of the switch clearly show when the unit is in bypass mode, achieve by the large switch on the front panel.
Two versions are available: A 2Kva Bypass Switch that is rated at 10A and has 6x IEC C13 outlets and a 3Kva switch rated at 16A with 3x IEC C13 and 3x IEC C19 outlets.
Features & Benefits
Features & Benefits
- UPS Bypass Switch that solves the problem of disconnecting a UPS from service without disrupting power to the devices it is supporting.
- Manual transfer switch via switch on front of unit.
- Two models available.
- Free standing unit or 2u rack mounted unit.
Specifications
Specifications
EDP-105-BPS-2-10
| Max. Rated Current | 10A (C14 Inlet) |
|---|---|
| AC Voltage | 200-240v |
| Frequency | 50/60Hz |
| Indicators | Mains / Normal / Bypass |
| Cable Length | 3m |
| UPS Connections | IEC 320 C13 & C14 |
| Equipment Outlets | 6x IEC C13 |
EDP-105-BPS-3-16
| Max. Rated Current | 16A (C20 Inlet) |
|---|---|
| AC Voltage | 200-240v |
| Frequency | 50/60Hz |
| Indicators | Mains / Normal / Bypass |
| Cable Length | 3m |
| UPS Connections | IEC 320 C19 & C20 |
| Equipment Outlets | 3x IEC C19 & 3x IEC C13 |
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| EDP-105-BPS-2-10 | Bypass Switch, 2Kva, 10A (C14 input), IEC C13 outlets (x6) |
| EDP-105-BPS-3-16 | Bypass Switch, 3Kva, 16A (C20 input), IEC C13 (x3) & C19 (x3) outlets |
