Cold Aisle Containment: The Ultimate Guide To
In the fast-paced world of Data Centres, efficiency and performance are very important. Data Centre professionals see cold aisle containment as a key strategy to improve cooling systems and effectively manage airflow. This comprehensive guide explores the essentials of cold aisle containment, highlighting its significance in enhancing Data Centre infrastructure and boosting overall operational efficiency.
You will discover how cold aisle containment impacts airflow and learn the critical considerations for designing an effective system.
This article offers valuable insights that every Data Centre professional should know about aisle containment.
We will explain the differences between cold aisle containment and hot aisle containment. This will help you understand these important methods. Join us as we share the details of cold aisle containment and learn how to improve your Data Centre’s performance.
What is Cold Aisle Containment?
Cold aisle containment (CAC) serves as a fundamental airflow management strategy in modern Data Centres, optimising cooling efficiency and enhancing overall performance. At its core, it strategically separates the cold air—the lifeblood of IT equipment—from the hot air that servers and other hardware exhaust. Picture rows of server racks arranged in a back-to-back configuration, creating alternating “hot” and “cold” aisles. The “cold” aisle delivers cool air to the front of the servers, while the “hot” aisle expels heated exhaust air from the rear.
In a conventional Data Centre setup without aisle containment, hot and cold air streams can easily mix freely, resulting in a less efficient cooling process. The cold air intended for the servers gets diluted by the hot air, forcing the cooling system to work harder and consume more energy to maintain the desired temperature. This inefficiency can create hotspots, reduce equipment lifespan, and increase operational costs.
However, cold aisle containment, as part of an overall airflow management strategy, proactively addresses this. The cold aisle containment creates a physical barrier that prevents the cold air from mixing with the surrounding environment. This barrier often includes physical structures such as ceilings (or “roofs”), doors at either end of the aisle, and gap in-fill panels, which together enclose space around the cold aisle.
These structures prevent the mixing of cold air and hot exhaust air, playing a crucial role in creating a targeted and efficient cooling system that ultimately saves energy, improves equipment reliability, and reduces the carbon footprint for the Data Centre.
We will cover:
- Why is Cold Aisle Containment Important?
- Impact of Cold Aisle Containment on Airflow in Data Centres
- The Role of Cold Aisle Containment in Data Centre Infrastructure
- Improving Data Centre Efficiency with Cold Aisle Containment
- Key Considerations When Designing a Cold Aisle Containment System
- Cold Aisle Containment vs. Hot Aisle Containment
Why is Cold Aisle Containment Important?
Modern Data Centres face increasing demands that necessitate efficient and reliable cooling solutions. Cold Aisle Containment (CAC) has become an important strategy. It helps solve problems related to cooling in Data Centres. Without CAC, the cooling infrastructure struggles to maintain optimal temperatures, leading to inefficiencies and potential risks.
The core problem arises when hot exhaust air from servers mixes with the cold air intended for their intake. These mixing air streams make the cooling system work harder. It has to cool the whole room instead of just certain areas.
Investing in cold aisle containment offers many benefits. It is an important part of modern Data Centre design and operation. Here’s a detailed look at its importance:
- Improved Cooling Efficiency: The most significant benefit of CAC is arguably its ability to improve cooling efficiency. By physically separating the cold supply air from the hot exhaust air, CAC prevents the two from mixing. This containment makes sure the cooling system sends cold air straight to the server intakes. It does this at the best temperature and volume. The cooling system does not cool the whole Data Centre. Instead, it focuses on the cold aisle. This change greatly improves efficiency.
- Reduced Energy Costs: Improving cooling efficiency enables changes that lead to a reduction in energy consumption. Because the cooling units, such as Computer Room Air Conditioners (CRAC units), no longer constantly battle against hot air contamination, they do not need to operate at full capacity or cycle as frequently to maintain the desired temperature. Additionally, operators can increase the set points. This improvement in workload results in lower electricity bills and decreased operational expenditures.
- Increased Server Uptime: Overheating poses a major threat to server stability and longevity. Inconsistent or inadequate cooling leads to component failures and system crashes, which ultimately result in costly downtime and potential data loss. By effectively eliminating hot spots and ensuring a consistent and optimal thermal environment within the cold aisle, CAC significantly reduces the risk of server overheating. This increased reliability fosters higher server uptime, uninterrupted service provision, and improved overall business continuity.
- Enhanced Capacity Utilisation: Data Centres often face constraints due to space and power limitations. CAC allows for higher density deployments of IT equipment within the same physical footprint. By optimising cooling efficiency, operators can safely run more servers within a given area without exceeding cooling capacity. This maximises capacity and allows businesses to utilise their valuable space and resources efficiently. So, enabling them to scale infrastructure to meet growing demands without incurring costly expansions.
- Predictable Thermal Environment: A common issue in Data Centres lacking proper containment is the presence of unpredictable and inconsistent air temperatures. Hot spots can develop, leading to localised overheating and potential equipment failures. CAC creates a more controlled and predictable thermal environment. By keeping hot and cold air apart, it helps maintain steady server intake temperatures. This reduces the chance of hot spots and improves equipment reliability. This uniformity allows operators to better monitor and manage the cooling system, ensuring optimal performance across the entire Data Centre.
- Environmental Sustainability: In today’s world, organisations must prioritise environmental considerations. By significantly lowering energy consumption, CAC contributes to a more environmentally sustainable Data Centre operation. Reduced energy use translates to a smaller carbon footprint, assisting organisations in achieving their sustainability goals and complying with environmental regulations. Implementing CAC demonstrates a commitment to responsible resource management, helping to create an eco-friendlier Data Centre operation.
Impact of Cold Aisle Containment on Airflow in Data Centres
Cold aisle containment offers a core benefit: it profoundly impacts airflow. In a Data Centre without containment, cold air from the CRAC or CRAH units can mix with hot air from the servers. This happens if airflow management best practices are not followed. This mixing means that the cooling system needs to work harder, leading to energy wastage and inconsistent temperatures.
However, with effective cold aisle containment, we create a distinct separation of airflow. Here’s how:
- Directed Cooling: The system sends cold air directly into the cold aisle. This lets IT equipment take in the cold air easily.
- Reduced Air Mixing: By containing the cold air, it prevents it from mixing with the hot air exhausted by the servers.
- Effective Heat Removal: When you use CAC with other airflow management practices, hot air from servers is pushed up. It moves out of the back of server racks and into the hot aisles. This separation allows the cooling system to efficiently remove heat from the Data Centre.
- Optimal Air Flow: This method ensures that the hot air does not re-enter the server intakes, preventing hot spots and creating predictable airflow patterns.
The Role of Cold Aisle Containment in Data Centre Infrastructure
Cold aisle containment has transitioned from a supplementary measure to a fundamental pillar of modern Data Centre infrastructure. Its impact resonates deeply across several critical areas, fundamentally shaping how designers, managers, and users approach Data Centre operations. Specifically, cold aisle containment directly improves:
- Cooling System Design and Optimisation: Traditional data centre cooling often wastes energy due to cooled air mixing with hot exhaust air. This mixing causes inconsistent server temperatures. Cold aisle containment helps change this. By physically separating the cold supply air from the hot exhaust air, we create a precisely controlled environment. This enhanced control allows a more targeted and efficient cooling system. Rather than supplying more cooling than required, to compensate for air mixing, systems can be configured to match cooling to the actual heat load of the IT equipment. In doing so it enables us to optimise cooling systems, reduce fan speeds, chiller run times, and overall energy waste.
- Space Planning and Rack Deployment Strategies: The implementation of aisle containment solutions directly influences how we arrange and deploy server racks within the Data Centre. The most common and efficient approach enabled through cold aisle containment is the back-to-back row configuration. This layout allows us to concentrate hot exhaust air in a common hot aisle, where we can efficiently remove and cool it. Cold aisle containment defines airflow paths, enabling us to achieve higher rack densities, allowing more computing power to fit into the same physical footprint.
- Infrastructure Management and Thermal Control: Effective cold aisle containment streamlines thermal management and simplifies the overall operation of the Data Centre. By isolating the cold aisle, we create a stable and predictable thermal environment. This allows us to monitor airflow and temperatures within the racks more accurately. Utilising monitoring systems to track temperature changes, identify potential hotspots, and proactively address cooling needs. The controlled airflow patterns minimise the risk of hot air recirculation, which can lead to server overheating and reduced performance. Furthermore, with a consistent temperature, there is a much lower risk of downtime, allowing more time for preventative maintenance rather than reactive fixes.
- Capacity Planning and Footprint Optimisation: Cold aisle containment enhances capacity planning by enabling higher rack densities. As a result, racks can house more servers and computing power within the same physical footprint. In Data Centres where space is at a premium, cold aisle containment emerges as an essential tool for maximising resource utilisation. By optimising space use, we can defer or avoid costly Data Centre expansions. The capacity to support higher densities also allows us to consolidate older, less efficient servers onto newer, more powerful hardware, further increasing capacity and reducing energy consumption. This optimisation leads to greater efficiency, reduced operational costs, and a smaller overall environmental impact.
In short, cold aisle containment is not merely a component; it serves as a strategic enabler for Data Centre efficiency, performance, and scalability. Its benefits span from initial design and space allocation to ongoing management and long-term capacity planning.
Improving Data Centre Efficiency with Cold Aisle Containment
Cold aisle containment directly enhances Data Centre efficiency and delivers real benefits across various operational aspects. Let’s delve into these advantages in greater detail:
- Reducing Power Usage Effectiveness (PUE): Power Usage Effectiveness (PUE) serves as a critical metric for gauging Data Centre efficiency, representing the ratio of total facility power to IT equipment power. Implementing cold aisle containment reduces the energy required for cooling. By isolating the cold air supply, cooling systems operate more effectively, which reduces the energy needed to maintain desired temperatures. This decrease in overall energy consumption directly lowers the PUE score, signifying a more energy-efficient Data Centre. A lower PUE not only leads to cost savings but also reflects a commitment to environmentally responsible practices.
- Lowering Operating Costs: The efficient cooling achieved through cold aisle containment significantly impacts operational expenses by reducing energy consumption. Cooling systems often draw a significant amount of energy in Data Centres, and optimising their performance through cold aisle containment leads to substantial cost reductions. Over time, these savings accumulate, improving profitability and enabling the reallocation of resources to other critical areas of the Data Centre, such as infrastructure upgrades or innovation projects.
- Improved Server Performance: To maintain reliable and efficient operations, it is crucial to keep server temperatures optimal and consistent. Cold aisle containment ensures stable and predictable cooling, allowing servers to operate within their designed temperature ranges. This approach prevents overheating, which can lead to performance throttling, data corruption, and even system failures. By minimising temperature fluctuations, servers consistently perform at their peak capacity, resulting in improved application performance, faster processing times, and enhanced overall system stability.
- Extended Equipment Lifespan: Excessive heat degrades electronic equipment and shortens its lifespan. Cold aisle containment addresses this issue by creating a controlled and cooler environment. By reducing thermal stress on servers and other IT equipment, cold aisle containment extends their operational lifespan. This delay in hardware replacements translates into significant savings in capital expenditure (CAPEX) over time, leading to a better return on investment in IT infrastructure and reducing the frequency of disruptive hardware refresh cycles.
Key Considerations When Designing a Cold Aisle Containment System
When implementing cold aisle containment to enhance Data Centre cooling efficiency and reduce energy consumption, it’s crucial to consider several key factors to guarantee optimal performance and avoid potential pitfalls. These considerations encompass both the physical design and operational aspects of the containment solution:
- Aisle Width: The width of the cold aisle is a critical dimension. It should be precisely calibrated to strike a balance between efficient cooling and practical accessibility. Typically, these aisles are 1200mm wide but in high density computing applications can be 1800mm wide.
- Rack Height and Layout: The cold aisle containment solution must seamlessly integrate with the existing rack infrastructure. The height of the racks, their depth, and overall layout within the row are all influential factors. Generic containment solutions may not be suitable for non-standard rack configurations. In this instance, a bespoke aisle containment system takes this into consideration by using custom infill panels. Consider other potential obstructions, such as cable trays or power distribution units (PDUs), that could interfere with the installation or effectiveness of the containment. Customisation may be necessary to achieve optimal performance in challenging environments.
- Ceiling Design (if applicable): If employing a ceiling-based cold aisle containment solution, the integrity of the seal is paramount. Any gaps or leaks in the ceiling panels, around light fixtures, or along the perimeter will allow conditioned cold air to escape into the surrounding hot aisle, diminishing the overall cooling efficiency.

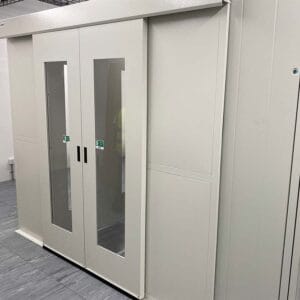

- Door Mechanisms: Doors are a crucial element of cold aisle containment, serving as the primary access point. They must be meticulously designed to fulfil two seemingly contradictory requirements: maintaining airtight containment and providing easy access for personnel and equipment. Automated doors with sensors or manual doors with tight seals are viable options. The choice depends on the specific needs of the Data Centre. The reliability of the door mechanism is vital to the stability and operational life of the doors.
- Integration with Existing Infrastructure: Installing cold aisle containment in an operational Data Centre requires careful planning to minimise disruption. The new system must integrate seamlessly with existing infrastructure components, including cabling, power distribution, cooling systems, and monitoring equipment. Compatibility is key. Conduct a thorough assessment of existing infrastructure to identify any potential conflicts or limitations. Plan for any necessary modifications or adaptations to ensure a smooth and efficient integration process. Consider the impact on existing cooling pathways and adjust the infrastructure accordingly.
- Safety Features: Data Centre safety is non-negotiable. Fire suppression systems within the cold aisle must be fully functional and unimpeded by the containment structure. Consider the impact of the containment on airflow and smoke detection and adjust the fire suppression system as necessary to ensure adequate coverage. The use of FM approved roof panels complies with relevant safety regulations and drop away to provide access for fire suppression systems.
- Scalability: Data Centres are dynamic environments, constantly evolving to meet changing business needs. The cold aisle containment solution should be scalable to accommodate future growth and changes in rack density, equipment configurations, and cooling requirements. Choose a modular containment system that can be easily expanded or reconfigured as needed.
Cold Aisle Containment vs. Hot Aisle Containment
When it comes to optimising Data Centre cooling, both cold aisle and hot aisle containment methods focus on enhancing airflow efficiency. However, these two techniques differ in their specific implementation:
- Cold Aisle Containment: As we have discussed, in this strategy the cold air supply is confined to the cold aisle. By isolating the cold air path, this approach ensures a more consistent and controlled delivery of cold air to the server intakes. This improved airflow predictability leads to better cooling performance and potential energy savings. Additionally, cold aisle containment tends to be easier to implement compared to hot aisle containment, as it typically requires fewer modifications to the existing infrastructure.
- Hot Aisle Containment: This method involves isolating and containing the hot air that is exhausted from servers within the hot aisle. The objective is to prevent the mixing of hot and cold air streams. The hot exhaust air is directed into ducts to return it to the cooling units. Hot aisle containment (HAC) can offer high cooling efficiency, but it might necessitate more extensive infrastructure changes. Another advantage with HAC surrounds cooling redundancy. As the room is filled with cold air IT equipment can be cooled for longer if cooling systems temporarily fail.
While both strategies have their merits, cold aisle containment is generally the preferred approach. This is because it offers a more straightforward implementation process and ensures better control over cold air delivery to the server intakes. Nevertheless, the choice between cold aisle and hot aisle containment will depend on the specific Data Centre’s needs and existing infrastructure. Ultimately, both methods aim to promote optimisation in airflow distribution and maintain a positive environment that supports optimal server performance and energy efficiency.
Conclusion
In conclusion, we believe that cold aisle containment is a transformative solution that plays a pivotal role in enhancing the efficiency and performance of Data Centres. Throughout this article, we explored what cold aisle containment is, its significance in maintaining optimal airflow, and how it integrates into your Data Centre infrastructure to improve energy efficiency and reduce operational costs.
We also discussed critical considerations for designing an effective containment system and clarified the essential differences between cold aisle and hot aisle containment strategies. By implementing a well-thought-out cold aisle containment system, you can profoundly impact your Data Centre’s functionality and longevity, ensuring it meets the growing demands of today’s digital landscape.
For a deeper dive into best practices and innovative solutions, explore our resources or contact us today. Thank you for joining us in this exploration of cold aisle containment—here’s to optimising your Data Centre for maximum performance!
