Enlogic EN1000 Series iPDU | Input Metered PDU

Advanced Intelligent PDUs

iPDUs for the Data Centre and Enterprise IT Environments

Enlogic Advantage Series iPDUs are a range of Single and 3-Phase intelligent PDUs that offer industry-leading features and designed for Data Centres and Enterprise IT environments.

• EN1000 Series – Entry point iPDU providing Input Metering that provides overall energy metering of the entire PDU.
• EN2000 Series – Takes the features of the EN1000 Series and adds Outlet Switching enabling the remote switching on/off of individual outlets.
• EN5000 Series – The EN5000 Series, as well as providing Input Metering, provides Outlet Metering enabling power and energy metering at each individual outlet on the PDU.
• EN6000 Series – The top iPDU in the Advantage Series. The EN6000 Series offers Input Metering, Outlet Metering and Outlet Switching.

Enlogic iPDUs offer an ultralow profile design that provides easy equipment access. They provide high-accuracy metering of V, A, AV, W, kWh and pf with billing-grade metering accuracy tested to ISO/IEC 62053-21 (± 1%) standard. With advanced networking via a primary Gigabit Ethernet connection with a 10/100 Ethernet connection for redundancy, it provides futureproof dual network access with high bandwidth cascading. To save IP addresses and for easier management Enlogic iPDUs feature IP Cascading enabling up to 64 PDUs to be managed through a single IP address. With two-way DC power sharing for an always-on network management and alarms. Outlets are colour coded by circuit breaker providing visual phase and load bank identification for reduced human error.

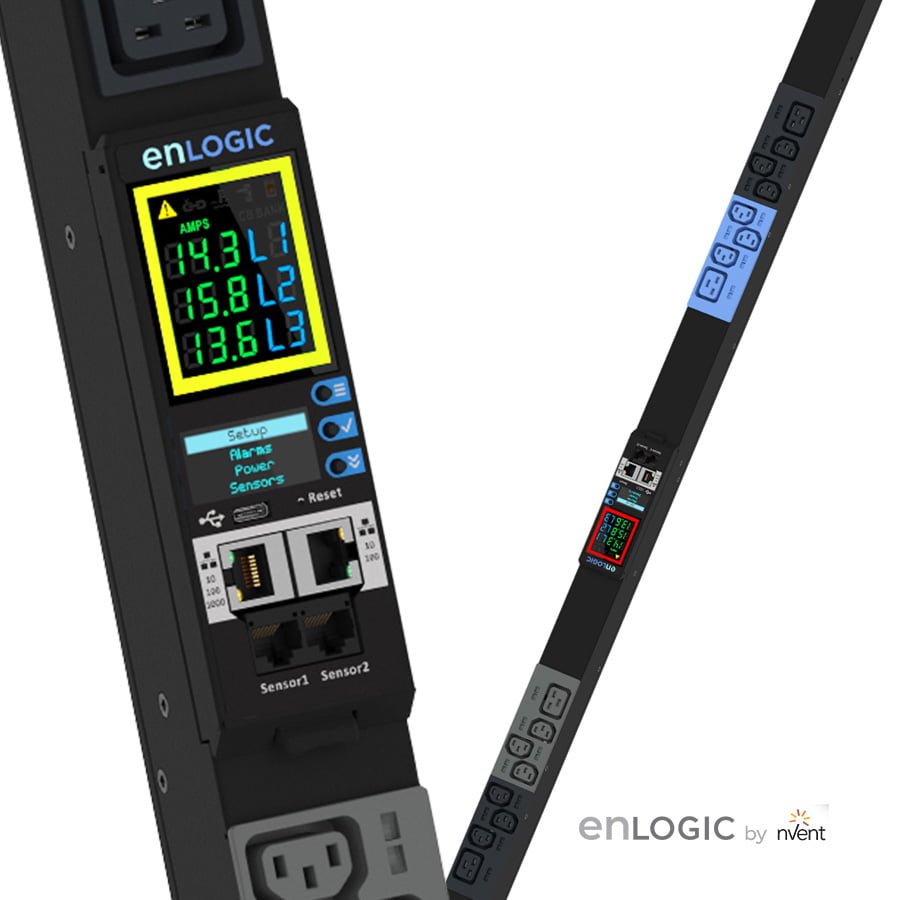

Tool-less Hot-Swap Network Management Controller (NMC)

The Enlogic Advantage Series features a NMC that is Hot-Swappable without the use of any tools for maximum availability and for future upgrades. It also enables the display to be rotated to enable top or bottom mounting orientation. The NMC features a large, high-visibility display that has user-defined electronic colour coding for easy power source identification. The display shows power data at both Phase and CB levels and displays critical alarm icons for PDU alarm, Cascade Error, Environmental Alarm, Security Alarm and Circuit Breaker alarm, whilst and interactive display provides access to menus for Setup, Alarms, Power and Sensors. The NMC uses the best-in-class ARM A5 microprocessor and a powerful Linux OS platform. With remote connectivity via HTTPS, SNMP, JSON or SSH. The advanced React web platform provides data efficient desktop and native mobile device support.

Enlogic Advantage Series iPDUs can be easily integrated with most DCIM software applications including Sunbird, FNT, Nlyte Software, StruxureWare, Tuangru, iTracs and Smartzone.

Combo Outlets for greater flexibility and futureproofing

Enlogic Advantage iPDUs utilise the latest combination outlets for greater flexibility and power requirement futureproofing. 2-in1 outlets provide compatibility with C13 and C15 connections, whilst 4-in-1 outlets support C13, C19, C15 and C21.

Enlogic’s 2-way locking IEC power cords provide protection against accidental power loss of your attached IT equipment when used with any Enlogic PDU. A small tab fits into the IEC C13 or C19 outlet on any Enlogic PDU providing an error-proof locking mechanism.

Environmental & Security Management

Enlogic PDUs can directly connect and manage up to 10 “plug-and-play” environmental and security management devices these include:

• Temperature & Humidity (EA9103 / EA9105)
• Temperature Sensor (EA9102)
• Security eHandle (EA9500 / EA9502)
• Rope Leak Sensor (EA9112)
• Door Open / Close Sensor (EA9109)
