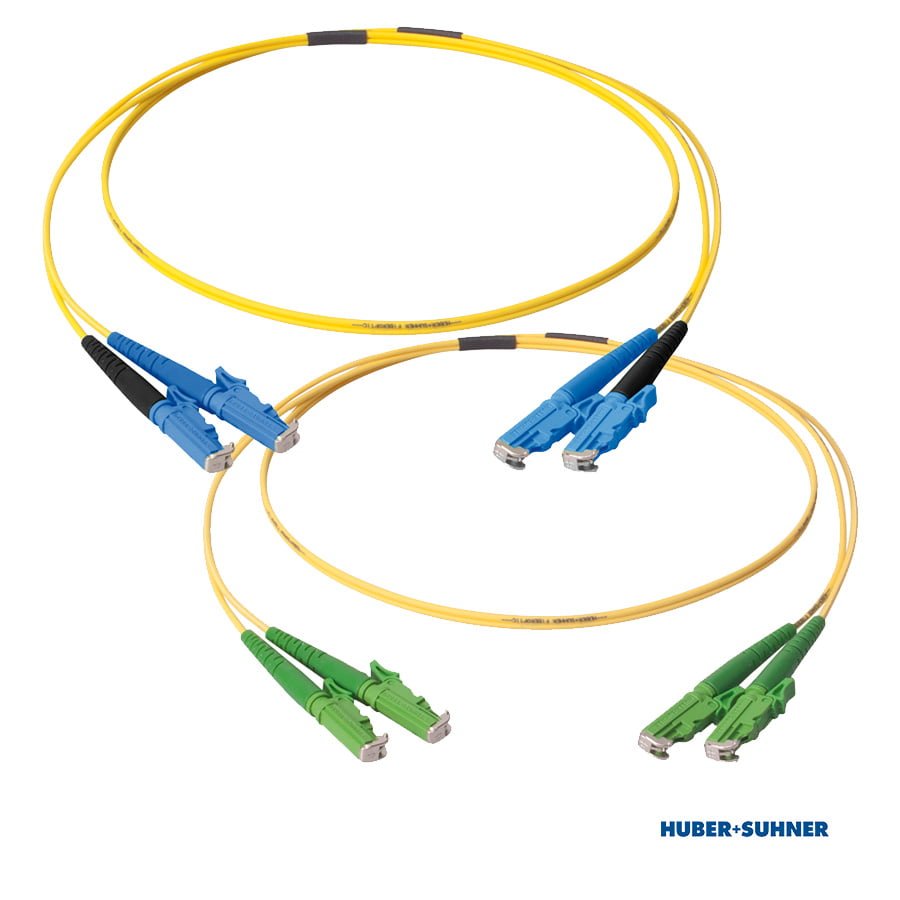

HUBER+SUHNER Single Mode E2000 Duplex fibre cords are available in lengths from 1m to 10m with APC or UPC connectors
HUBER+SUHNER E2000 Duplex Patch Cords
Single Mode high-performance E2000 Duplex fibre patch cords
HUBER+SUHNER E2000 Duplex patch cords utilise a high-performance E2000 UPC or APC connector that meet the international standards IEC 61754-15 and TIA 604-16 and are naturally RoHS compliant.
The E2000 connector is a high-performance connector that meets the highest standards by excellence in design and manufacturing processes. The unique shutter protects the pin from pollution and increases personal safety.
HUBER+SUHNER Single Mode E2000 Duplex patch cords feature a latched push-pull connector with an automatic metal shutter that ensures all the optical functional parts are protected. The high-performance connector has a one-piece design for easy termination. A clip is also available for duplex setup, with polarity flipping also possible without the aid of tools.
Available in lengths from 1m to 10m all cables are low smoke and free of halogen (LSFH) with an E2000 Simplex version also available.
Characteristics of HUBER+SUHNER LSH E2000 Duplex Patch Cords
- Latched push-pull connector.
- Automatic metal shutter for dust protection and laser safety.
- All optical functional parts are protected.
- High performance connector.
- One-piece design for easy termination.
- Clip available for duplex setup, polarity flipping without tool.
- Cable low smoke and free of halogen (LSFH).
- Trademark E-2000.
- Available in various lengths from 1m to 10m.
Specifications
Specifications
Technical Data
| Cable Diameter (Ø) | Fig.8, 2.0mm |
|---|---|
| Design acc. to IEC 61754-15 and TIA 604-16 | Compliant |
| Thermal & Mechanical Tests acc. to IEC 61753-1 | Fulfilled |
| Side load acc. to GR-326-CORE | Fulfilled |
| Tensile Load | 2 x 100N |
| Operating Temperature | -25 to +70°C |
| Durability | Min. 1000 mating cycles |
| Material | Flame retardant acc. to UL 94 V-0 |
| Halogen Free | Yes |
| Chemical Resistance | Good |
| RoHS Guidelines 2011/65/EU | Compliant |
Optical Values
| Measurement method (IL/RL) | IL (dB) | RL (dB) | |
|---|---|---|---|
| SM UPC | IL: IEC 61300-3-4 method B RL: IEC 61300-3-6 | ≤ 0.30 | ≥ 50 |
| SM APC | ≥ 65 |
Part Numbers
Part Numbers
Singlemode UPC, E2000 (LSH) Duplex Patch Cords
| Part Number | Description |
|---|---|
| 85031419 | 1m Singlemode UPC, E2000 (LSH) Duplex, Fig. 8, 2.0 mm yellow G.652D cable, Patch Cords |
| 85031421 | 2m Singlemode UPC, E2000 (LSH) Duplex, Fig. 8, 2.0 mm yellow G.652D cable, Patch Cords |
| 85031422 | 3m Singlemode UPC, E2000 (LSH) Duplex, Fig. 8, 2.0 mm yellow G.652D cable, Patch Cords |
| 85031423 | 5m Singlemode UPC, E2000 (LSH) Duplex, Fig. 8, 2.0 mm yellow G.652D cable, Patch Cords |
| 85031424 | 7m Singlemode UPC, E2000 (LSH) Duplex, Fig. 8, 2.0 mm yellow G.652D cable, Patch Cords |
| 85031425 | 10m Singlemode UPC, E2000 (LSH) Duplex, Fig. 8, 2.0 mm yellow G.652D cable, Patch Cords |
Singlemode APC, E2000 (LSH) Duplex Patch Cords
| Part Number | Description |
|---|---|
| 85031449 | 1m Singlemode APC, E2000 (LSH) Duplex, Fig. 8, 2.0 mm yellow G.652D cable, Patch Cords |
| 85031450 | 2m Singlemode APC, E2000 (LSH) Duplex, Fig. 8, 2.0 mm yellow G.652D cable, Patch Cords |
| 85031451 | 3m Singlemode APC, E2000 (LSH) Duplex, Fig. 8, 2.0 mm yellow G.652D cable, Patch Cords |
| 85031452 | 5m Singlemode APC, E2000 (LSH) Duplex, Fig. 8, 2.0 mm yellow G.652D cable, Patch Cords |
| 85031453 | 7m Singlemode APC, E2000 (LSH) Duplex, Fig. 8, 2.0 mm yellow G.652D cable, Patch Cords |
| 85031454 | 10m Singlemode APC, E2000 (LSH) Duplex, Fig. 8, 2.0 mm yellow G.652D cable, Patch Cords |
