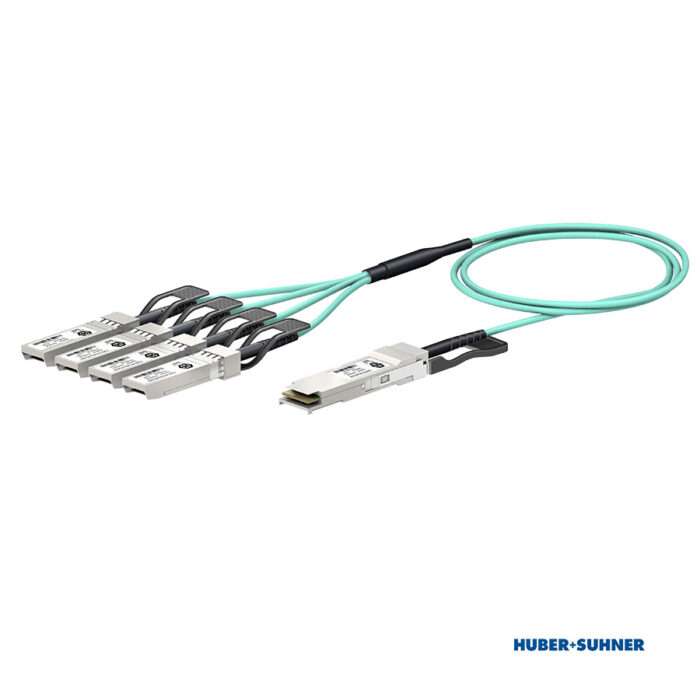

HUBER+SUHNER CQA-804A is a 4x 10G AOC breakout transceiver cable that uses a QSFP+ transceiver to 4x SFP+ transceivers and Multi Mode fibre cabling. Available in lengths from 0.5m to 50m
4x 10G AOC Transceiver Cable
HUBER+SUHNER a leading manufacturer of fibre optic solutions, produce a 4x 10G AOC cable (CSA-801A) that is a breakout transceiver cable and offers data rates of 4x 9.8 Gb/s to 4x 11.3Gb/s using a QSFP+ transceiver to 4x SFP+ transceivers. This Active Optical Cable is available in lengths of 0.5m to 50m.
Part of their transceiver range, transceiver cables have transceivers fixed to a cable whereas a “normal” transceiver requires a separate fibre connection using fibre patch cords or jumper cables.
AOC cables utilise Multi Mode fibre cable that is thinner than the copper cable used in DAC (Direct Attach Cable) transceiver cables, which while more cost effective are only suitable for short distances. They are also heavier and require more space due to the thickness of the cable. Because AOC cables use fibre cable they are much lighter and more compact. They also have a longer reach and can handle higher data rates.
How to use it
- MSA compliant Active Optical Cable
- Transceiver modules are permanently attached to cable
- Choose coding according to equipment vendor
- Configure each side individually
Features & Benefits
Features & Benefits
- Multi-protocol support
- Data rate 4x 9.8 Gbps to 4x 11.3 Gbps
- QSFP+ to 4x SFP+
- Cable length from 0.5 to 50m
- Multi Mode Fibre
- Temperature Range 0 … 70°C
- Power consumption <2.9 W (<1.5 W for 40G terminal, <0.35 W per 10G terminal)
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 85240682 | H+S CSA-804A_0010 – 1m 4x 10G Active Optical Cable, QSFP+ to 4x SFP+, 40G/10G Ethernet, Multi Mode Fibre, Turquoise |
| 85240683 | H+S CSA-804A_0020 – 2m 4x 10G Active Optical Cable, QSFP+ to 4x SFP+, 40G/10G Ethernet, Multi Mode Fibre, Turquoise |
| 85240684 | H+S CSA-804A_0030 – 3m 4x 10G Active Optical Cable, QSFP+ to 4x SFP+, 40G/10G Ethernet, Multi Mode Fibre, Turquoise |
| 85240685 | H+S CSA-804A_0050 – 5m 4x 10G Active Optical Cable, QSFP+ to 4x SFP+, 40G/10G Ethernet, Multi Mode Fibre, Turquoise |
