More About This Product
The HUBER+SUHNER Single Mode LC Classic Simplex fibre patch leads are a simplex version of the Single Mode LC Classic Duplex patch cords and utilise a classic standard clip mechanism.
SKU: N/ACategories: Connectivity, Fibre Cabling, Fibre Patch Cords

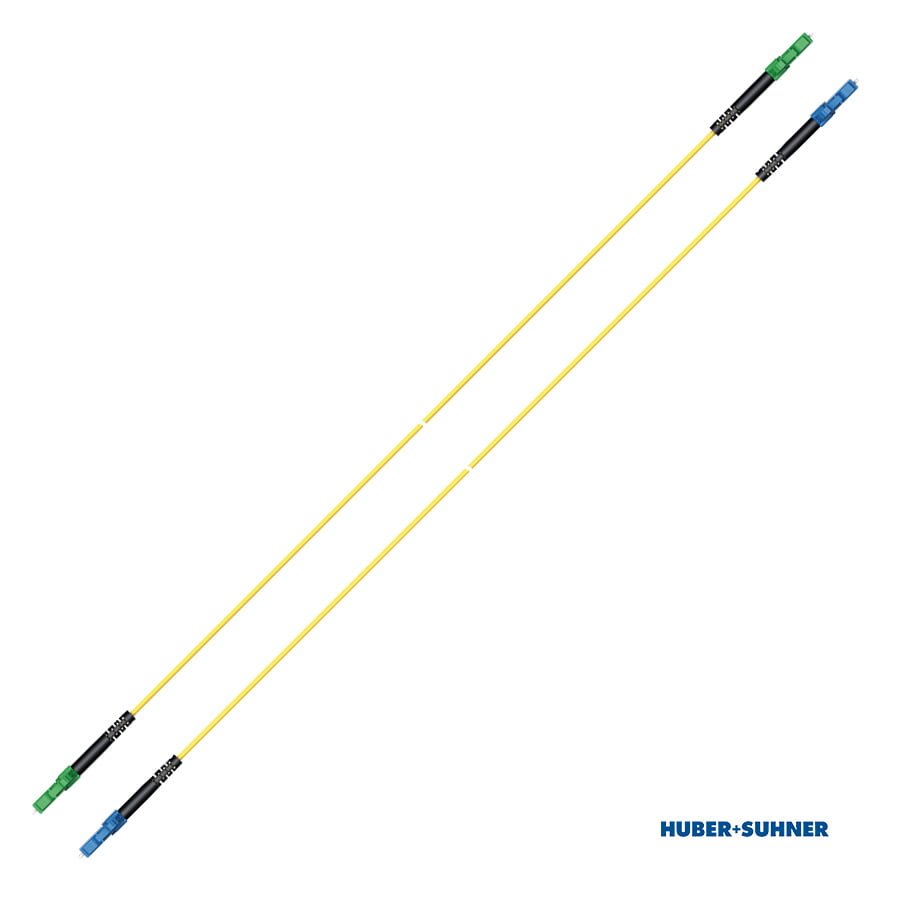

HUBER+SUHNER LC Classic Simplex Patch Leads
Single Mode LC Classic Simplex fibre patch leads with APC or UPC connectors
HUBER+SUHNER Single Mode LC Classic Simplex patch leads are LSFH classic simplex patch cables that are available with APC or UPC connectors in various lengths from 1m to 10m.
These patch leads feature a classic standard LC clip mechanism that has a solid unibody design to improve the mechanical strength. All use cable that is low smoke and free of halogen (LSFH). A Multi-Mode OM4 version is also available.
Characteristics of the HUBER+SUHNER LC Classic Simplex Fibre Patch Leads
- Standard clip mechanism.
- Solid unibody design to improve mechanical strength.
- Cable low smoke and free of halogen (LSFH).
- Available in various lengths from 1m to 10m.
Specifications
Specifications
Technical Data
| Cable Diameter (Ø) | 2.0mm |
|---|---|
| Design acc. to IEC 61754-20 and TIA 604-10-A | Compliant |
| Thermal & Mechanical Tests acc. to IEC 61753-1 | Fulfilled |
| Side load acc. to GR-326-CORE | Fulfilled |
| Tensile Load | 100N |
| Operating Temperature | -20 to +70°C |
| Durability | Min. 1000 mating cycles |
| Material | Flame retardant acc. to UL 94 V-0 |
| Halogen Free | Yes |
| Chemical Resistance | Good |
| RoHS Guidelines 2011/65/EU | Compliant |
Optical Values
| Measurement method (IL/RL) | IL (dB) | RL (dB) | |
|---|---|---|---|
| SM UPC | IL: IEC 61300-3-4 method B RL: IEC 61300-3-6 | ≤ 0.30 | ≥ 50 |
| SM APC | ≥ 65 | ||
| MM OM3 | IL: IEC 61300-3-34 method C RL: IEC 61300-3-6 | ≤ 0.50* | ≥ 35 |
| MM OM4 | ≤ 0.30* |
*Measurement of the whole assembly
Part Numbers
Part Numbers
Singlemode UPC, LC Classic Simplex Patch Cords
| Part Number | Description |
|---|---|
| 85030977 | 1m Singlemode UPC, LC Classic Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cords |
| 85030978 | 2m Singlemode UPC, LC Classic Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cords |
| 85030979 | 3m Singlemode UPC, LC Classic Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cords |
| 85030980 | 5m Singlemode UPC, LC Classic Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cords |
| 85030981 | 7m Singlemode UPC, LC Classic Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cords |
| 85030982 | 10m Singlemode UPC, LC Classic Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cords |
Singlemode APC, LC Classic Simplex Patch Cords
| Part Number | Description |
|---|---|
| 85030983 | 1m Singlemode APC, LC Classic Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cords |
| 85030984 | 2m Singlemode APC, LC Classic Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cords |
| 85030985 | 3m Singlemode APC, LC Classic Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cords |
| 85030986 | 5m Singlemode APC, LC Classic Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cords |
| 85030987 | 7m Singlemode APC, LC Classic Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cords |
| 85030988 | 10m Singlemode APC, LC Classic Simplex, 2.0 mm yellow G.657.A2 cable, Patch Cords |
