More About This Product

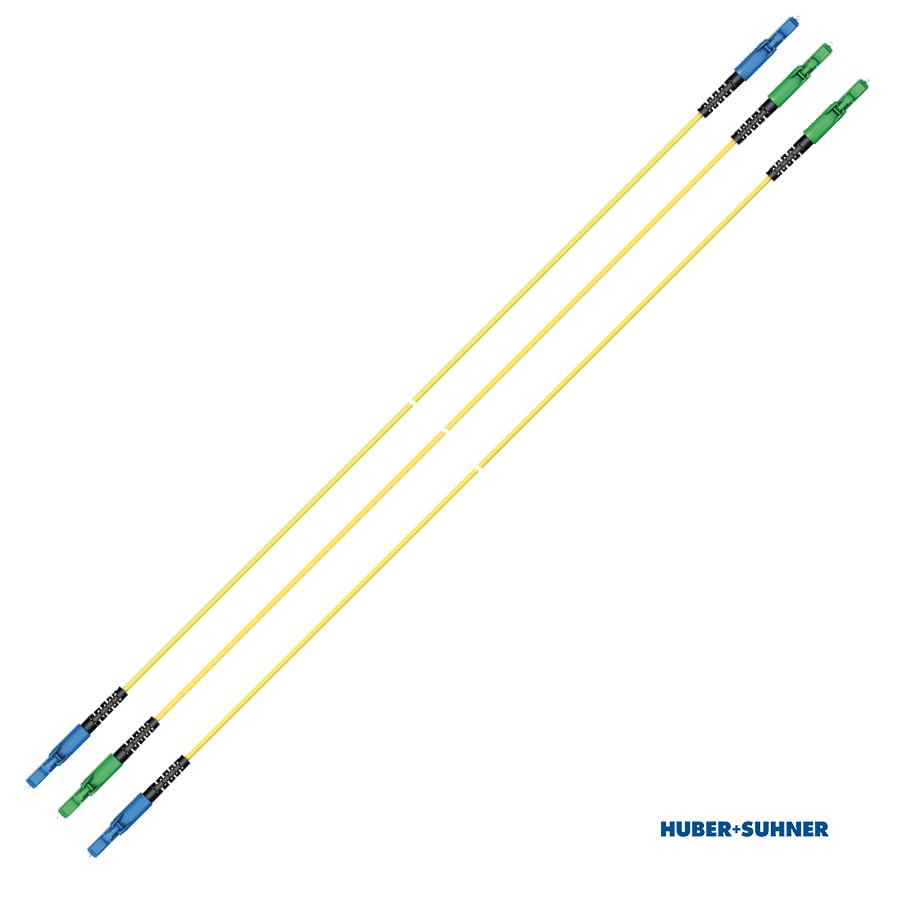

The Single Mode LC Push-Pull Simplex fibre patch cables from HUBER+SUHNER are available in various lengths with APC, UPC or UPC/APC connectors. The push-pull design offers excellent handling and high packing densities.
HUBER+SUHNER LC Push-Pull Simplex Fibre Patch Cables
LC Simplex APC, UPC or UPC/APC Single Mode fibre patch cables
HUBER+SUHNER’s Single Mode LC Push-Pull Simplex fibre patch cables are a simplex version of the Single Mode LC Push-Pull Duplex patch cords. The patented (US 8.221.007) push-pull mechanism, which has a solid unibody design for enhanced mechanical strength, offers excellent handling even in the highest packing densities.
The Single Mode LC Push-Pull Simplex fibre patch cable is available with APC, UPC or UPC/APC connectors in various lengths from 1m to 10m (except the UPC/APC where the maximum length is 5m) with a cable diameter of 2.0mm that is low smoke and free from halogen (LSFH). This Simplex patch cord is also available in a Multi-Mode OM4 version.
Characteristics of the HUBER+SUHNER LC Push-Pull Simplex Fibre Patch Cables
- Push-pull mechanism for best handling and highest packing density.
- Patented (US 8.221.007).
- Solid unibody design to improve mechanical strength.
- Short rigid length.
- Cable low smoke and free of halogen (LSFH).
- Available in various lengths from 1m to 10m†.
† Expect Single Mode UPC/APC patch cord. Maximum Length 5m.
Specifications
Specifications
Technical Data
| Cable Diameter (Ø) | 2.0mm |
|---|---|
| Design acc. to IEC 61754-20 and TIA 604-10-A | Compliant |
| Thermal & Mechanical Tests acc. to IEC 61753-1 | Fulfilled |
| Side load acc. to GR-326-CORE | Fulfilled |
| Tensile Load | 100N |
| Operating Temperature | -20 to +70°C |
| Durability | Min. 1000 mating cycles |
| Material | Flame retardant acc. to UL 94 V-0 |
| Halogen Free | Yes |
| Chemical Resistance | Good |
| RoHS Guidelines 2011/65/EU | Compliant |
Optical Values
| Measurement method (IL/RL) | IL (dB) | RL (dB) | |
|---|---|---|---|
| SM UPC | IL: IEC 61300-3-4 method B RL: IEC 61300-3-6 | ≤ 0.30 | ≥ 50 |
| SM APC | ≥ 65 | ||
| MM OM3 | IL: IEC 61300-3-34 method C RL: IEC 61300-3-6 | ≤ 0.50* | ≥ 35 |
| OM4 | ≤ 0.30* |
* Measurement of the whole assembly
Part Numbers
Part Numbers
Singlemode UPC, LC Push-Pull Simplex Patch Cords
| Part Number | Description |
|---|---|
| 85030935 | 1m Singlemode UPC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
| 85030936 | 2m Singlemode UPC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
| 85030937 | 3m Singlemode UPC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
| 85030938 | 5m Singlemode UPC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
| 85030939 | 7m Singlemode UPC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
| 85030940 | 10m Singlemode UPC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
Singlemode APC, LC Push-Pull Simplex Patch Cords
| Part Number | Description |
|---|---|
| 85030941 | 1m Singlemode APC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
| 85030942 | 2m Singlemode APC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
| 85030943 | 3m Singlemode APC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
| 85030944 | 5m Singlemode APC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
| 85030945 | 7m Singlemode APC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
| 85030946 | 10m Singlemode APC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
Singlemode UPC/APC, LC Push-Pull Simplex Patch Cords
| Part Number | Description |
|---|---|
| 85089879 | 1m Singlemode UPC/APC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
| 85089880 | 2m Singlemode UPC/APC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
| 85089881 | 3m Singlemode UPC/APC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
| 85089882 | 5m Singlemode UPC/APC, LC Push-Pull, 2.0 mm yellow G.657.A2 cable, Simplex Patch Cord |
