More About This Product
The Single Mode LC Uniboot UPC Duplex fibre patch lead from HUBER+SUHNER has a sophisticated design for easy termination.
SKU: N/ACategories: Connectivity, Fibre Cabling, Fibre Patch Cords
LC Uniboot Duplex Patch Leads

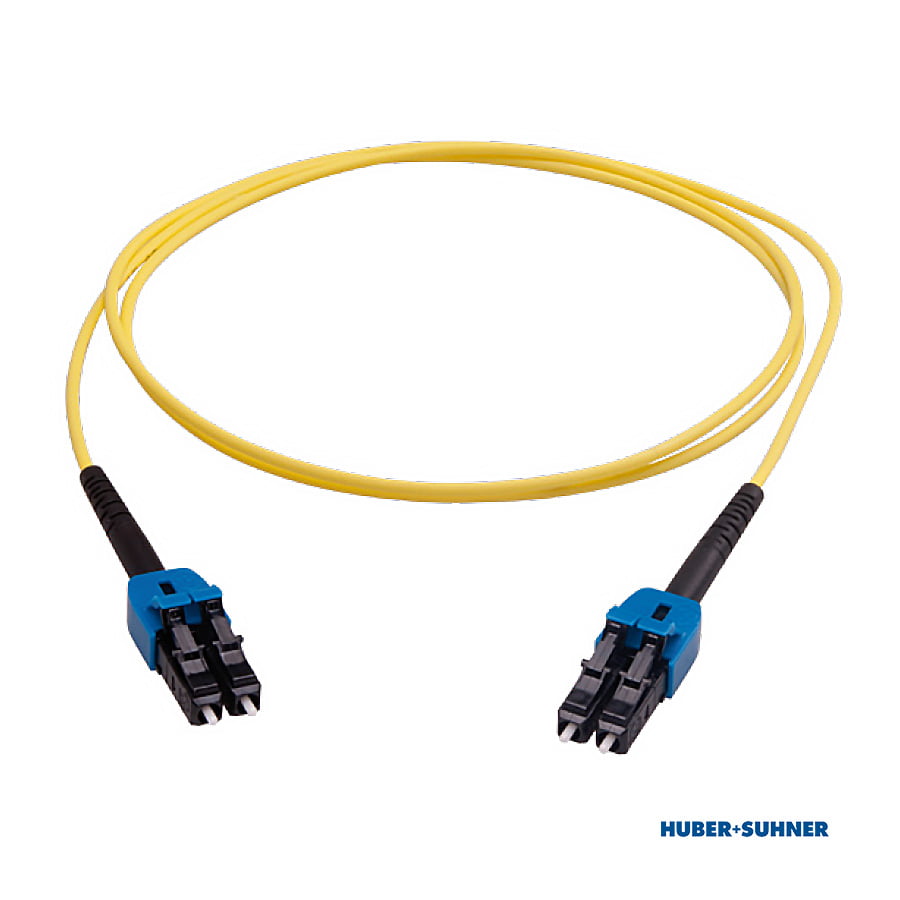

Single Mode LC Uniboot UPC Duplex fibre patch leads
HUBER+SUHNER’s Single Mode LC Uniboot UPC Duplex fibre patch leads have a sophisticated design and utilise a standard clip mechanism for easy termination. Handling is further improved thanks to the connector’s short rigid length. The LC Uniboot UPC Duplex patch leads provide two LC connections in one SC-shaped adapter that is compatible with standard (6.25mm) and mini LC (5.25mm) adapters and transceivers.
These fibre patch leads use cable that is low smoke and free of halogen (LSFH) and are available in four lengths: 0.5, 0.7, 1.0 and 1.5m.
Characteristics of HUBER+SUHNER LC Uniboot Duplex Fibre Patch Leads
- Standard clip mechanism.
- Sophisticated design for easy termination.
- Short rigid length.
- Two connections in one SC-shaped adapter.
- Polarity flipping without tool.
- Compatible to standard (6.25mm) and mini LC (5.25mm) adapters and transceivers.
- Cable low smoke and free of halogen (LSFH).
- Available in four lengths: 0.5, 0.7, 1 and 1.5m.
Specifications
Specifications
| Cable Diameter (Ø) | 2.1mm |
|---|---|
| Design acc. to IEC 61754-20 and TIA 604-10-A | Compliant |
| Thermal & Mechanical Tests acc. to IEC 61753-1 | Fulfilled |
| Side load acc. to GR-326-CORE | Fulfilled |
| Tensile Load | 70N |
| Operating Temperature | -25 to +70°C |
| Durability | Min. 1000 mating cycles |
| Material | Flame retardant acc. to UL 94 V-0 |
| Halogen Free | Yes |
| Chemical Resistance | Good |
| RoHS Guidelines 2011/65/EU | Compliant |
Optical Values
| Measurement method (IL/RL) | IL (dB) | RL (dB) | |
|---|---|---|---|
| SM UPC | IL: IEC 61300-3-4 method B RL: IEC 61300-3-6 | ≤ 0.30 | ≥ 50 |
| SM APC | ≥ 65 | ||
| MM OM3 | IL: IEC 61300-3-34 method C RL: IEC 61300-3-6 | ≤ 0.50* | ≥ 35 |
| OM4 | ≤ 0.30* |
*Measurement of the whole assembly
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 84138001 | 0.5m Single-mode UPC, LC uniboot UPC duplex patch cord |
| 84125518 | 0.7m Single-mode UPC, LC uniboot UPC duplex patch cord |
| 84125519 | 1m Single-mode UPC, LC uniboot UPC duplex patch cord |
| 84138003 | 1.5m Single-mode UPC, LC uniboot UPC duplex patch cord |
