The Fujikura CT50 Fibre Cleaver is part of the range of fibre cleavers from Fujikura and offers increased operability and maintainability compared to any other cleaver on the market.

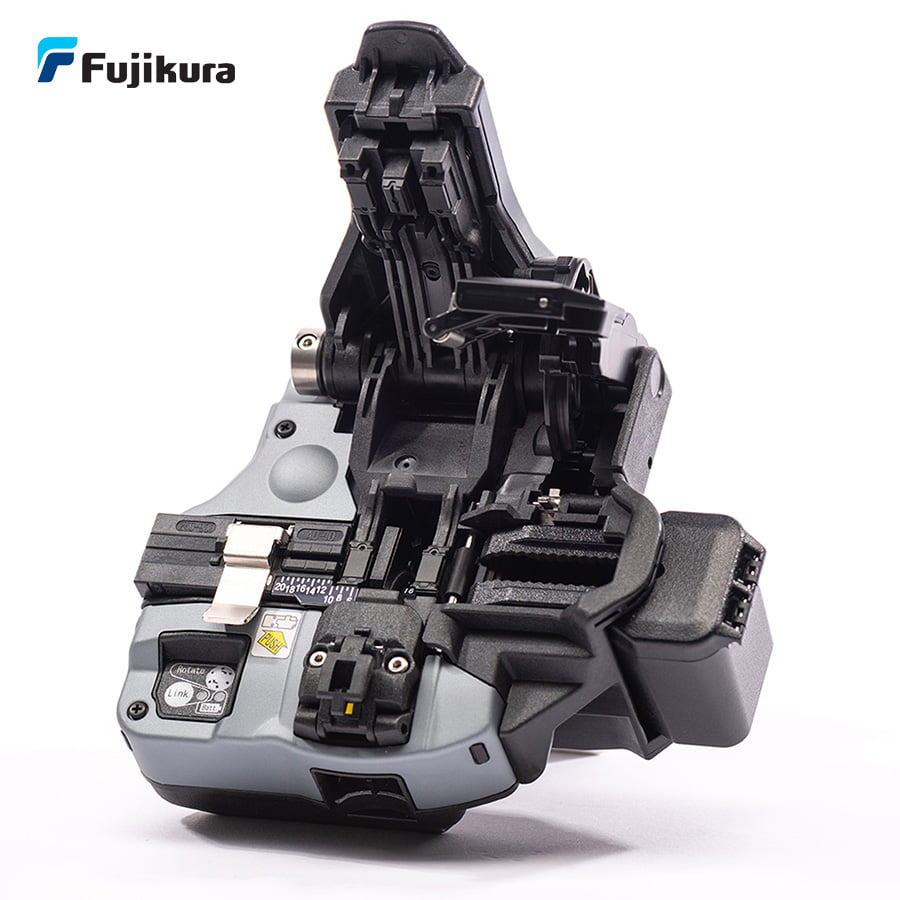

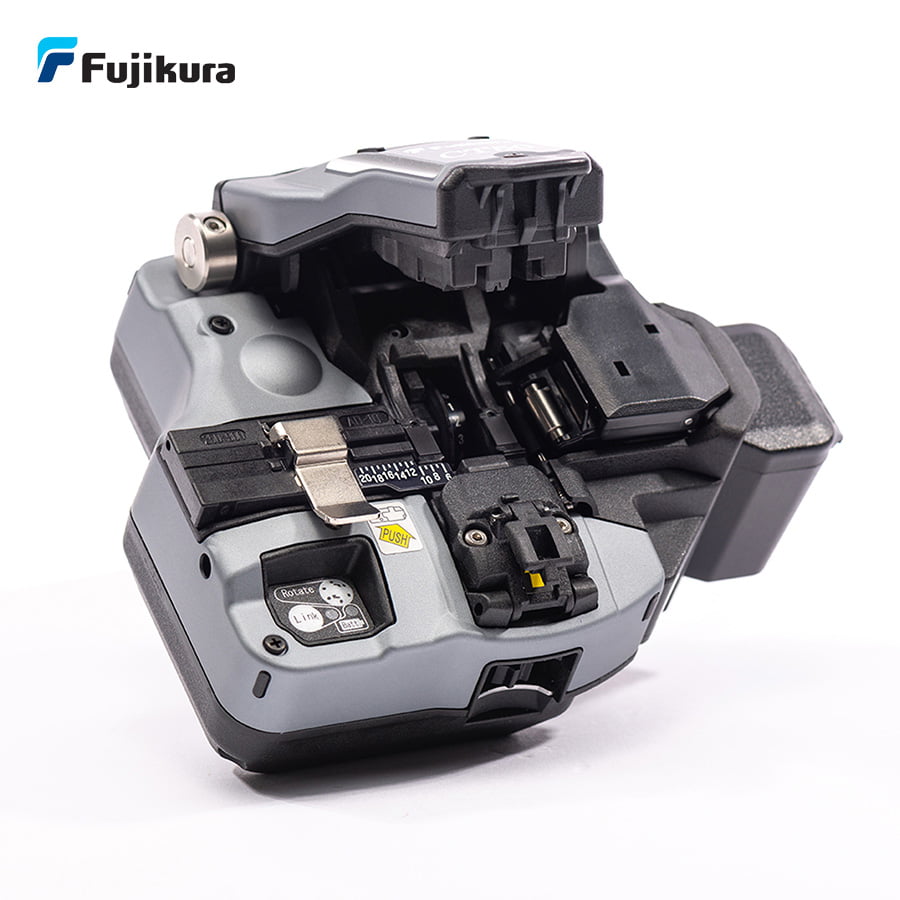

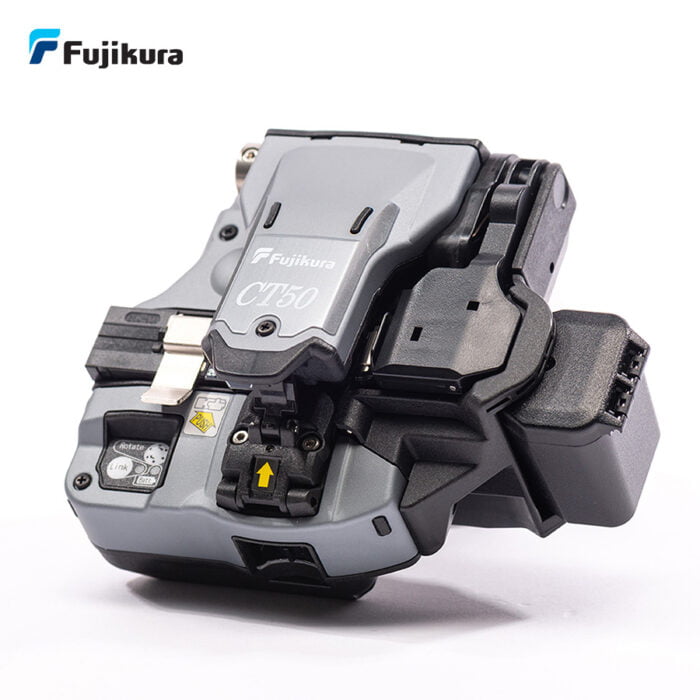

Fujikura CT50 Fibre Cleaver
Advanced fibre cleaver from Fujikura
The Fujkura CT50 fibre cleaver is an advanced and completely improved fibre cleaving product that makes operation and maintenance even easier than on previous models. The CT50 offers increased drop and impact resistance and makes it easier for operators to replace the cleaving blade and resin members that hold the optical fibres, greatly reducing the handling time and maintenance costs.
The Fujikura CT50 can cleave single fibres or bundles of up to 12 fibres, and being Bluetooth® enabled it can be connected to smartphones or other Bluetooth enabled splicing equipment within the Fujikura range, making it an ideal solution form customers looking to invest in a future-proof cleaving system. For instance when connected to the Fujikura 41S Active V-groove splicer, the splicer will monitor the quality of the cleave and instruct changes of angle or blade rotation directly to the cleaver saving time and increasing cleave quality.
Features & Benefits
Features & Benefits
- Applicable for single and up to 12-fibre cleaving.
- Highly robust unit
- Automatic, tool-less, cleaving blade rotation via wireless communication.
- User replaceable fibre clamps and cleaving blade.
- Wide lever opening angle allows easy fibre placement.
- Single-action operation including fibre scrap collection.
Specifications
Specifications
Applicable Optical Fibre | Silica optical fibres | |
---|---|---|
Fibre count | Up to 12 | |
Cladding Diameter | 125µm | |
Coating Diameter | 160µm to 900µm (2mm to 3mm cord & drop cable) | |
Cleaving Length | AD-50 | 5mm to 20mm (coating diameter = 250µm) 10mm to 20mm (coating diameter > 250µm) |
FH-xx- | 10mm (from the edge of FH: 13mm) | |
Cleaving Angle | Typical 0.5° | |
Blade Life | 60,000 fibres (1,250 fibres x 3 heights x 16 positions) | |
Wireless Connectivity | Bluetooth® 4.1 LE*1 | |
Power Supply | AAA (LR3) dry battery: 2pc | |
Dimensions | 120(W) x 95(D) x 58(H)mm | |
Weight | 320g | |
Operation Condition | 0 to 95% RH and 0 to 40°C (non-dew) | |
Storage Condition | 0 to 95% RH and -40 to 80°C (non-dew) | |
Resistance Feature*2 | Shock: 76cm (30”) all direction drop | |
Dust resistance: Exposure to dust (0.1 to 500µm dia. Alumina Silicate) | ||
Rain resistance: H=10mm/hr for 10min |
*1: The Bluetooth wireless connection of this product is not guaranteed to work with all smartphones or other devices.
2: Carried out in Fujikura labs in Japan. The shock resistance test does not guarantee the product will not be damaged under these conditions.
