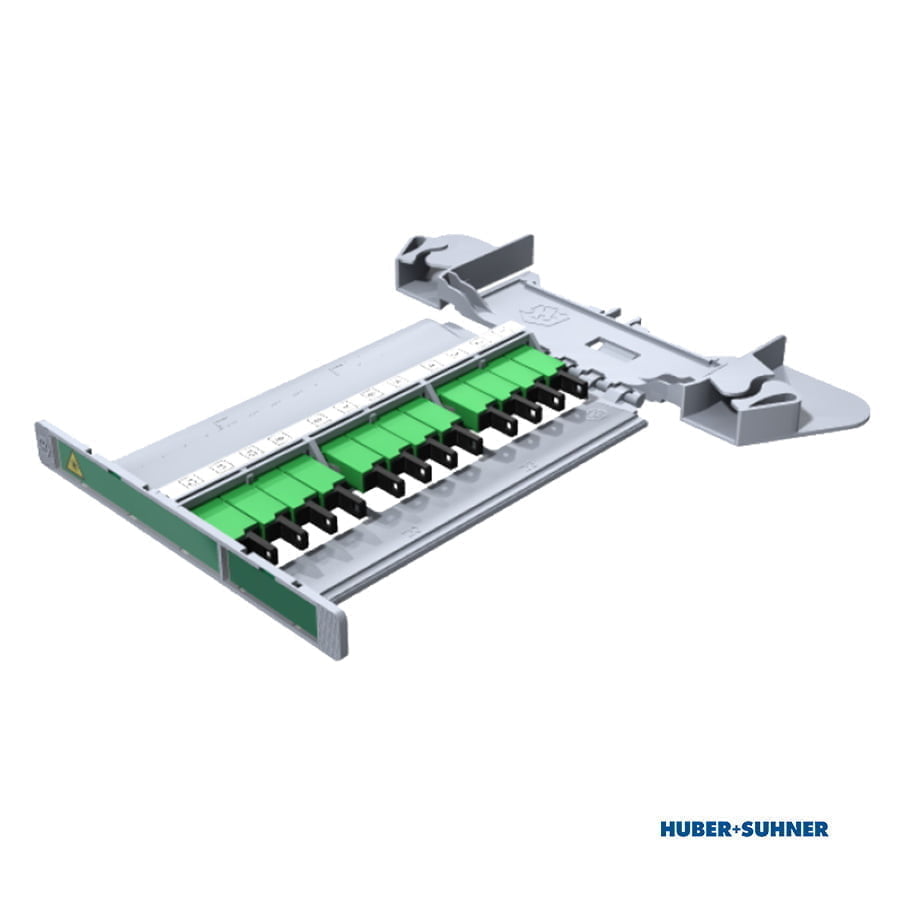

HUBER+SUHNER LISA Fibre Patching Tray with 12 X LSH E2000 Simplex, APC, Single Mode.
SKU: 85110782Categories: Connectivity, Fibre Cassettes | Fibre Trays, MMR Connectivity
HUBER+SUHNER LISA Patching Fibre Tray
12 x LSH Simplex (Green), APC, Single Mode
HUBER+SUHNER LISA patching fibre trays are designed to work with HUBER+SUHNER CDRs and ODFs.
The PT3-H-LSAS-12-A2-O patching tray is a LISA cassette for patching with hinge fitted. It provides 12 x LSH E2000 Simplex APC adaptors and is designed for Single Mode fibre connections.
Like the LISA splice trays and transition trays, patching trays are accessed from the front of the LISA ODFs allowing both sides of the patching tray to be accessed simply by pulling the cassette out. They are used to build a cross-connect system within the same distribution rack or between adjacent ODRs and servers.
Features & Benefits
Features & Benefits of H+S LISA Fibre Patching Trays
- LISA patch cassette for cross-connect configuration.
- Up to 12x LSH Simplex connectivity per cassette.
- Tool-less installation and clear labelling for quick identification / traceability.
- Cassette access from the front and side facing adapter alignment for higher laser safety.
- Patch cords horizontally supported and full 30mm bend-radius limitation throughout.
Specifications
Specifications
Mechanical Data
Characteristics | Values |
---|---|
Product family | LISA |
Suitable for | Patching |
Dimension (Width x Length x Height) | 259 x 241 x 19 (mm) / 10.2 x 9.5 x 0.7 (inch) |
Weight | 294g / 10.4 oz |
Number of Adaptor front (pcs) | 12 |
Adaptor type front | LSH E2000 |
Adaptor type front polishing | APC |
Adaptor colour front | Green |
Environmental Data
Characteristics | Values |
---|---|
Temperature resistance (min to max) | -40°C to 70°C / -40°F to 158°F |
UL Rating | UL 94 V-0 |
Chemical resistance | Yes |
UV resistance | Yes |
Resistance to impact | IK03 |
Free of halogen | Yes |
RoHS compliant | Yes |
REACH compliant | Yes |
Part Numbers
Part Numbers
Part Number | Description |
---|---|
85110782 | LISA patching cassette, 12 x E-2000 APC adapter, singlemode green |
