More About This Product

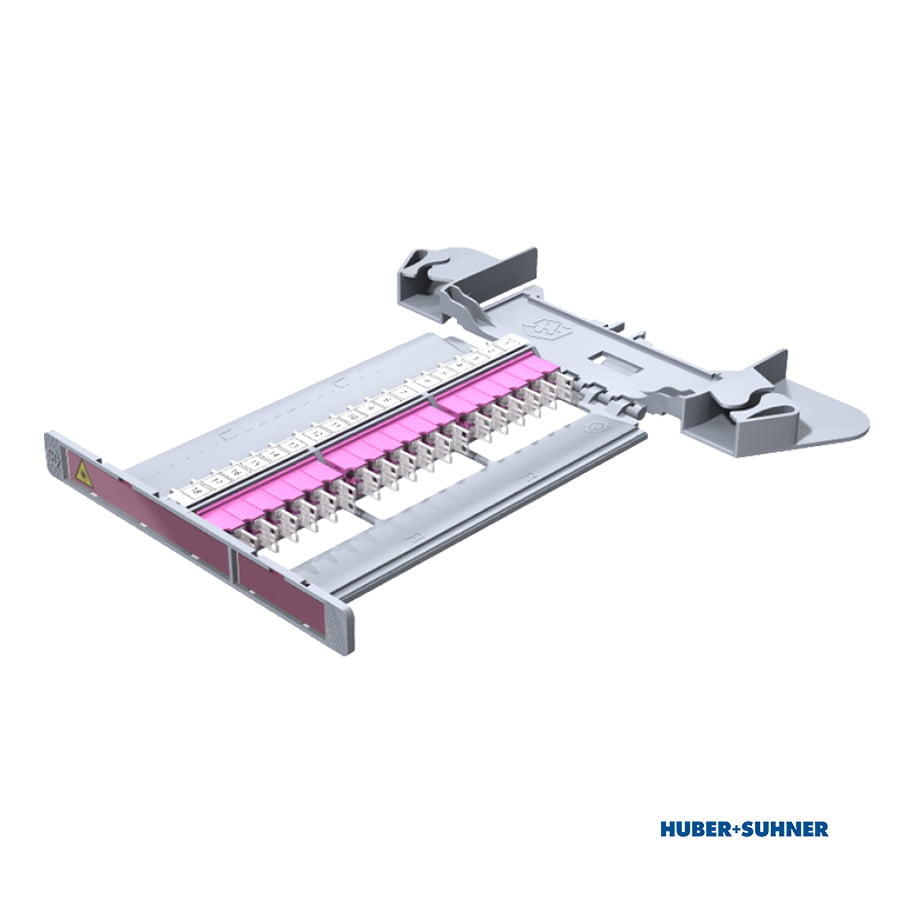

HUBER+SUHNER LISA Fibre Patching Tray with 18 X LC-Duplex, Heather Violet OM4, Multi Mode.

HUBER+SUHNER LISA Patching Fibre Tray

18 x LC Duplex (Heather Violet), Multi Mode OM4

HUBER+SUHNER LISA patching fibre trays are designed to work with HUBER+SUHNER CDRs and ODFs.

The PT3-H-LCMD-18-O4-O patching tray is a LISA cassette for patching with hinge fitted. It provides 18 x LC Duplex OM4 adaptors and is designed for Multi Mode fibre connections.

Like the LISA splice trays and transition trays, patching trays are accessed from the front of the LISA ODFs allowing both sides of the patching tray to be accessed simply by pulling the cassette out. They are used to build a cross-connect system within the same distribution rack or between adjacent ODRs and servers.

Features & Benefits

Features & Benefits of H+S LISA Fibre Patching Trays

  • LISA patch cassette for cross-connect configuration.
  • Up to 18x LC Duplex connectivity per cassette.
  • Tool-less installation and clear labelling for quick identification / traceability.
  • Cassette access from the front and side facing adapter alignment for higher laser safety.
  • Patch cords horizontally supported and full 30mm bend-radius limitation throughout.



Mechanical Data

Product familyLISA
Suitable forPatching
Dimension (Width x Length x Height)259 x 241 x 19 (mm) / 10.2 x 9.5 x 0.7 (inch)
Weight315g / 11.1 oz
Number of Adaptor front (pcs)18
Adaptor type frontLC
Adaptor colour frontHeather Violet


Environmental Data

Temperature resistance (min to max)-40°C to 70°C / -40°F to 158°F
UL RatingUL 94 V-0
Chemical resistanceYes
UV resistanceYes
Resistance to impactIK03
Free of halogenYes
RoHS compliantYes
REACH compliantYes

Part Numbers

Part Numbers

Part NumberDescription
85103008LISA patching cassette, 18 x LC Adapter, multimode heather violet
