HUBER+SUHNER LiSA Ribbon Fibre Cassette for Splicing with 12 X LCD adaptors (blue) for OS2 Single Mode fibre, UPC connectors and TIA colour code.
Ribbon Fibre Cassette for LiSA Cross Connect System
12 x LCD adaptor blue, OS2, UPC, TIA
HUBER+SUHNER LISA splice fibre trays are designed to work with HUBER+SUHNER CDRs and ODFs. As these are now in their third generation to be backwardly compatible it may require an additional adaptor.

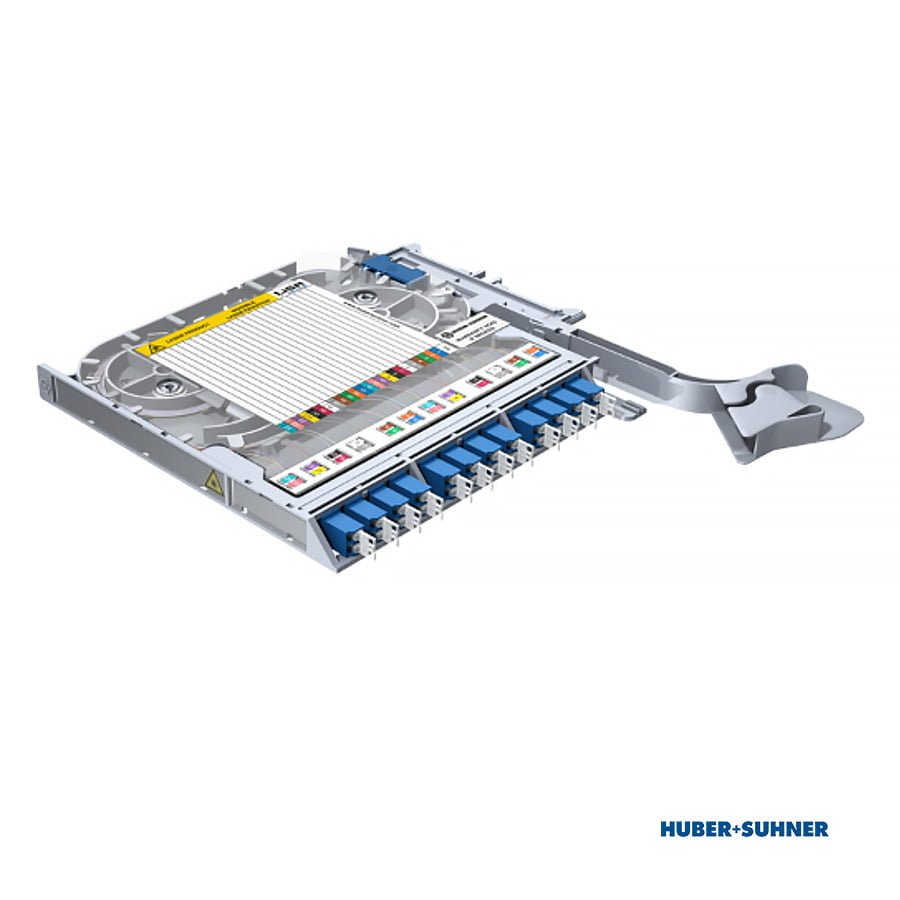

The LC-L-RH-88-12-24-09-H1-04O-S0 ribbon fibre cassette is a left hand LiSA cassette for splicing Ribbon Fibres with standard hinge fitted. It provides 12 x LC-Duplex adaptors for 24 Singlemode 9/125µm (G.652.D) fibres. The tray has a ribbon splice protection holder configuration holder with protectors included. The ribbon fibre cassette uses the standard TIA colour code and has Singlemode pigtails without connectors.
Features & Benefits
Features & Benefits
- High fibre density with an easy and fast mass fusion splice termination process up to 24F (2x12F) ribbon fibres
- Cassette accessed from the front with side-facing adaptors with pull-out and hinge-down function for Maintenance
- Pull-out service position for immediate access to adaptors
- Patch cords supported and guided into management system
- Various connector types supported – up to 12x BFF /24x SFF (LISA Ribbon Fibre cassette)
- Design includes bend radius limitation, storage for 1.5m fibre with separation of incoming and pigtail fibres
- Quick installation and easy handling without tools
- Easy to understand labelling and highly visible colour coding of cassette
- Supplied with central splice bridge for heat shrink and ribbon splice protectors for up to 2x12F
- The blue clip to fix conduits up to 5 mm is supplied as spare part. Not required in a standard LISA Ribbon solution.
Specifications
Specifications
Mechanical Data
| Characteristics | Values |
|---|---|
| Product family | LiSA |
| Suitable for | Splicing |
| Dimension (Width x Length x Height) | 262.5 x 293 x 18.5 (mm) / 10.3 x 11.5 x 0.7(inch) |
| Weight | 610 g / 21.5 oz |
| Material module | ABS/PC |
| Colour module | Window Grey (RAL 7040) |
| Number of Adaptor front (pcs) | 12 |
| Adaptor type front | LC |
| Adaptor type front polishing | UPC |
| Adaptor colour front | Blue |
| Colour code | TIA |
Optical Data
| Characteristics | Values |
|---|---|
| Fibre count | 24 |
| Fibre type | Singlemode 9/125 μm OS2 |
| Module insertion loss | Singlemode OS2: <=0.50 dB |
| Module return loss | Singlemode OS2 PC: >=50dB |
Environmental Data
| Characteristics | Values |
|---|---|
| Temperature resistance (min to max) | -40°C to 70°C / -40°F to 158°F |
| UL Rating | UL 94 V-0 |
| Free of halogen | Yes |
| RoHS compliant | Yes |
| REACH compliant | Yes |
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 85134925 | LISA splicing cassette LC LEFT, 24 fibres, LC UPC duplex, TIA colour code, ribbon, singlemode |
