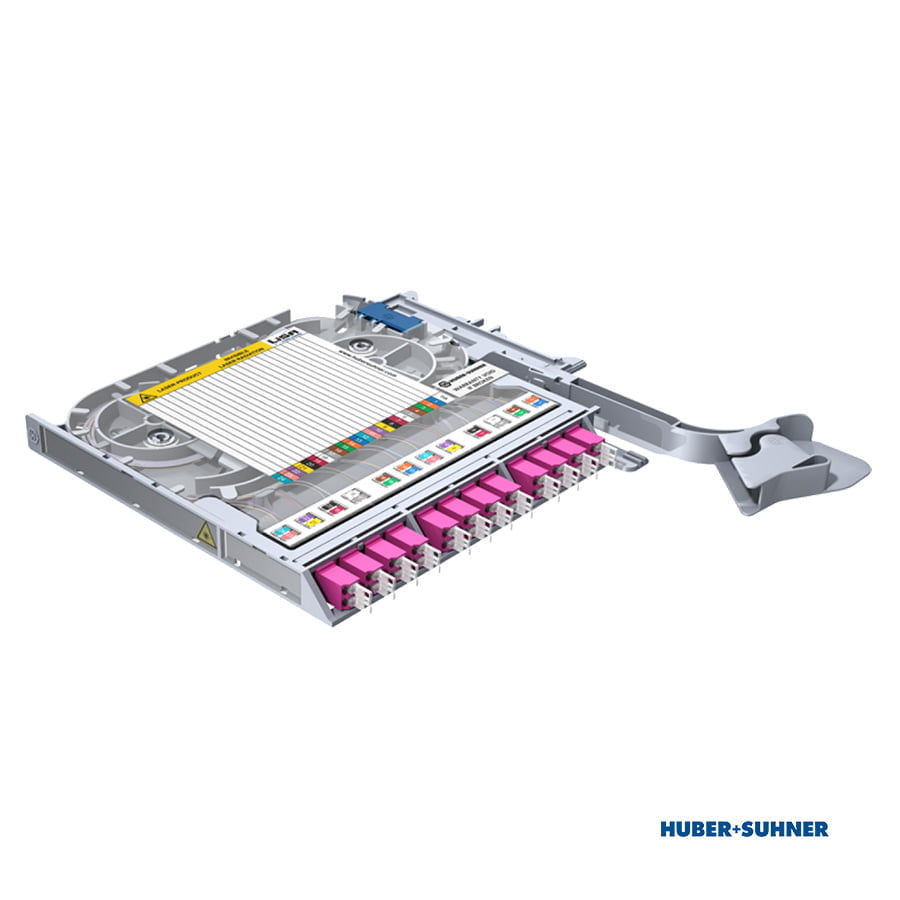

HUBER+SUHNER LISA Fibre Splice Tray with 12 X LCD adaptors (Heather Violet) for OM4 Multimode fibre, PC connectors, and TIA colour code.


12 x LCD Adaptor (Heather Violet), OM4, PC, TIA

HUBER+SUHNER LISA splice fibre trays are designed to work with HUBER+SUHNER CDRs and ODFs. As these are now in their third generation to be backwardly compatible it may require an additional adaptor.

The LC-L-SH-88-12-24-54-H1-04O-L0 splice tray is a left hand LISA cassette for splicing with standard hinge fitted. It provides 12 x LC-Duplex adaptors for 24 Multimode 50µm, OM4 fibres. The tray has a splice protection holder configuration of a heatshrink splice protection holder (type Ø1.5 x 40mm) with protectors included. The splice tray uses a TIA standard colour code and has Multimode low-loss pigtails.

Features & Benefits

Features & Benefits of H+S LISA Fibre Splice Trays

  • Fibre Tray accessed from the front with side-facing adaptors with pull-out and hinge-down function for maintenance.
  • Pull-out service position for immediate access to adaptors.
  • Patch cords supported and guided into management system.
  • Various connector types supported – up to 18 x BFF / 36 x SFF.
  • Design includes bend radius limitation, storage for 1.5m fibre with separation of incoming and pigtail fibres.
  • Quick installation and easy handling without tools.
  • Easy to understand labelling and highly visible colour coding of cassette.
  • Supplied with central splice bridge for heat shrink and sandwich splice protectors for up to 36 fibres.



Mechanical Data

Product familyLISA
Suitable forSplicing

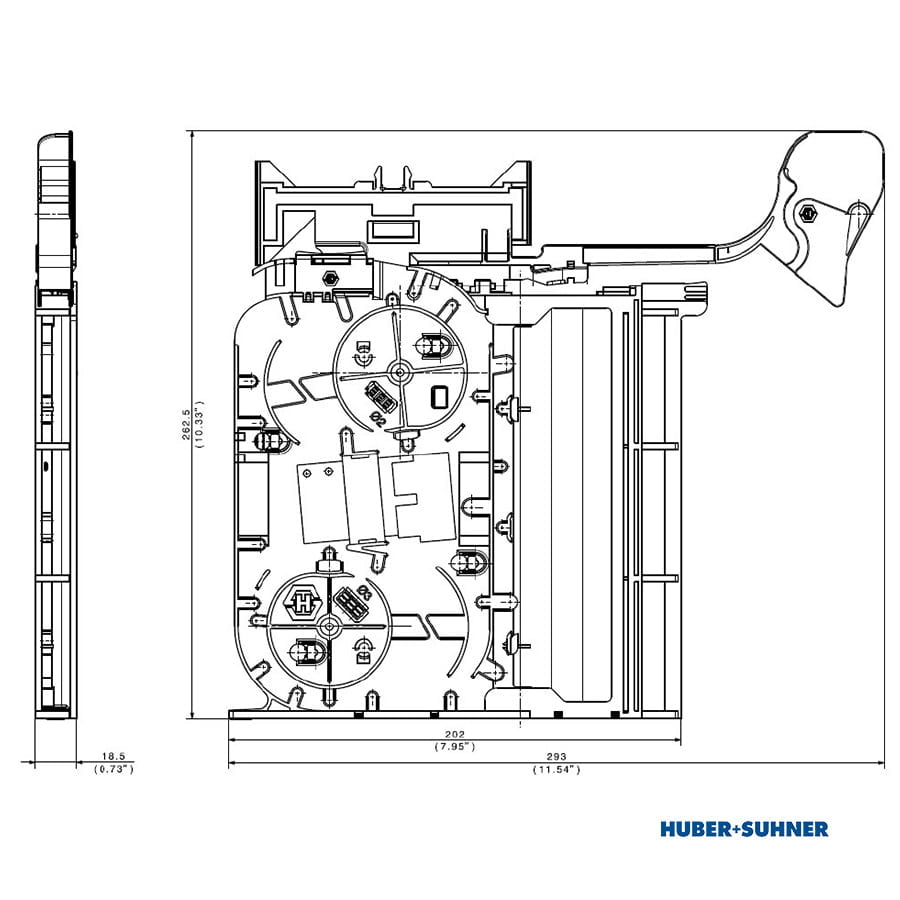

Dimension (Width x Length x Height) (mm)262.5 x 293 x 18.5 (mm) / 10.3 x 11.5 x 0.7 (inch)
Weight610 g / 21.5 oz
Material moduleABS/PC
Colour moduleWindow Grey (RAL 7040)
Number of Adaptor front (pcs)12
Adaptor type frontLC
Adaptor type front polishingPC
Adaptor colour frontHeather Violet
Colour codeTIA


Optical Data

Fibre count24
Fibre typeMultimode 50/125 μm OM4
Module insertion lossMultimode OM4: <=0.35 dB
Module return lossMultimode OM4: >=30dB


Environmental Data

Temperature resistance (min to max)-40°C to 70°C / -40°F to 158°F
UL RatingUL 94 V-0
Free of halogenYes
RoHS compliantYes
REACH compliantYes

Part Numbers

Part Numbers

Part NumberDescription
85088676LISA splicing cassette LC LEFT, 24 fibres, LC duplex, TIA colour code, heatshrink, multimode OM4
