HUBER+SUHNER LISA Fibre Splice Tray with 12 X LCD adaptors (Green) for OS2 Single Mode fibre, APC connectors and TIA colour code.
SKU: 85101367Categories: Connectivity, Fibre Cassettes | Fibre Trays, MMR Connectivity
HUBER+SUHNER LISA Splice Fibre Tray
12 x LCD Adaptor (Green), OS2, APC, TIA
HUBER+SUHNER LISA splice fibre trays are designed to work with HUBER+SUHNER CDRs and ODFs. As these are now in their third generation to be backwardly compatible it may require an additional adaptor.

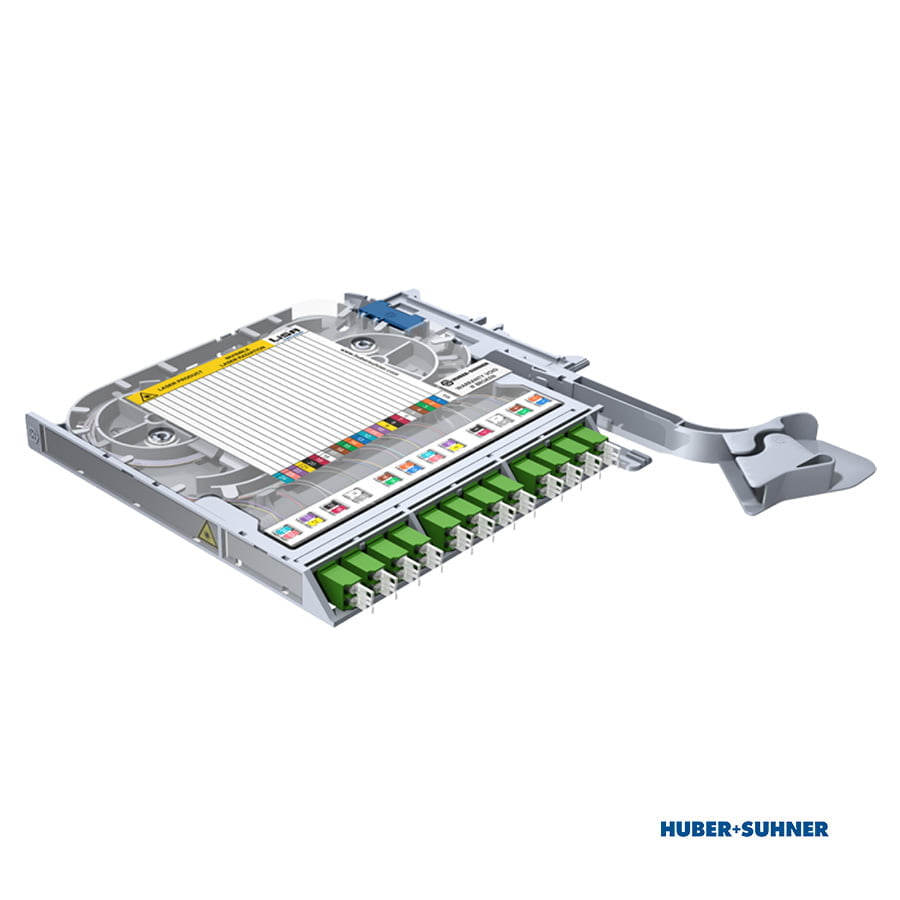

The LC-L-SH-89-12-24-09-H1-04O-S0 splice tray is a left hand LISA cassette for splicing with standard hinge fitted. It provides 12 x LC-APC Duplex adaptors for 24 Singlemode 9/125µm (G.652.D) fibres. The tray has a splice protection holder configuration of a heatshrink splice protection holder (type Ø 1.5 x 40mm) with protectors included. The splice tray uses the standard TIA colour code and has Singlemode pigtails.
Features & Benefits
Features & Benefits of H+S LISA Fibre Splice Trays
- Fibre Tray accessed from the front with side-facing adaptors with pull-out and hinge-down function for maintenance.
- Pull-out service position for immediate access to adaptors.
- Patch cords supported and guided into management system.
- Various connector types supported – up to 18 x BFF / 36 x SFF.
- Design includes bend radius limitation, storage for 1.5m fibre with separation of incoming and pigtail fibres.
- Quick installation and easy handling without tools.
- Easy to understand labelling and highly visible colour coding of cassette.
- Supplied with central splice bridge for heat shrink and sandwich splice protectors for up to 36 fibres.
Specifications
Specifications
Mechanical Data
Characteristics | Values |
---|---|
Product family | LISA |
Suitable for | Splicing |

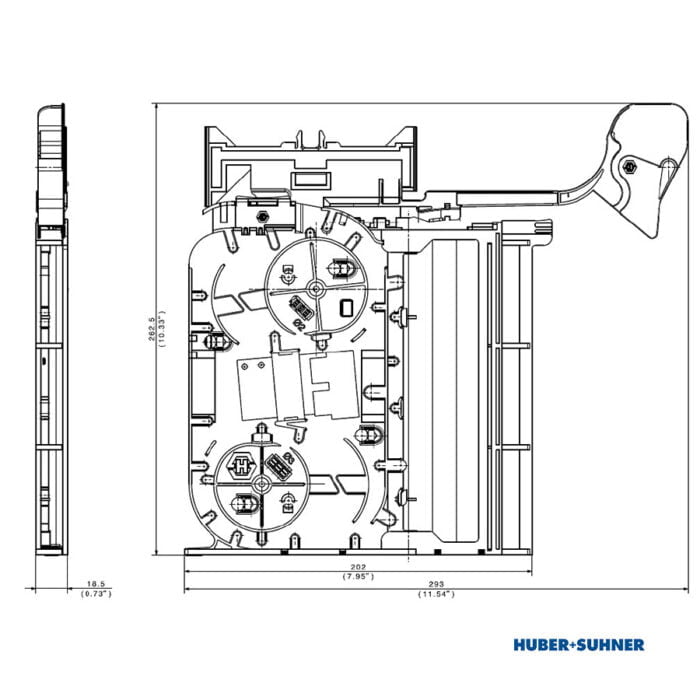

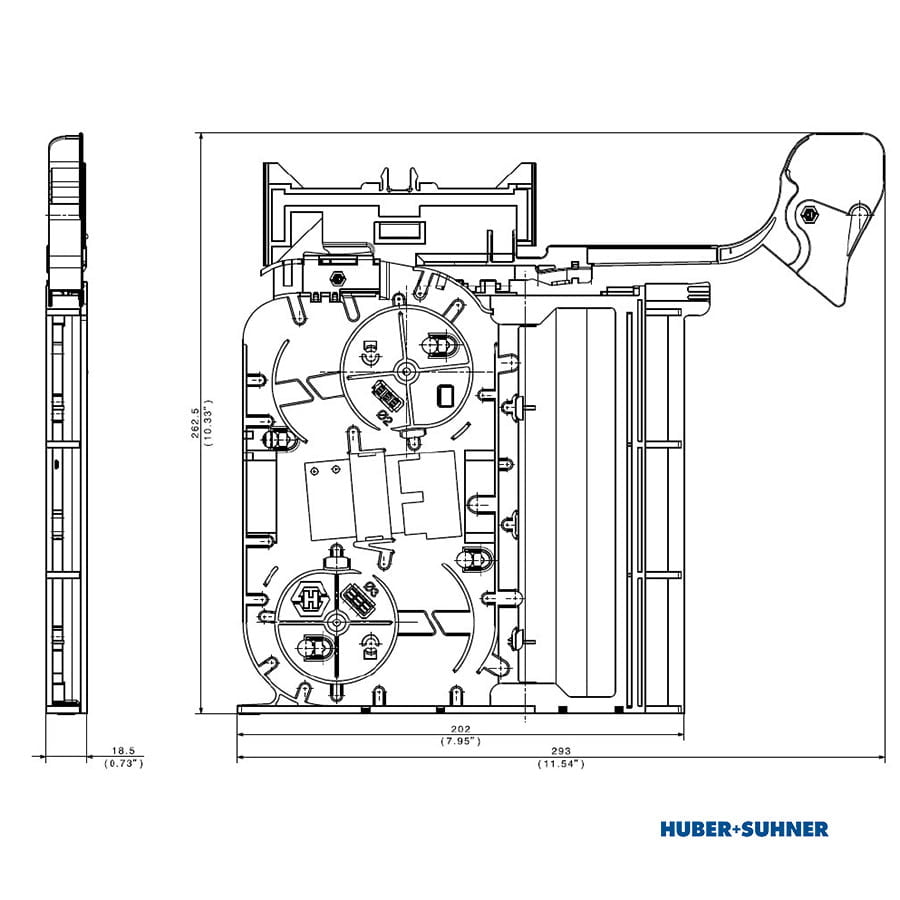

Dimension (Width x Length x Height) (mm) | 262.5 x 293 x 18.5 (mm) / 10.3 x 11.5 x 0.7 (inch) |
Weight | 610 g / 21.5 oz |
Material module | ABS/PC |
Colour module | Window Grey (RAL 7040) |
Number of Adaptor front (pcs) | 12 |
Adaptor type front | LC |
Adaptor type front polishing | APC |
Adaptor colour front | Green |
Colour code | TIA |
Optical Data
Characteristics | Values |
---|---|
Fibre count | 24 |
Fibre type | Singlemode 9/125 μm OS2 |
Module insertion loss | Singlemode OS2: <=0.50 dB |
Module return loss | Singlemode OS2 APC: >=60dB |
Environmental Data
Characteristics | Values |
---|---|
Temperature resistance (min to max) | -40°C to 70°C / -40°F to 158°F |
UL Rating | UL 94 V-0 |
Free of halogen | Yes |
RoHS compliant | Yes |
REACH compliant | Yes |
Part Numbers
Part Numbers
Part Number | Description |
---|---|
85101367 | LISA splicing cassette LC LEFT, 24 fibres, LC APC duplex, TIA colour code, heatshrink, singlemode |
