More About This Product
HUBER+SUHNER LISA Fibre Splice Tray with 12 X LCD adaptors (blue) for OS2 Single Mode fibre, UPC connectors and no colour code.
SKU: 85088674Categories: Connectivity, Fibre Cassettes | Fibre Trays, MMR Connectivity

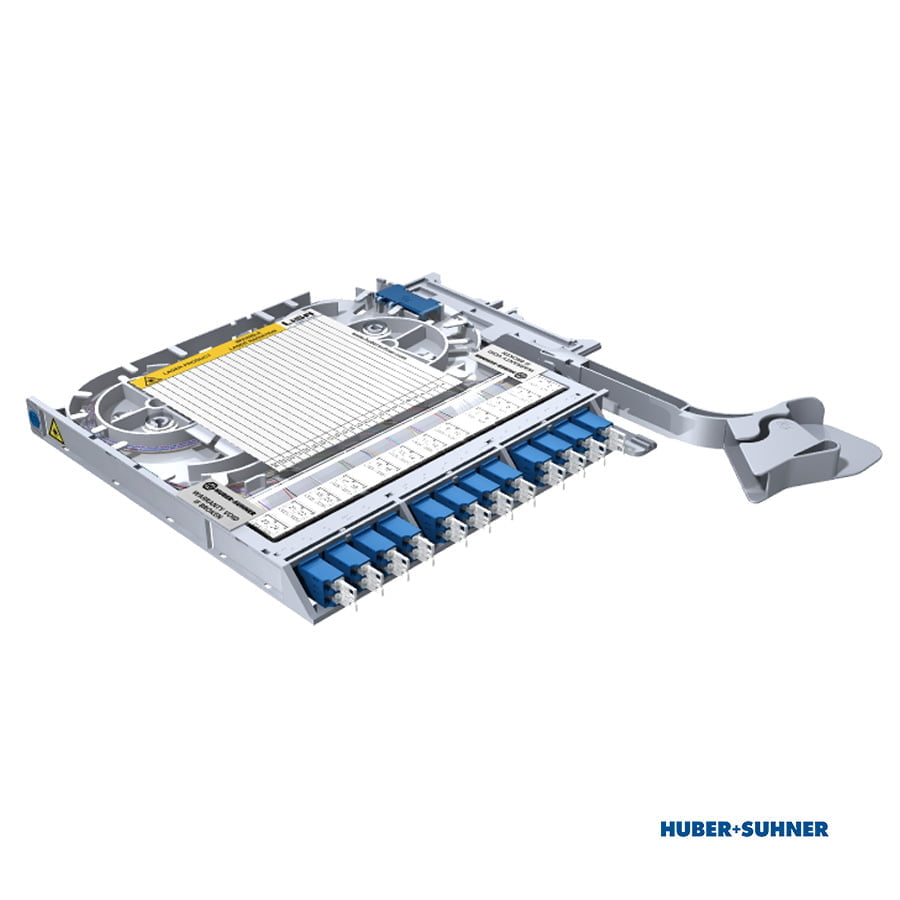

HUBER+SUHNER LISA Splice Fibre Tray
12 x LCD Adaptor (Blue), OS2, UPC, No Code
Part Number: 85088674
HUBER+SUHNER LISA splice fibre trays are designed to work with HUBER+SUHNER CDRs and ODFs. As these are now in their third generation to be backwardly compatible it may require an additional adaptor.
The LC-L-SH-88-12-24-09-S0-00O-S0 splice tray is a left hand LISA cassette for splicing with standard hinge fitted. It provides 12 x LC-Duplex adaptors for 24 Singlemode 9/125µm (G.652.D) fibres. The tray has a splice protection holder configuration of a sandwich splice protection holder with protectors excluded. The splice tray does not have a colour code and has Singlemode pigtails.
Features & Benefits
Features & Benefits of H+S LISA Fibre Splice Trays
- Fibre Tray accessed from the front with side-facing adaptors with pull-out and hinge-down function for maintenance.
- Pull-out service position for immediate access to adaptors.
- Patch cords supported and guided into management system.
- Various connector types supported – up to 18 x BFF / 36 x SFF.
- Design includes bend radius limitation, storage for 1.5m fibre with separation of incoming and pigtail fibres.
- Quick installation and easy handling without tools.
- Easy to understand labelling and highly visible colour coding of cassette.
- Supplied with central splice bridge for heat shrink and sandwich splice protectors for up to 36 fibres.
Specifications
Specifications
Mechanical Data
Characteristics | Values |
---|---|
Product family | LISA |
Suitable for | Splicing |

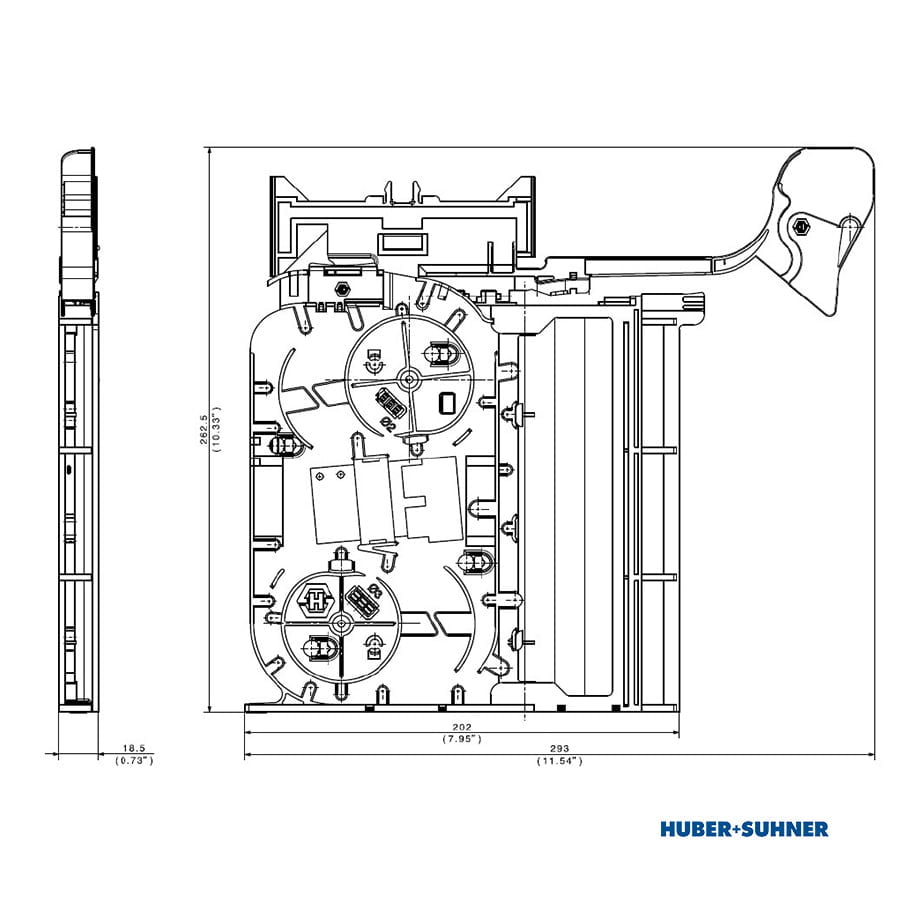

Dimension (Width x Length x Height) (mm) | 262.5 x 293 x 18.5 (mm) / 10.3 x 11.5 x 0.7 (inch) |
Weight | 610 g / 21.5 oz |
Material module | ABS/PC |
Colour module | Window Grey (RAL 7040) |
Number of Adaptor front (pcs) | 12 |
Adaptor type front | LC |
Adaptor type front polishing | UPC |
Adaptor colour front | Blue |
Colour code | No Code |
Optical Data
Characteristics | Values |
---|---|
Fibre count | 24 |
Fibre type | Singlemode 9/125 μm OS2 |
Module insertion loss | Singlemode OS2: <=0.50 dB |
Module return loss | Singlemode OS2 PC: >=50dB |
Environmental Data
Characteristics | Values |
---|---|
Temperature resistance (min to max) | -40°C to 70°C / -40°F to 158°F |
UL Rating | UL 94 V-0 |
Free of halogen | Yes |
RoHS compliant | Yes |
REACH compliant | Yes |
Part Numbers
Part Numbers
Part Number | Description |
---|---|
85088674 | LISA splicing cassette LC LEFT, 24 fibres, LC UPC duplex, no colour code, sandwich, singlemode |
