HUBER+SUHNER LISA Fibre Splice Tray with 12 X LCD adaptors (Heather Violet) for OM4 Multimode fibre, PC connectors, and TIA colour code.
SKU: 85111140Categories: Connectivity, Fibre Cassettes | Fibre Trays, MMR Connectivity
HUBER+SUHNER LISA Splice Fibre Tray
12 x LCD Adaptor (Heather Violet), OM4, PC, TIA
HUBER+SUHNER LISA splice fibre trays are designed to work with HUBER+SUHNER CDRs and ODFs. As these are now in their third generation to be backwardly compatible it may require an additional adaptor.

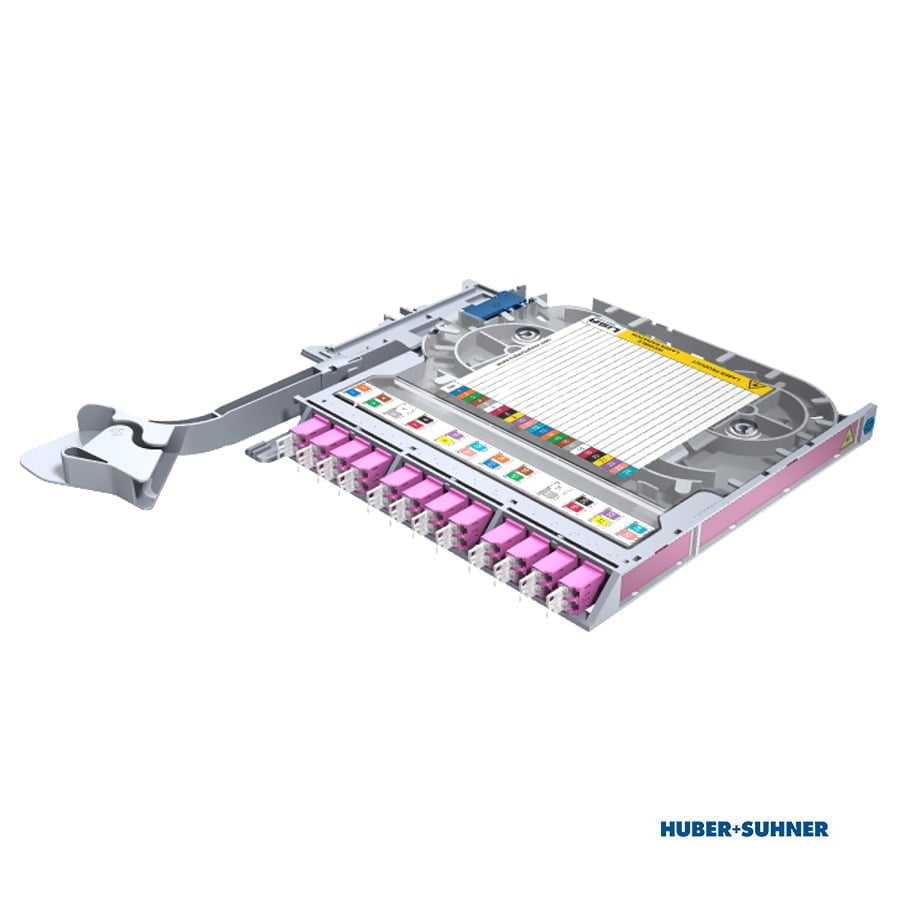

The LC-R-SH-88-12-24-54-H1-04O-L0 splice tray is a right hand LISA cassette for splicing with standard hinge fitted. It provides 12 x LC-Duplex adaptors for 24 Multimode 50µm, OM4 fibres. The tray has a splice protection holder configuration of a heatshrink splice protection holder (type Ø1.5 x 40mm) with protectors included. The splice tray uses a TIA standard colour code and has Multimode low-loss pigtails.
Features & Benefits
Features & Benefits of H+S LISA Fibre Splice Trays
- Fibre Tray accessed from the front with side-facing adaptors with pull-out and hinge-down function for maintenance.
- Pull-out service position for immediate access to adaptors.
- Patch cords supported and guided into management system.
- Various connector types supported – up to 18 x BFF / 36 x SFF.
- Design includes bend radius limitation, storage for 1.5m fibre with separation of incoming and pigtail fibres.
- Quick installation and easy handling without tools.
- Easy to understand labelling and highly visible colour coding of cassette.
- Supplied with central splice bridge for heat shrink and sandwich splice protectors for up to 36 fibres.
Specifications
Specifications
Mechanical Data
| Characteristics | Values |
|---|---|
| Product family | LISA |
| Suitable for | Splicing |

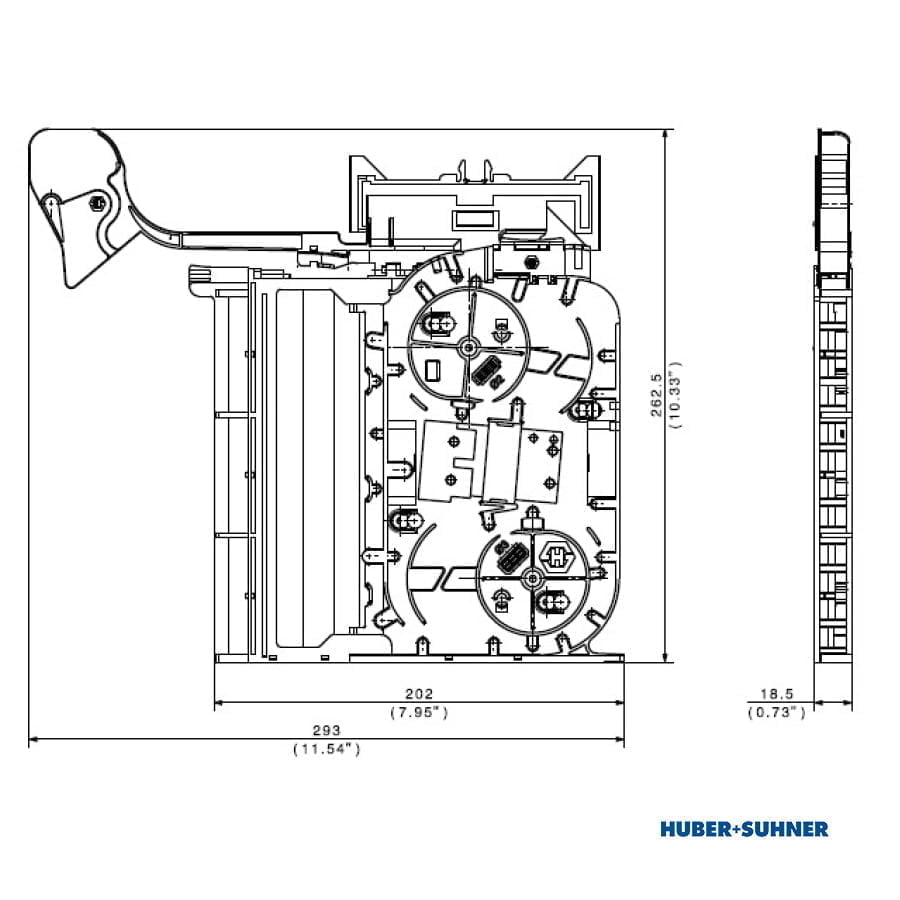

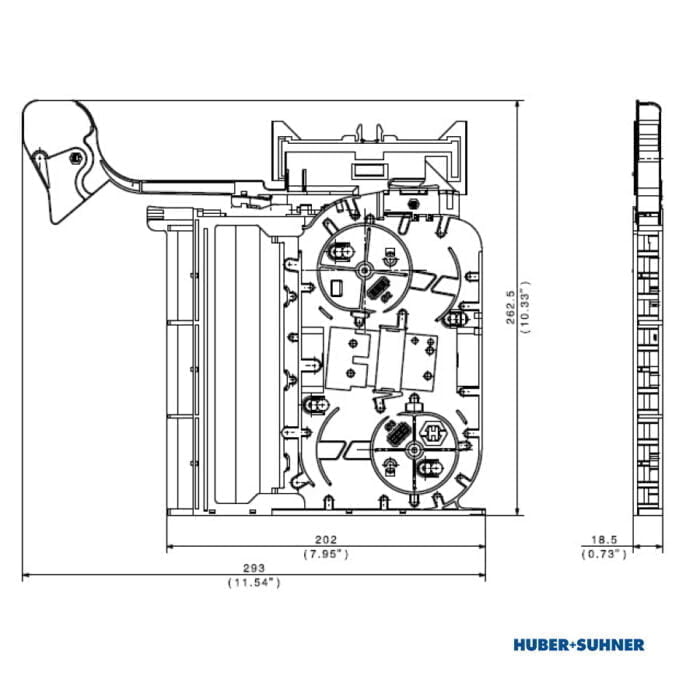

| Dimension (Width x Length x Height) (mm) | 262.5 x 293 x 18.5 (mm) / 10.3 x 11.5 x 0.7 (inch) |
| Weight | 610 g / 21.5 oz |
| Material module | ABS/PC |
| Colour module | Window Grey (RAL 7040) |
| Number of Adaptor front (pcs) | 12 |
| Adaptor type front | LC |
| Adaptor type front polishing | PC |
| Adaptor colour front | Heather Violet |
| Colour code | TIA |
Optical Data
| Characteristics | Values |
|---|---|
| Fibre count | 24 |
| Fibre type | Multimode 50/125 μm OM4 |
| Module insertion loss | Multimode OM4: <=0.35 dB |
| Module return loss | Multimode OM4: >=30dB |
Environmental Data
| Characteristics | Values |
|---|---|
| Temperature resistance (min to max) | -40°C to 70°C / -40°F to 158°F |
| UL Rating | UL 94 V-0 |
| Free of halogen | Yes |
| RoHS compliant | Yes |
| REACH compliant | Yes |
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 85111140 | LISA splicing cassette LC RIGHT, 24 fibres, LC duplex, TIA colour code, heatshrink, multimode OM4 |
