More About This Product

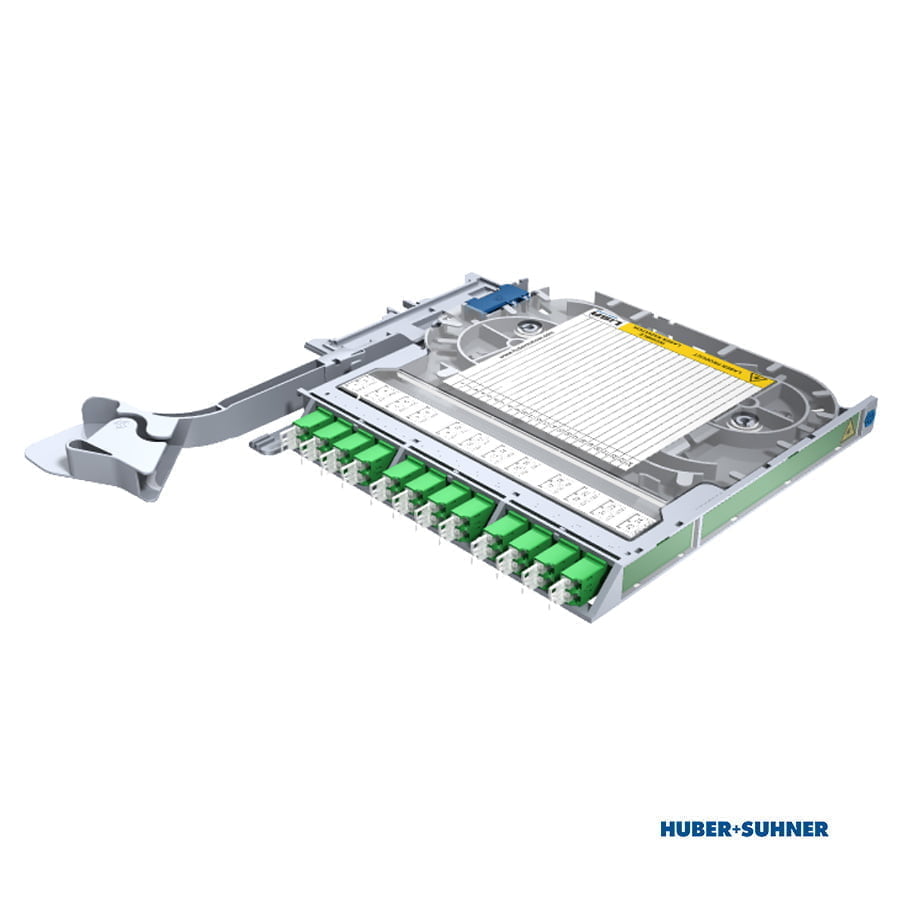

HUBER+SUHNER right hand LISA Fibre Splice Tray with 12 X LCD adaptors (Green) for OS2 Single Mode fibre, APC connectors, No colour code.


12 x LCD Adaptor (Green), OS2, APC, No Code

HUBER+SUHNER LISA splice fibre trays are designed to work with HUBER+SUHNER CDRs and ODFs. As these are now in their third generation to be backwardly compatible it may require an additional adaptor.

The LC-R-SH-89-12-24-09-H1-00O-S0 splice tray is a right hand LISA cassette for splicing with standard hinge fitted. It provides 12 x LC-APC Duplex adaptors for 24 Singlemode 9/125µm (G.652.D) fibres. The tray has a splice protection holder configuration of a heatshrink splice protection holder (type Ø 1.5 x 40mm) and includes protectors. The splice tray has no colour code and has Singlemode pigtails.

Features & Benefits

Features & Benefits of H+S LISA Fibre Splice Trays

  • Fibre Tray accessed from the front with side-facing adaptors with pull-out and hinge-down function for maintenance.
  • Pull-out service position for immediate access to adaptors.
  • Patch cords supported and guided into management system.
  • Various connector types supported – up to 18 x BFF / 36 x SFF.
  • Design includes bend radius limitation, storage for 1.5m fibre with separation of incoming and pigtail fibres.
  • Quick installation and easy handling without tools.
  • Easy to understand labelling and highly visible colour coding of cassette.
  • Supplied with central splice bridge for heat shrink and sandwich splice protectors for up to 36 fibres.



Mechanical Data

Product familyLISA
Suitable forSplicing

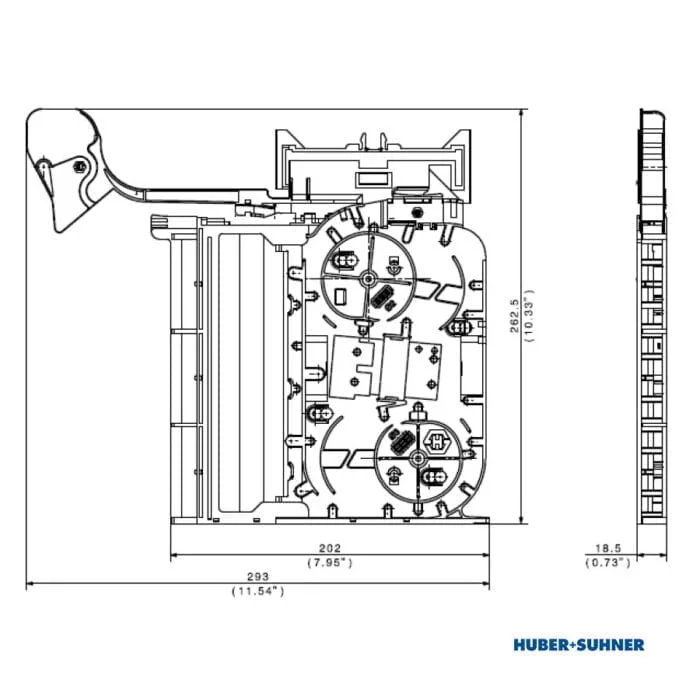

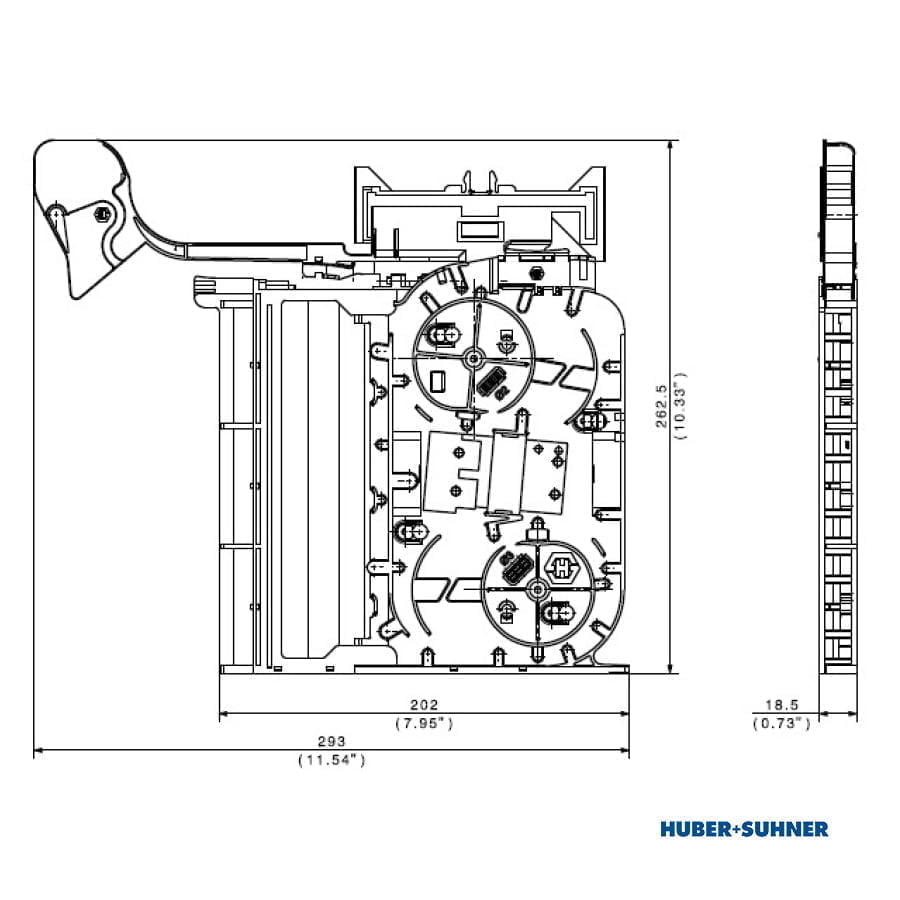

Dimension (Width x Length x Height) (mm)262.5 x 293 x 18.5 (mm) / 10.3 x 11.5 x 0.7 (inch)
Weight610 g / 21.5 oz
Material moduleABS/PC
Colour moduleWindow Grey (RAL 7040)
Number of Adaptor front (pcs)12
Adaptor type frontLC
Adaptor type front polishingAPC
Adaptor colour frontGreen
Colour codeNo Code


Optical Data

Fibre count24
Fibre typeSinglemode 9/125 μm OS2
Module insertion lossSinglemode OS2: <=0.50 dB
Module return lossSinglemode OS2 APC: >=60dB


Environmental Data

Temperature resistance (min to max)-40°C to 70°C / -40°F to 158°F
UL RatingUL 94 V-0
Free of halogenYes
RoHS compliantYes
REACH compliantYes

Part Numbers

Part Numbers

Part NumberDescription
85111134LISA splicing cassette LC RIGHT, 24 fibres, LC APC duplex, no colour code, heatshrink, singlemode
