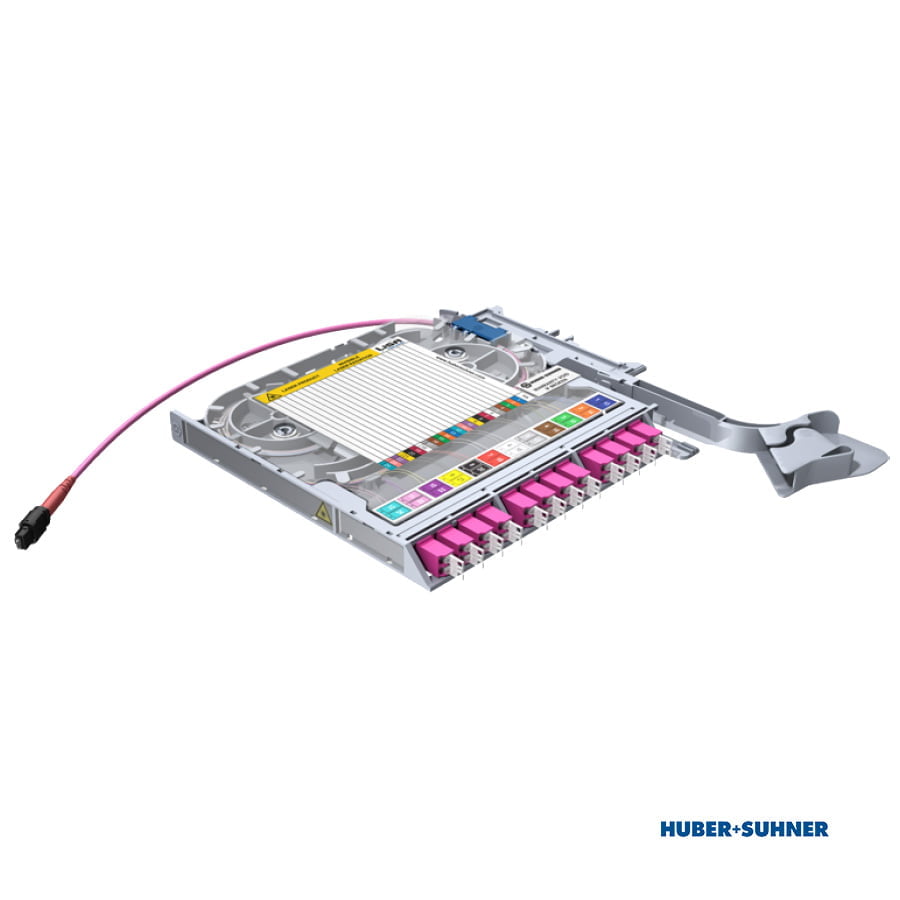

HUBER+SUHNER LISA Fibre Transition Tray with 12 X LCD adaptors (Heather Violet), 1 x MTP24 Non-Pinned connector, PC connectors for Multimode OM4 fibre with polarity R1.
HUBER+SUHNER LISA Transition Fibre Tray
12 x LCD, 1 x MTP24 Non-Pinned, PC, OM4
HUBER+SUHNER LISA transition fibre trays are designed to work with HUBER+SUHNER CDRs and ODFs and allow the transition of MTP backbone cables to LC connectivity. As these are now in their third generation to be backwardly compatible it may require an additional adaptor.
The LC-L-MH-88-12-24-54-F2-R1O-LL transition tray is a left hand LISA cassette for MTP transition with standard hinge fitted. It provides 12 x LC Duplex adaptors for 24 Multimode 50µm OM4 fibres. The tray has a female MTP connector fan-out assembly with 24 cores with polarity R1, with Multimode low-loss pigtail connectors and Multimode Elite MTP connectors.
Features & Benefits
Features & Benefits of H+S LISA Fibre Transition Trays
- Cassette accessed from the front with side-facing adaptors with pull-out and hinge down function for maintenance.
- Patch cords supported and guided into management system.
- Various connector types supported – up to 36 x SFF.
- Incoming cabling pre-terminated with MTP 8, 12 or 24 fibre interface, with MTP Elite connectivity.
- Quick installation and easy handling without tools.
- Easy to understand labelling and highly visible colour coding of cassette
Specifications
Specifications
Mechanical Data
| Characteristics | Values |
|---|---|
| Product family | LISA |
| Suitable for | Transition |

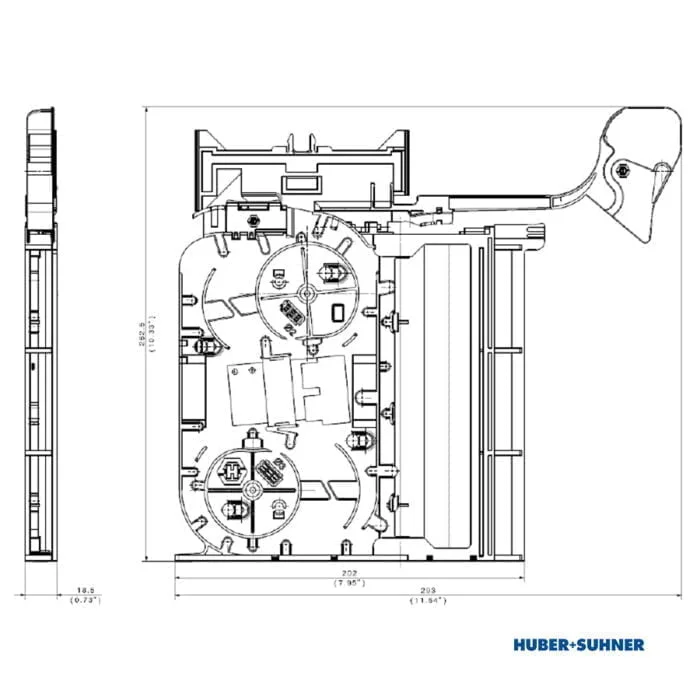

| Dimension (Width x Length x Height) (mm) | 262.5 x 293 x 18.5 (mm) / 10.3 x 11.5 x 0.7 (inch) |
| Weight | 500 g / 17.6 oz |
| Material module | ABS/PC |
| Colour module | Window Grey (RAL 7040) |
| Number of Adaptor front (pcs) | 12 |
| Adaptor type front | LC |
| Adaptor type front polishing | PC |
| Adaptor colour front | Heather Violet |
| Number of Adaptor rear (pcs) | 1 |
| Adaptor type rear | MTP24 |
| Adaptor type rear polishing | PC |
| Adaptor colour rear | Black |
| Adaptor gender rear | Non-Pinned |
| Polarity | R1 |
Optical Data
| Characteristics | Values |
|---|---|
| Fibre count | 24 |
| Fibre type | Multimode 50/125 μm OM4 |
| Module insertion loss | Multimode OM4: <=0.35 dB |
| Module return loss | Multimode OM4: >=30dB |
Environmental Data
| Characteristics | Values |
|---|---|
| Temperature resistance (min to max) | -40°C to 70°C / -40°F to 158°F |
| UL Rating | UL 94 V-0 |
| Free of halogen | Yes |
| RoHS compliant | Yes |
| REACH compliant | Yes |
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 85088671 | LISA MTP transition cassette LEFT, Base-24, 12x LCd, 24 fibres, 1x MTP female, polarity R1, multimode OM4 |
