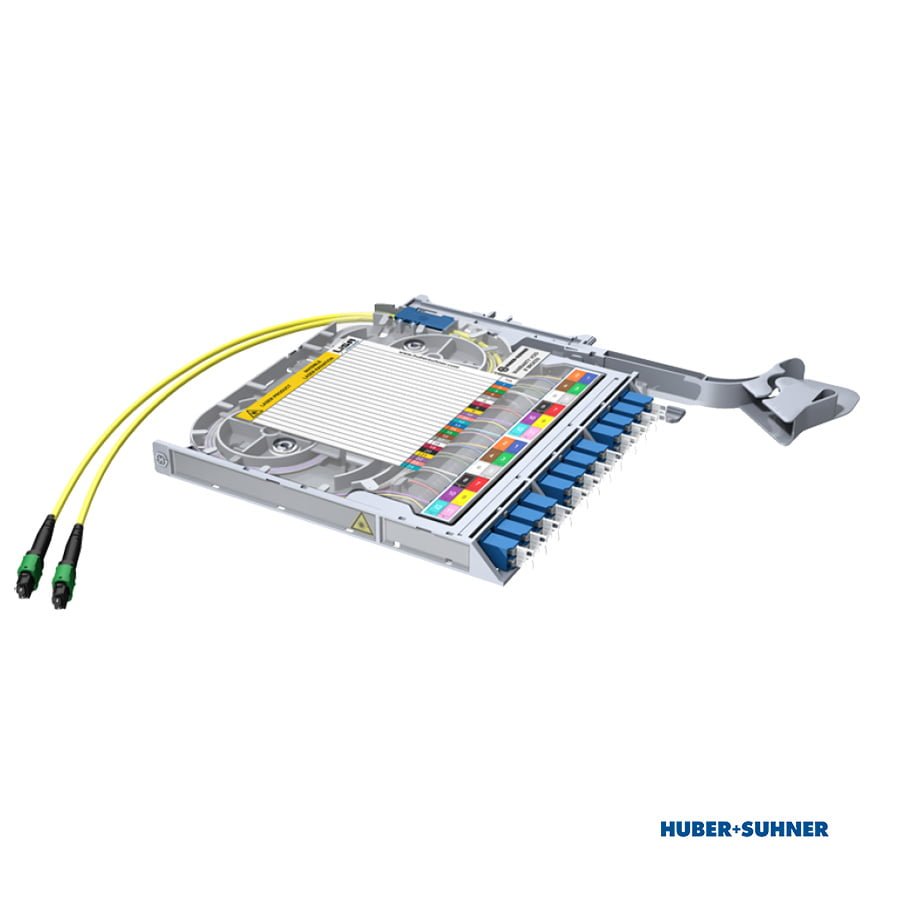

HUBER+SUHNER LISA Fibre Transition Tray with 12 X LCD adaptors (Blue), 2 x MTP12 Pinned connectors, UPC connectors for Singlemode OS2.

HUBER+SUHNER LISA Transition Fibre Tray

12 x LCD Front Adaptors, Rear 2 x MTP12 Pinned, UPC, OS2

HUBER+SUHNER LISA transition fibre trays are designed to work with HUBER+SUHNER CDRs and ODFs and allow the transition of MTP backbone cables to LC connectivity. As these are now in their third generation to be backwardly compatible it may require an additional adaptor.

The LC-L-MH-88-12-24-09-M1-ASO-SB transition tray is a left hand LISA cassette for MTP transition with standard hinge fitted. It provides 12 x LC Duplex adaptors for 24 Singlemode 9/125µm (G.652.D) fibres. The tray has a male MTP connector fan-out assembly with 12 cores and TIA colour coding, with Singlemode pigtail connectors and Singlemode Elite MTP connectors.

Features & Benefits

Features & Benefits of H+S LISA Fibre Transition Trays

  • Cassette accessed from the front with side-facing adaptors with pull-out and hinge down function for maintenance.
  • Patch cords supported and guided into management system.
  • Various connector types supported – up to 36 x SFF.
  • Incoming cabling pre-terminated with MTP 8, 12 or 24 fibre interface, with MTP Elite connectivity.
  • Quick installation and easy handling without tools.
  • Easy to understand labelling and highly visible colour coding of cassette

Specifications

Specifications

Mechanical Data

CharacteristicsValues
Product familyLISA
Suitable forTransition
Dimension (Width x Length x Height) (mm)262.5 x 293 x 18.5 (mm) / 10.3 x 11.5 x 0.7 (inch)
Weight540 g / 19 oz
Material moduleABS/PC
Colour moduleWindow Grey (RAL 7040)
Number of Adaptor front (pcs)12
Adaptor type frontLC
Adaptor type front polishingUPC
Adaptor colour frontBlue
Number of Adaptor rear (pcs)2
Adaptor type rearMTP12
Adaptor type rear polishingAPC
Adaptor colour rearGreen
Adaptor gender rearPinned
Colour codeTIA



Optical Data

CharacteristicsValues
Fibre count24
Fibre typeSinglemode 9/125 μm OS2
Module insertion lossSinglemode OS2: <=0.50 dB
Module return lossSinglemode OS2 PC: >=50dB



Environmental Data

CharacteristicsValues
Temperature resistance (min to max)-40°C to 70°C / -40°F to 158°F
UL RatingUL 94 V-0
Free of halogenYes
RoHS compliantYes
REACH compliantYes

Part Numbers

Part Numbers

Part NumberDescription
85086075LISA MTP transition cassette LEFT, Base-12, 12x LCd UPC, 24 fibres, 2x MTP male, polarity AS, singlemode
