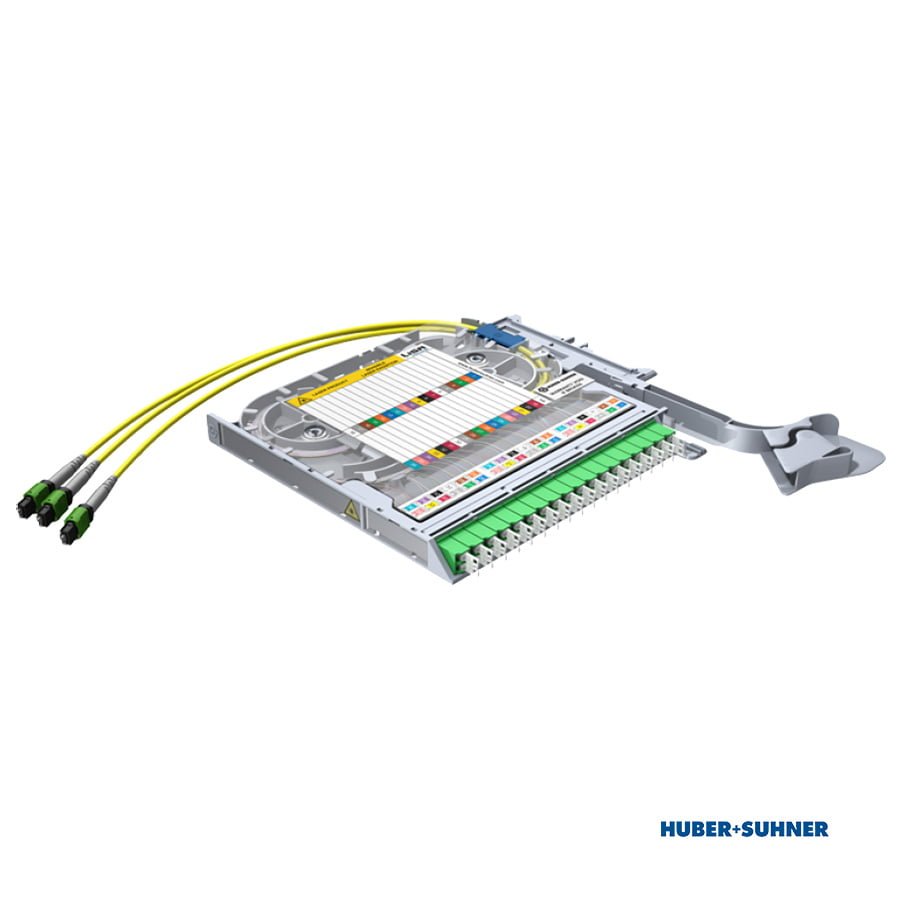

HUBER+SUHNER LISA Fibre Transition Tray with 18 X LCD adaptors (Green), 3 x MTP12 Pinned connectors, APC connectors for Singlemode fibre, TIA colour code.
HUBER+SUHNER LISA Transition Fibre Tray
18 x LCD, 3 x MTP12 Pinned, APC, OS2
HUBER+SUHNER LISA transition fibre trays are designed to work with HUBER+SUHNER CDRs and ODFs and allow the transition of MTP backbone cables to LC connectivity. As these are now in their third generation to be backwardly compatible it may require an additional adaptor.
The LC-L-MH-89-18-36-09-M1-ASO-SB transition tray is a left hand LISA cassette for MTP transition with standard hinge fitted. It provides 18 x LC-APC Duplex adaptors for 36 Singlemode 9/125µm (G.652.D) fibres. The tray has a male MTP connector fan-out assembly with 12 cores and TIA colour code, with Singlemode pigtail connectors and Singlemode Elite MTP connectors.
Features & Benefits
Features & Benefits of H+S LISA Fibre Transition Trays
- Cassette accessed from the front with side-facing adaptors with pull-out and hinge down function for maintenance.
- Patch cords supported and guided into management system.
- Various connector types supported – up to 36 x SFF.
- Incoming cabling pre-terminated with MTP 8, 12 or 24 fibre interface, with MTP Elite connectivity.
- Quick installation and easy handling without tools.
- Easy to understand labelling and highly visible colour coding of cassette
Specifications
Specifications
Mechanical Data
| Characteristics | Values |
|---|---|
| Product family | LISA |
| Suitable for | Transition |
| Dimension (Width x Length x Height) (mm) | 262.5 x 293 x 18.5 (mm) / 10.3 x 11.5 x 0.7 (inch) |
| Weight | 570 g / 20.1 oz |
| Material module | ABS/PC |
| Colour module | Window Grey (RAL 7040) |
| Number of Adaptor front (pcs) | 18 |
| Adaptor type front | LC |
| Adaptor type front polishing | APC |
| Adaptor colour front | Green |
| Number of Adaptor rear (pcs) | 3 |
| Adaptor type rear | MTP12 |
| Adaptor type rear polishing | APC |
| Adaptor colour rear | Black |
| Adaptor gender rear | Pinned |
| Colour code | TIA |
Optical Data
| Characteristics | Values |
|---|---|
| Fibre count | 36 |
| Fibre type | Singlemode 9/125 μm OS2 |
| Module insertion loss | Singlemode OS2: <=0.50 dB |
| Module return loss | Singlemode OS2 APC: >=60dB |
Environmental Data
| Characteristics | Values |
|---|---|
| Temperature resistance (min to max) | -40°C to 70°C / -40°F to 158°F |
| UL Rating | UL 94 V-0 |
| Free of halogen | Yes |
| RoHS compliant | Yes |
| REACH compliant | Yes |
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 85088080 | LISA MTP transition cassette LEFT, Base-12, 18x LCd APC, 36 fibres, 3x MTP male, polarity AS, singlemode |
