More About This Product
The LiSA Chassis is the building block for HUBER+SUHNER’s ODF; the Cable Distribution Rack (CDR). The LiSA Chassis is designed to hold the LiSA Cassettes that provide the support for fibre applications such as splicing, transition or patching within the LiSA High-Density centralised fibre management system.
LiSA Chassis Building-Block of the HUBER+SUHNER CDR
Centralise your fibre cable management

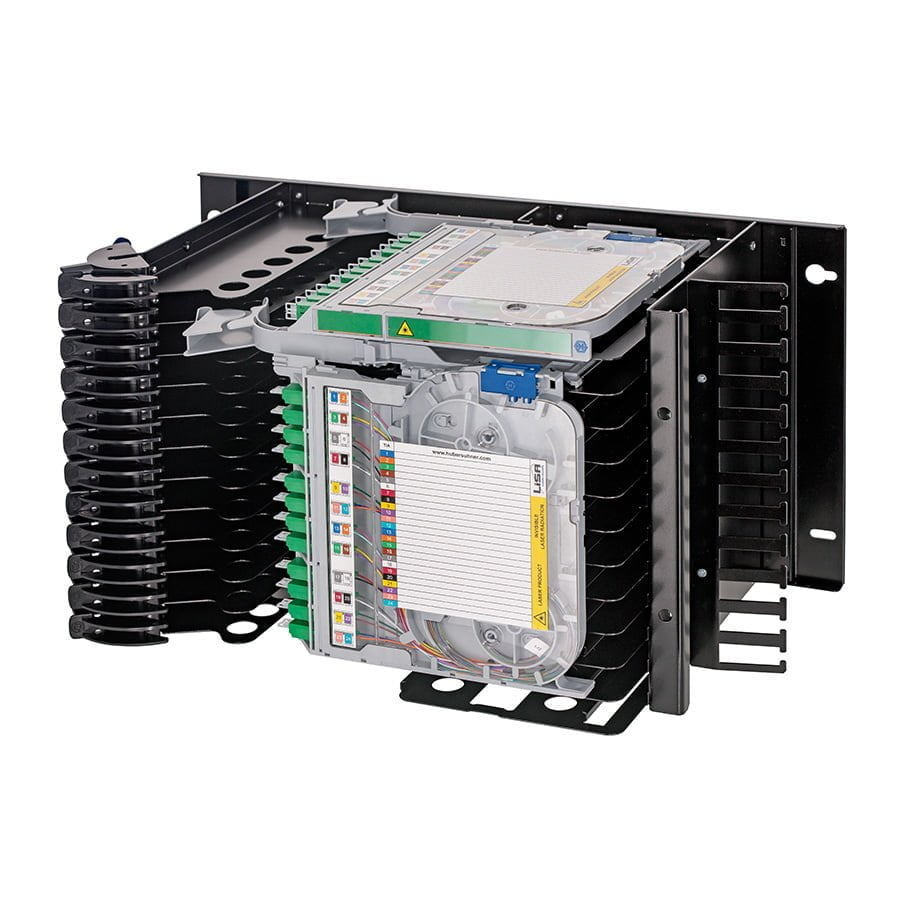

The LiSA chassis lies at the heart of the HUBER+SUHNER CDR high-density fibre management system. It houses the splice, patch, transition, splitter or WDM LiSA Fibre Tray Cassettes inside the CDR centralised fibre management rack. Incoming backbone cables are connected on the incoming side, while patch cord link ports on the opposite connect to the fibre connections linking to the IT equipment.

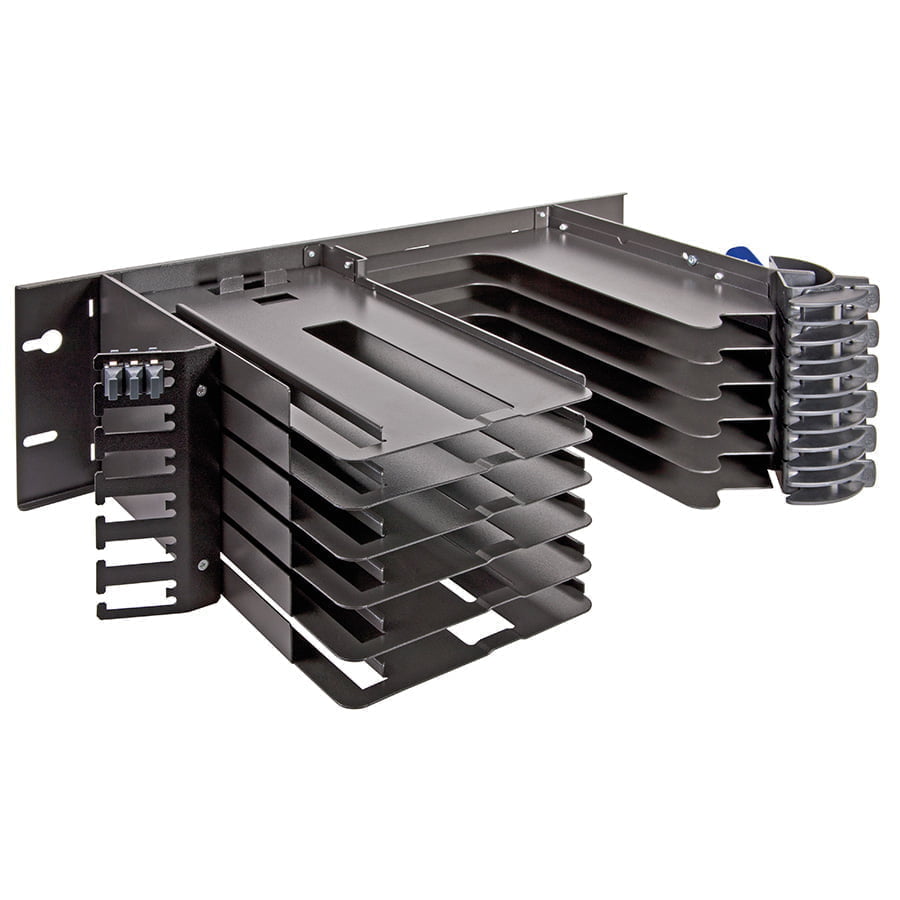

LiSA Chassis are available in 5 RU heights – 1U, 2U, 3U, 6U and 7U. Each U height can support up to 72 fibres / 36 LC-Duplex ports. Each chassis has rear 19” fixing points that provides full access to all incoming and outgoing fibres from the front of the CDR. Each tray position within the chassis has integrated cable management that allows for an integral service loop of patch cord, this enables the LiSA Cassettes to be easily and quickly inserted and retracted. When trays are retracted their hinged design enables easy handling of the connections, while connection ports face sideways to protect users from lasers.
LiSA Chassis are available in left or right configuration versions and in black or grey. They support up to 2 conduits per fibre cassette and have a universal fixing plate for up to 4 MTP adapters.
Single LiSA Chassis Capacity
| Height | Chassis Per 900mm Rack & Used Space | No. of Cassettes Per Chassis | No. of Fibres & Duplex Ports Per Full ODF | |
|---|---|---|---|---|
| 24 Way Cassette – Basic Version | 36-Way Cassette – High-Density Version | |||
| 1U | 46x / 46U | 2 | 2208 fibres / 1104 ports | 3312 fibres / 1656 ports |
| 2U | 23x / 46U | 4 | ||
| 3U | 15x / 45U | 6 | 2160 fibres / 1080 ports | 3240 fibres / 1620 ports |
| 6U | 7x / 42U | 12 | 2016 fibres / 1008 ports | 3024 fibres / 1512 ports |
| 7U (HD) | 6x / 42U* | 15 | 2160 fibres / 1080 ports | 3240 fibres / 1620 ports |
* It is possible to mix various chassis inside the rack to achieve higher density.
Features & Benefits
Features & Benefits
- Chassis are available in 5 different U height sizes.
- Chassis available for left or right configuration in black or grey.
- Integration of pigtail splicing, splice through, MTP transition and splitter cassettes.
- Up to 72 fibres / 36 duplex LC ports per height unit.
- Horizontal fibre cassette mounting maximises available height in rack.
- For up to 2 conduits per fibre cassette.
- Universal fixing plate for up to 4 MTP adapters.
- Universal fixing plate for up to 4 conduits with diameter 4mm or 5mm – special conduit clips
Included. - Integral service loop for patch cords.
- Horizontal and vertical patch cord guides.
- Integrated patch cord mandrels for bend-radius protection.
- Patch cord retaining ring ensures safe strain relief of patch cords as exiting the unit.
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 85109679 | LISA chassis LEFT, 1U, black colour, 2 cassettes |
| 85109681 | LISA chassis RIGHT, 1U, black colour, 2 cassettes |
| 85109675 | LISA chassis LEFT, 2U, black colour, 4 cassettes |
| 85109677 | LISA chassis RIGHT, 2U, black colour, 4 cassettes |
| 85109670 | LISA chassis LEFT, 3U, black colour, 6 cassettes |
| 85109672 | LISA chassis RIGHT, 3U, black colour, 6 cassettes |
| 85109654 | LISA chassis LEFT, 6U, black colour, 12 cassettes |
| 85109657 | LISA chassis RIGHT, 6U, black colour, 12 cassettes |
| 85109665 | LISA chassis LEFT, 7U, black colour, 15 cassettes |
| 85109668 | LISA chassis RIGHT, 7U, black colour, 15 cassettes |
