HUBER+SUHNER CQM-800A04 is a 40G QSFP+ SR4 Parallel Transceiver
SKU: N/ACategories: Connectivity, Transceivers

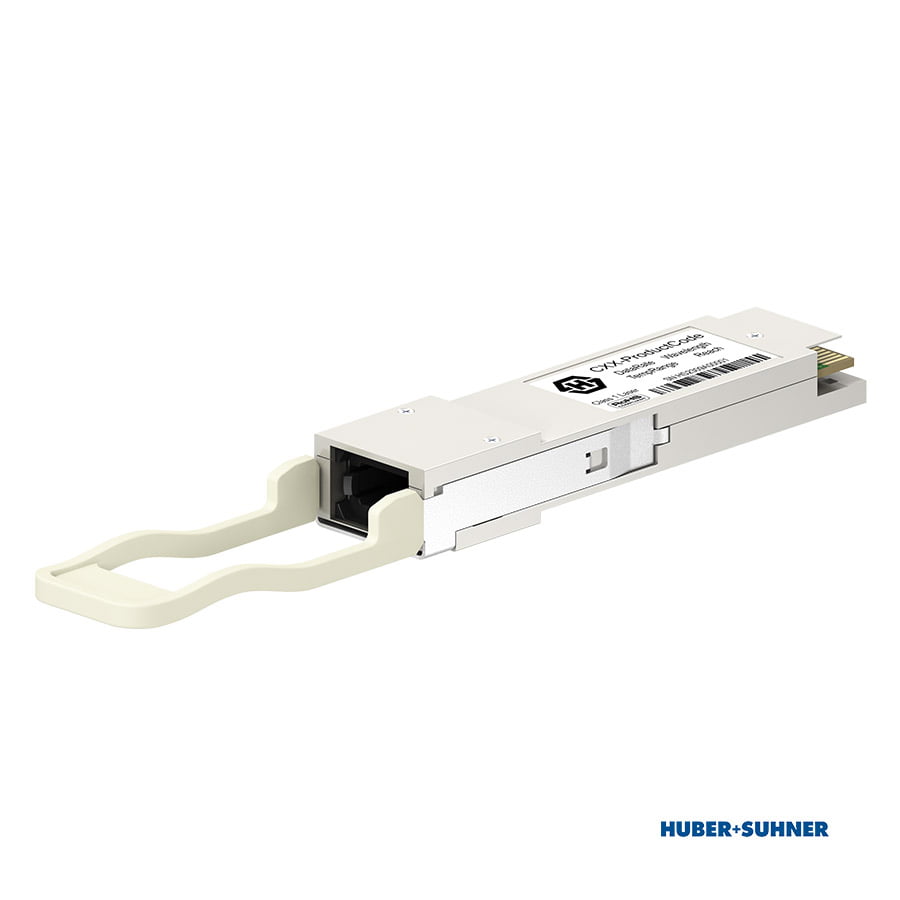

HUBER+SUHNER QSFP+ 40G SR4
40G Parallel Transceiver
HUBER+SUHNER QSFP+ 40G SR4, CQM-800A04, is a 40G Ethernet protocol Parallel transceiver, which also supports OTU3, and has a data rate of 39.8 to 44.6 Gbps.
Working with Multi Mode fibre on a wavelength of 850nm it has a reach of up to 150m and supports MPO/MTP-12 adapter.
As a Parallel Transceiver it has a parallel mode of 4x 10G SR.
Temperature range is 0-70°C and has a link budget of at least 4dB.
Technical Data
Data Rate | 40G |
---|---|
Form Factor | QSFP+ |
Distance | 150m |
Wavelength | 850nm |
Fibre Type | Multi Mode (OM4) |
Temperature Range | 0…+70°C |
Parallel Mode | 4x 10G SR |
Power Budget | 2dB |
Modulation & FEC | NRZ |
Physical Interface | MPO Flat Polished 8- or 12- Fibre Connector |
Full specifications are available from the data sheet on the PDF Downloads tab.
Part Numbers
Part Numbers
Part Number | Description |
---|---|
CQM-800A04DC-85 | QSFP+ 40G SR4 Multi Mode Parallel Transceiver – Cisco Coding |
CQM-800A04DJ-85 | QSFP+ 40G SR4 Multi Mode Parallel Transceiver – Juniper Coding |
