More About This Product
HUBER+SUHNER CQS-102A03 is a 400G QSFP-DD DR4 Parallel Transceiver
SKU: N/ACategories: Connectivity, Transceivers

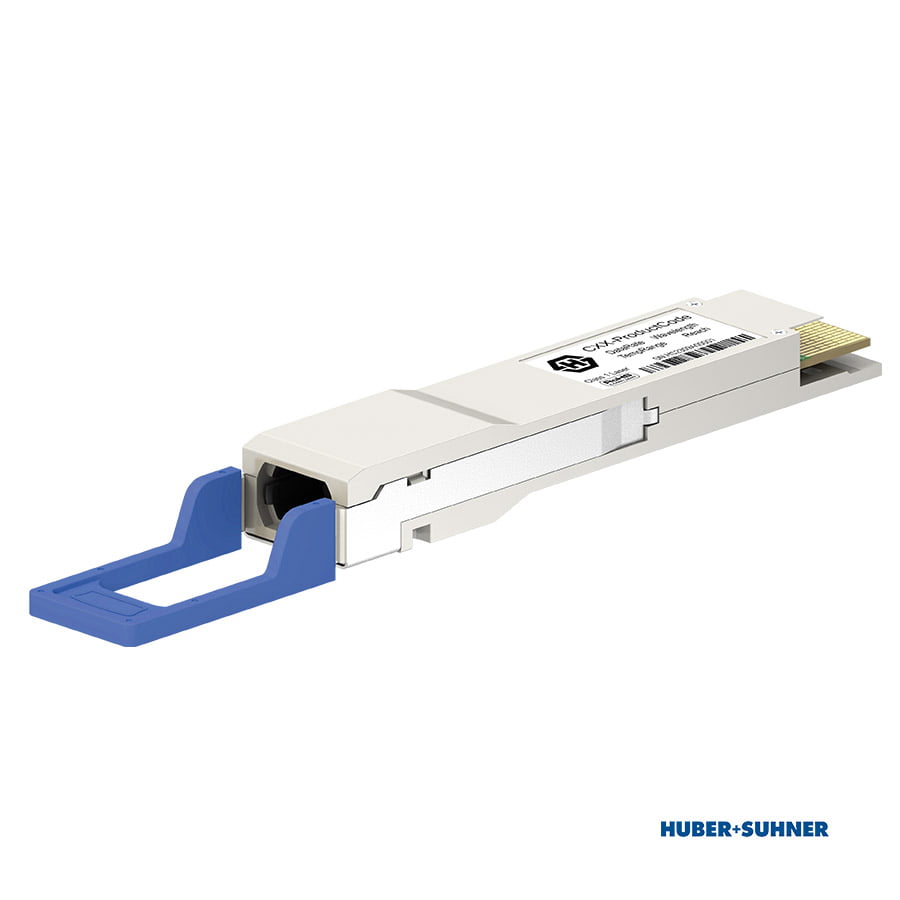

HUBER+SUHNER QSFP-DD 400G DR4
400G Parallel Transceiver
HUBER+SUHNER QSFP-DD 400G DR4, CQS-102A03, is a 400G Ethernet protocol Parallel transceiver that has a data rate of 425 Gbps.
Working with Singlemode fibre on a wavelength of 1310nm it has a reach of up to 500m and supports MPO/MTP-12 adapter.
As a Parallel Transceiver it has a parallel mode of 4x 100G DR.
Temperature range is 0-70°C and has a link budget of at least 3dB.
Technical Data
| Data Rate | 400G |
|---|---|
| Form Factor | QSFP-DD |
| Distance | 500m |
| Wavelength | 1310nm |
| Fibre Type | Singlemode (OS2) |
| Temperature Range | 0…+70°C |
| Parallel Mode | 4x 100G DR |
| Power Budget | 3dB |
| Modulation & FEC | PAM4 |
| Physical Interface | MPO 8° Angled Polished 8- or 12- Fibre Connector |
Full specifications are available from the data sheet on the PDF Downloads tab.
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| CQS-102A03DC-13 | QSFP-DD 400G DR4 Singlemode Parallel Transceiver – Cisco Coding |
| CQS-102A03DJ-13 | QSFP-DD 400G DR4 Singlemode Parallel Transceiver – Juniper Coding |
