HUBER+SUHNER CQS-100A04 is a 400G QSFP-DD FR4 LC Duplex Transceiver
SKU: N/ACategories: Connectivity, Transceivers

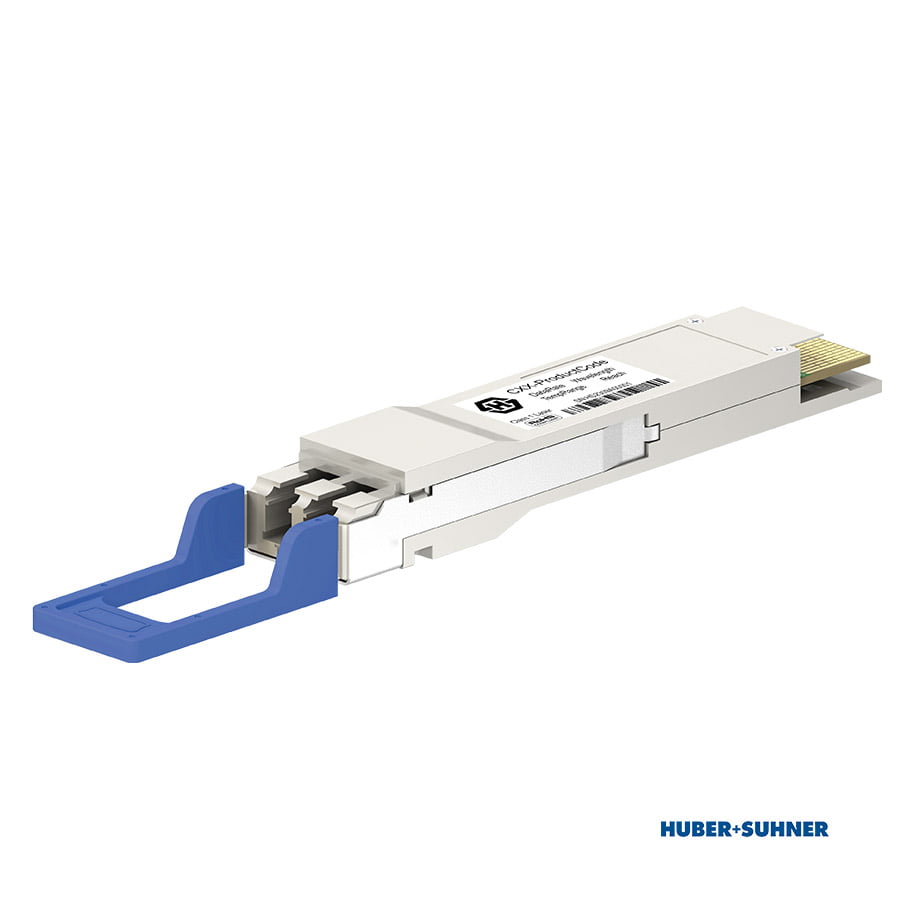

HUBER+SUHNER QSFP-DD 400G FR4
400G LC Duplex Transceiver
HUBER+SUHNER QSFP-DD 400G FR4, CQS-100A04, is a 400G Ethernet protocol LC/PC Duplex transceiver that has a data rate of 425 Gbps.
Working with Singlemode fibre on wavelengths of 1271 / 1291 / 1311 / 1331nm it has a reach of up to 2km.
Temperature range is 0-70°C and has a link budget of 4dB.
Technical Data
| Data Rate | 400G |
|---|---|
| Form Factor | QSFP-DD |
| Distance | 2km |
| Wavelength | mux /demux 1271nm, 1291nm, 1311nm, 1331nm |
| Fibre Type | Singlemode (OS2) |
| Temperature Range | 0…+70°C |
| Power Budget | 4dB |
| Modulation & FEC | PAM4 |
| Physical Interface | LC UPC Duplex |
Full specifications are available from the data sheet on the PDF Downloads tab.
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| CQS-100A04DC-13 | QSFP-DD 400G FR4 Singlemode LC Duplex Transceiver – Cisco Coding |
| CQS-100A04DJ-13 | QSFP-DD 400G FR4 Singlemode LC Duplex Transceiver – Juniper Coding |
