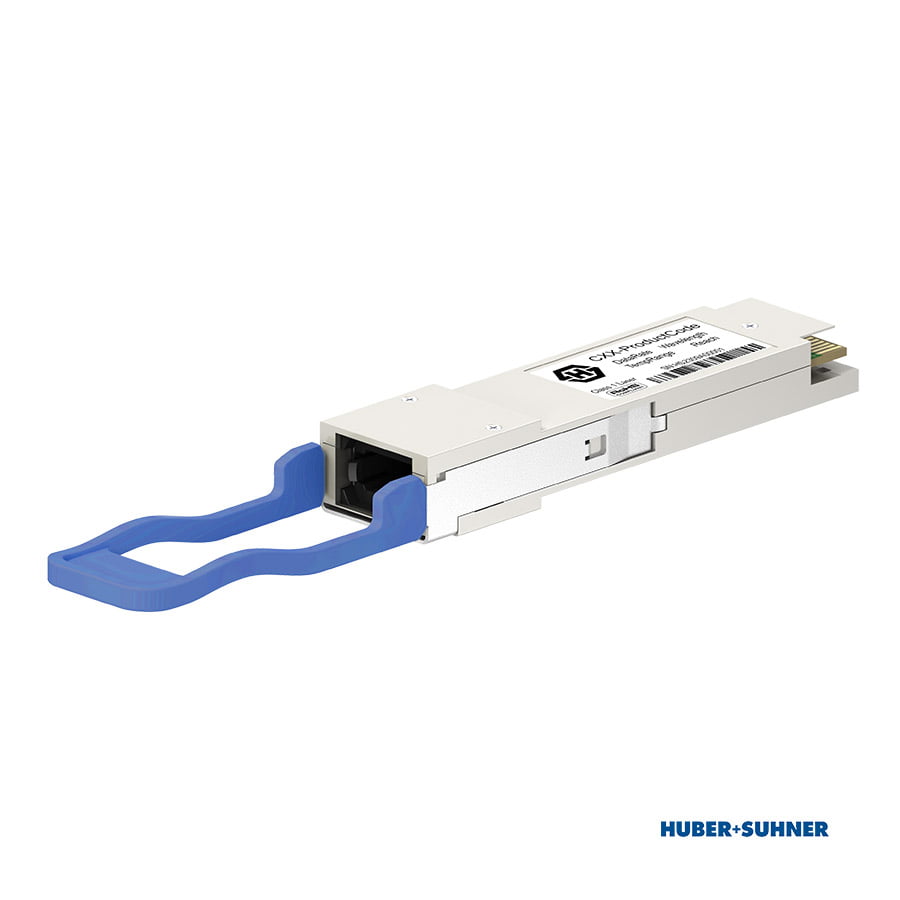

HUBER+SUHNER CQS-906A04 is a 100G QSFP28 PSM4 Parallel Transceiver
SKU: N/ACategories: Connectivity, Transceivers
HUBER+SUHNER QSFP28 100G PSM4
100G Parallel Transceiver
HUBER+SUHNER QSFP28 100G PSM4, CQS-906A04, is a 100G Ethernet protocol Parallel transceiver that has a data rate of 103.125 Gbps.
Working with Singlemode fibre on a wavelength of 1310nm it has a reach of up to 2km and supports MPO/MTP-12 adapter.
As a Parallel Transceiver it has a parallel mode of 4x 25G LR.
Temperature range is 0-70°C and has a link budget of at least 4dB.
Technical Data
| Data Rate | 100G |
|---|---|
| Form Factor | QSFP28 |
| Distance | 2km |
| Wavelength | 1310nm |
| Fibre Type | Singlemode (OS2) |
| Temperature Range | 0…+70°C |
| Parallel Mode | 4x 25G LR |
| Power Budget | 4dB |
| Modulation & FEC | PAM4 |
| Physical Interface | MPO 8° Angled Polished 8- or 12- Fibre Connector |
Full specifications are available from the data sheet on the PDF Downloads tab.
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| CQS-906A04DC-13 | QSFP28 100G PSM4 Singlemode Parallel Transceiver – Cisco Coding |
| CQS-906A04DJ-13 | QSFP28 100G PSM4 Singlemode Parallel Transceiver – Juniper Coding |
