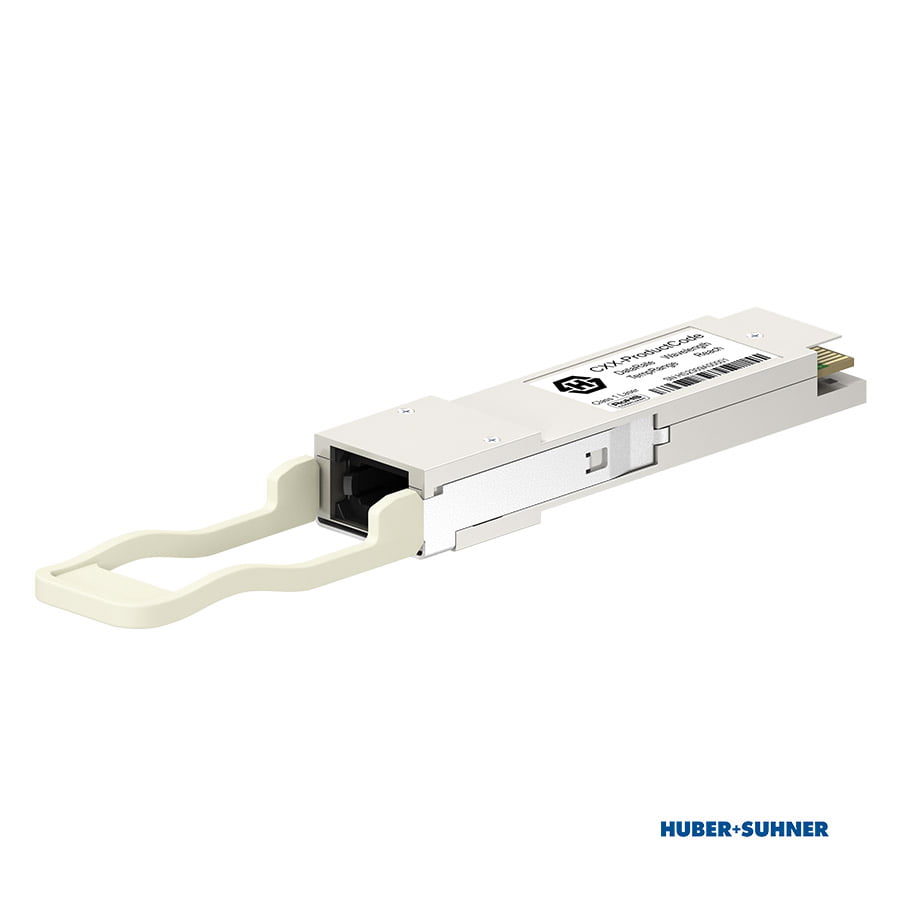

HUBER+SUHNER CQM-900A04 is a 100G QSFP28 SR4 Parallel Transceiver
SKU: N/ACategories: Connectivity, Transceivers
HUBER+SUHNER QSFP28 100G SR4
100G Parallel Transceiver
HUBER+SUHNER QSFP28 100G SR4, CQM-900A04, is a 100G Ethernet protocol Parallel transceiver that has a data rate of 103.125 Gbps.
Working with Multi Mode fibre on a wavelength of 850nm it has a reach of up to 150m and supports MPO/MTP-12 adapter.
As a Parallel Transceiver it has a parallel mode of 4x 25G SR.
Temperature range is 0-70°C and has a link budget of at least 4dB.
Technical Data
| Data Rate | 100G |
|---|---|
| Form Factor | QSFP28 |
| Distance | 150m |
| Wavelength | 850nm |
| Fibre Type | Multi Mode (OM4) |
| Temperature Range | 0…+70°C |
| Parallel Mode | 4x 25G SR |
| Power Budget | 2db |
| Modulation & FEC | NRZ |
| Physical Interface | MPO Flat Polished 8- or 12- Fibre Connector |
Full specifications are available from the data sheet on the PDF Downloads tab.
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| CQM-900A04DC-85 | QSFP28 100G SR4 Multi Mode Parallel Transceiver – Cisco Coding |
| CQM-900A04DJ-85 | QSFP28 100G SR4 Multi Mode Parallel Transceiver – Juniper Coding |
