HUBER+SUHNER CSM-900A04 is a 10G SFP+ SR LC Duplex Transceiver
SKU: N/ACategories: Connectivity, Transceivers

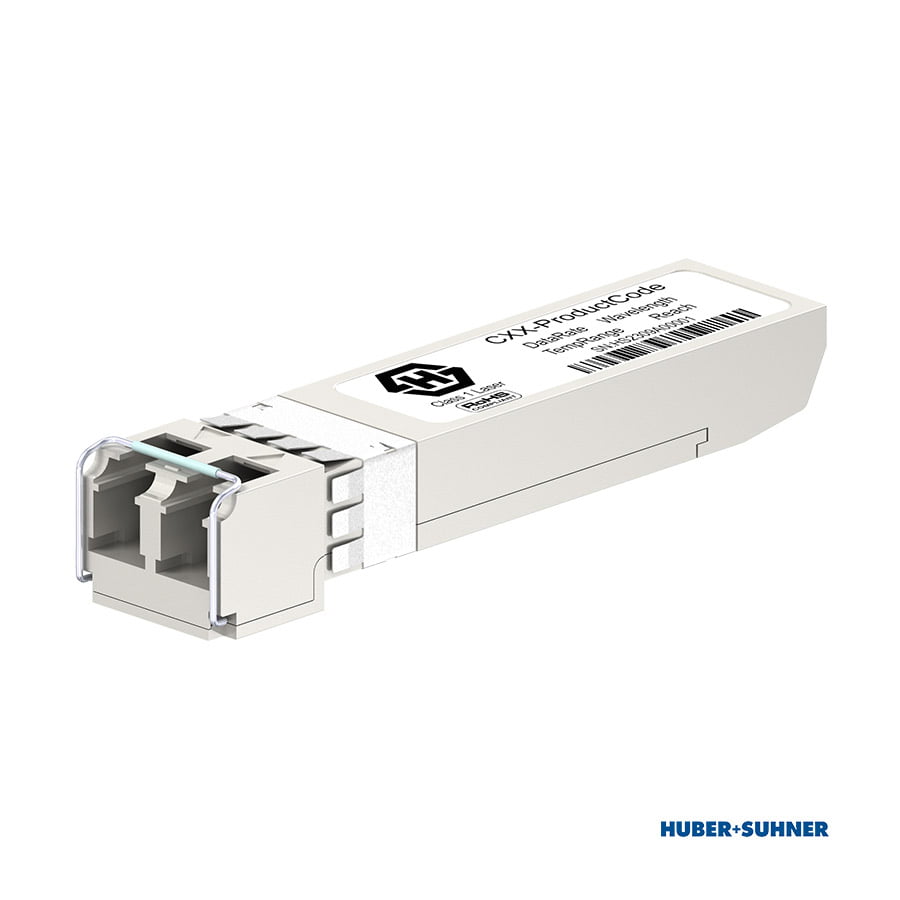

HUBER+SUHNER SFP+ 10G SR
10G LC Duplex Transceiver
HUBER+SUHNER SFP+ 10G SR, CSM-900A04, is a 10G Ethernet protocol LC Duplex transceiver that has a data rate of 1.0625 to 11.3 Gbps.
Working with Multi Mode fibre on a wavelength of 850nm it has a reach of up to 550m and supports LC/PC Duplex adapters.
Temperature range is 0-70°C and has a link budget of at least 4dB.
Technical Data
| Data Rate | 10G |
|---|---|
| Form Factor | SFP+ |
| Distance | 550m |
| Wavelength | 850nm |
| Fibre Type | Multi Mode (OM4) |
| Temperature Range | 0…+70°C |
| Power Budget | 4dB |
| Modulation & FEC | NRZ |
| Physical Interface | LC PC Duplex |
Full specifications are available from the data sheet on the PDF Downloads tab.
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| CSM-900A04DC-85 | SFP+ 10G SR Multi Mode LC Duplex Transceiver – Cisco Coding |
| CSM-900A04DJ-85 | SFP+ 10G SR Multi Mode LC Duplex Transceiver – Juniper Coding |
