More About This Product

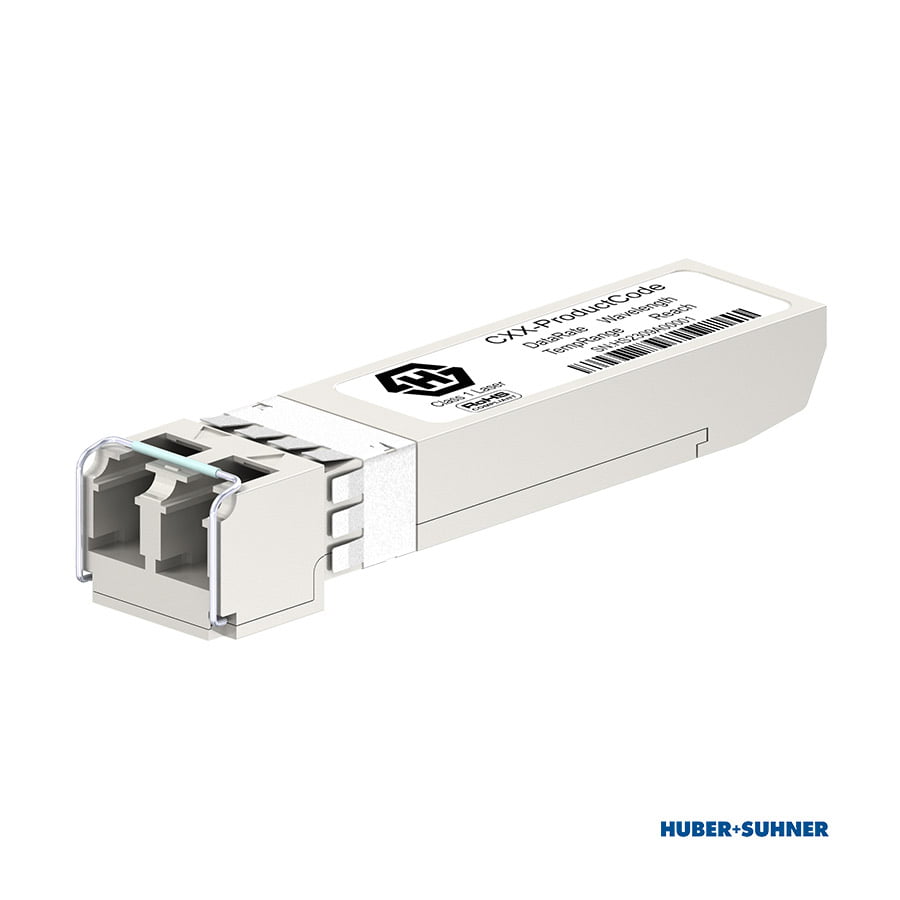

HUBER+SUHNER CSS-420A06 is a 25G SFP28 LR LC Duplex Transceiver
SKU: N/ACategories: Connectivity, Transceivers
HUBER+SUHNER SFP28 25G LR
25G LC Duplex Transceiver
HUBER+SUHNER SFP28 25G LR, CSS-420A06, is a 25G Ethernet protocol LC Duplex transceiver that has a data rate of 24.33 to 25.79 Gbps.
Working with Singlemode fibre on a wavelength of 1310nm it has a reach of up to 2km and supports LC/PC Duplex adapter.
Temperature range is 0-70°C and has a link budget of at least 6dB.
Technical Data
| Data Rate | 25G |
|---|---|
| Form Factor | SFP28 |
| Distance | 2km |
| Wavelength | 1310nm |
| Fibre Type | Singlemode (OS2) |
| Temperature Range | 0…+70°C |
| Power Budget | 5.6dB |
| Modulation & FEC | NRZ |
| Physical Interface | LC UPC Duplex |
Full specifications are available from the data sheet on the PDF Downloads tab.
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| CSS-420A06DC-13 | SFP28 25G LR Singlemode LC Duplex Transceiver – Cisco Coding |
| CSS-420A06DJ-13 | SFP28 25G LR Singlemode LC Duplex Transceiver – Juniper Coding |
