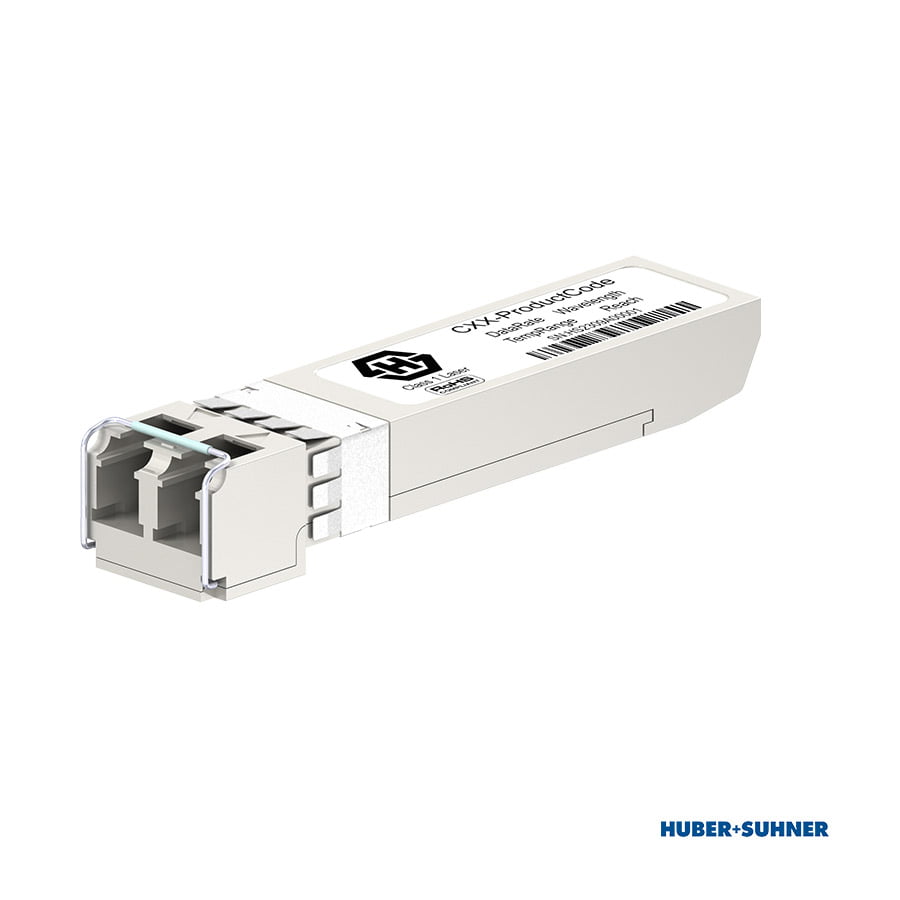

HUBER+SUHNER CSM-400A07 is a 25G SFP28 SR LC Duplex Transceiver
SKU: N/ACategories: Connectivity, Transceivers
HUBER+SUHNER SFP28 25G SR
LC Duplex Transceiver
HUBER+SUHNER SFP28 25G SR, CSM-400A07, is a LC/PC Duplex transceiver that has multi-protocol support and a data rate of 24.33 – 25.78 Gbps.
Working with Multi Mode fibre on an 850nm wavelength it reaches up to 100m.
Temperature range is 0-70°C and has a link budget of at least 7dB.
Technical Data
| Data Rate | 25G |
|---|---|
| Form Factor | SFP28 |
| Distance | 100m |
| Wavelength | 850nm |
| Fibre Type | Multi Mode (OM4) |
| Temperature Range | 0…+70°C |
| Power Budget | 7dB |
| Modulation & FEC | NRZ |
| Physical Interface | LC PC Duplex |
Full specifications are available from the data sheet on the PDF Downloads tab.
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| CSM-400A07DC-85 | SFP28 25G SR for Multi Mode 850nm – Cisco coding |
| CSM-400A07DJ-85 | SFP28 25G SR for Multi Mode 850nm – Juniper coding |
