More About This Product
EDP offers a range of high quality, affordable basic rack power distribution units (PDUs), with options available to suit your rack power requirements. Our rack power distribution units are constructed from aluminium extrusion and finished in black powder coat for maximum strength and durability, they provide a reliable and stylish managed power solution.
Categories: Basic PDUs, Power & Monitoring, Power Distribution

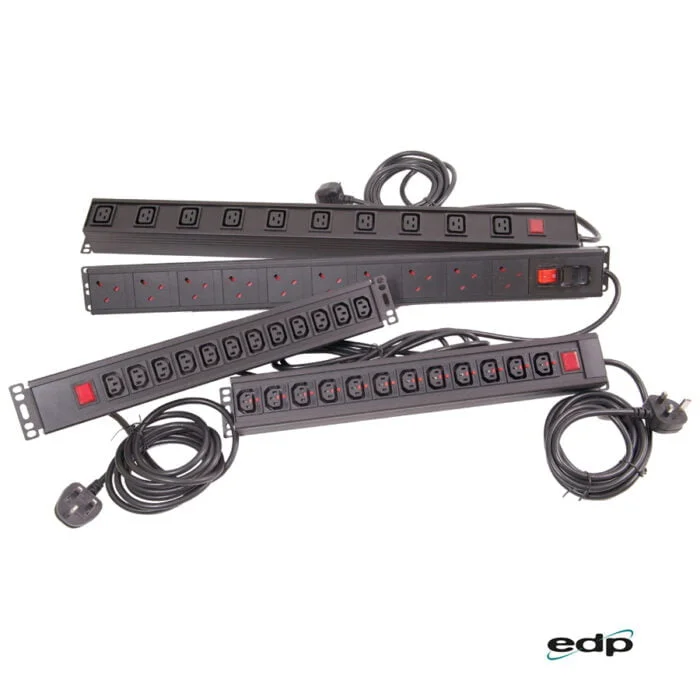

Basic rack power distribution units from EDP
EDP basic rack power distribution units or PDUs are available in either vertical or horizontal formats and can be custom built to match your exact power requirements. EDP basic rack power distribution units are constructed from aluminium extrusion and finished in black power coat for maximum strength and durability. Available with a host of options EDP can produce a power distribution unit specifically for the task required including intelligent PDUs and 3-Phase PDUs.
EDP basic rack power distribution units are supplied with either a double pole illuminated mains switch or unswitched with neon power indicator. They are supplied with 3 metre mains lead with moulded UK plug, with internal wiring rated at 16A. PDU models are available with UK, IEC-C13, Locking IEC-C13 or IEC-C19 sockets.
Options
As well as a range of standard rack power strips EDP are also able to produce customise built power distribution units with a range of options available including:
- Master Fuse.
- Mini Circuit Breaker (MCB).
- Residual Current Device (RCD).
- Individually fused C19 & C13 outlets.
- Digital ammeter.
- European power outlets
- 32A option.
- Plug options: IEC60309 (commando), IEC-C14, IEC-C20 or Schuko.
- Custom length input leads.
- Surge & RFI suppression.
Part Numbers
Part Numbers
Horizontal Single Phase PDUs
| Part Number | Description |
|---|---|
| EDP-524-N3x | 1U Horizontal PDU with 12 x C13 outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-1251-N3x | 2U Horizontal PDU with 12 x C13 and 6 x C19 outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-137-N3x | 2U Horizontal PDU with 24 x C13 outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-183-N3x | 2U Horizontal PDU with 20 x C13 Fused Neon outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-132-N3x | 1U Horizontal PDU with 10 x C13 Fused Neon outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-1557-N3x | 1U Horizontal PDU with 6 x UK outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-946-N3x | 2U Horizontal PDU with 10 x UK outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-753-N3x | 3U Horizontal PDU with 12 x UK outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-699-N3x | 1U Horizontal PDU with 16 x C13 outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
Vertical Single Phase PDUs
| Part Number | Description |
|---|---|
| EDP-551-z-y-N3x | EDP 551 Vertical UK outlet PDUs with 3m lead (see configurator to replace z and y, replace x with Plug Type code) |
| EDP-071-N3x | Vertical PDU with 12 x C13 outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-1189-N3x | Vertical PDU with 12 x C13 and 3 x C19 outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-1668-N3x | Vertical PDU with 12 x C13 and 4 x C19 outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-065-N3x | Vertical PDU with 16 x C13 outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-1070-N3x | Vertical PDU with 20 x C13 Fused Neon and 4 x C19 Fused Neon outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-109-N3x | Vertical PDU with 20 x C13 and 2 x C19 outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-1318-N3x | Vertical PDU with 30 x C13 outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
| EDP-1064-N3x | Vertical PDU with 36 x C13 and 6 x C19 outlets, 3m lead, Power Present Neon (option of Ammeter or Power Meter), Replace x with Plug Type code |
Part Number Options
| Plug Types | |
|---|---|
| A | 13A UK |
| B | 16A Commando |
| C | 32A Commando with 2 x 16A Trips |
| D | C14 |
| E | C20 |
| 551 Range Configurator | |
|---|---|
| Replace z (Cable Feed) | |
| BR | Bottom Entry, Right hand cable drop |
| BL | Bottom Entry, Left hand cable drop |
| TR | Top Entry, Right hand cable drop |
| TL | Top Entry, Left hand cable drop |
| Replace y (Outlet Qty) | |
| Number (eg 12) | Number of UK outlets |
Part Numbers TO REMOVE
Part Numbers
Vertical PDUs with UK Sockets
- 48-V6UK13A – Vertical rack PDU 6 UK sockets, 13A UK Plug
- 48-V10UK13A – Vertical rack PDU 10 UK sockets, 13A UK Plug
- 48-V12UK13A – Vertical rack PDU 12 UK sockets, 13A UK Plug
- 48-V16UK13A – Vertical rack PDU 16 UK sockets, 13A UK Plug
- 48-V20UK13A – Vertical rack PDU 20 UK sockets, 13A UK Plug
Vertical PDUs with IEC C13 Sockets
- 48-V12C1313A – Vertical rack PDU 12 IEC C-13 sockets, 13A UK Plug
- 48-V16C1313A – Vertical rack PDU 16 IEC C-13 sockets, 13A UK Plug
- 48-V20C1313A – Vertical rack PDU 20 IEC C-13 sockets, 13A UK Plug
- 48-V24C1313A – Vertical rack PDU 24 IEC C-13 sockets, 13A UK Plug
- 48-V30C1313A – Vertical rack PDU 30 IEC C-13 sockets, 13A UK Plug
Vertical PDUs with Locking IEC C13 Sockets
- 48-V12C13LK13A – Vertical rack PDU 12 locking IEC C-13 sockets, 13A UK Plug
- 48-V16C13LK13A – Vertical rack PDU 16 locking IEC C-13 sockets, 13A UK Plug
- 48-V20C13LK13A – Vertical rack PDU 20 locking IEC C-13 sockets, 13A UK Plug
- 48-V24C13LK13A – Vertical rack PDU 24 locking IEC C-13 sockets, 13A UK Plug
Vertical PDUs with IEC C19 Sockets
- 48-V12C1913A – Vertical rack PDU 12 IEC C-19 sockets, 13A UK Plug
- 48-V16C1913A – Vertical rack PDU 16 IEC C-19 sockets, 13A UK Plug
- 48-V20C1913A – Vertical rack PDU 20 IEC C-19 sockets, 13A UK Plug
- 48-V24C1913A – Vertical rack PDU 24 IEC C-19 sockets, 13A UK Plug
Horizontal PDUs
- 48-H4UK13A – 1.5U Horizontal rack PDU 4 UK sockets, 13A UK Plug
- 48-H6UK13A – 1.5U Horizontal rack PDU 6 UK sockets, 13A UK Plug
- 48-H10C1313A – 1.5U Horizontal rack PDU 10 IEC C-13 sockets, 13A UK Plug
- 48-H10C1313A – 1.5U Horizontal rack PDU 10 IEC C-13 sockets, 13A UK Plug
- 48-H12C1313A – 1.5U Horizontal rack PDU 12 IEC C-13 sockets, 13A UK Plug
- 48-H10C13LK13A – 1U Horizontal rack PDU 10 locking IEC C-13 sockets, 13A UK Plug
- 48-H12C1913A1U – 1U Horizontal rack PDU 12 IEC C-19 sockets, 13A UK Plug
- 48-H10C1913A – 1.5U Horizontal rack PDU 12 IEC C-19 sockets, 13A UK Plug
