Dataprobe iBoot DC is a DC powered web power switch which can remotely turn on/off power to DC equipment.
IBoot DC – DC Powered Web Power Switch
Remotely turn on/off DC devices
Dataprobe iBoot DC is designed to provide remote power control to DC powered equipment. iBoot DC supports both +VDC and -VDC systems and is designed to minimise downtime and reduce the expense of costly site visits to simple cycle power.
Like the AC powered versions, iBoot G2/iBoot G2+ and iBoot G2S, iBoot DC features AutoPing that automatically checks for network connectivity and takes automatic action to cycle power if the connection fails. It also features real-time scheduling so that fresh power can be rebooted each morning or switch off at night to reduce power wastage.

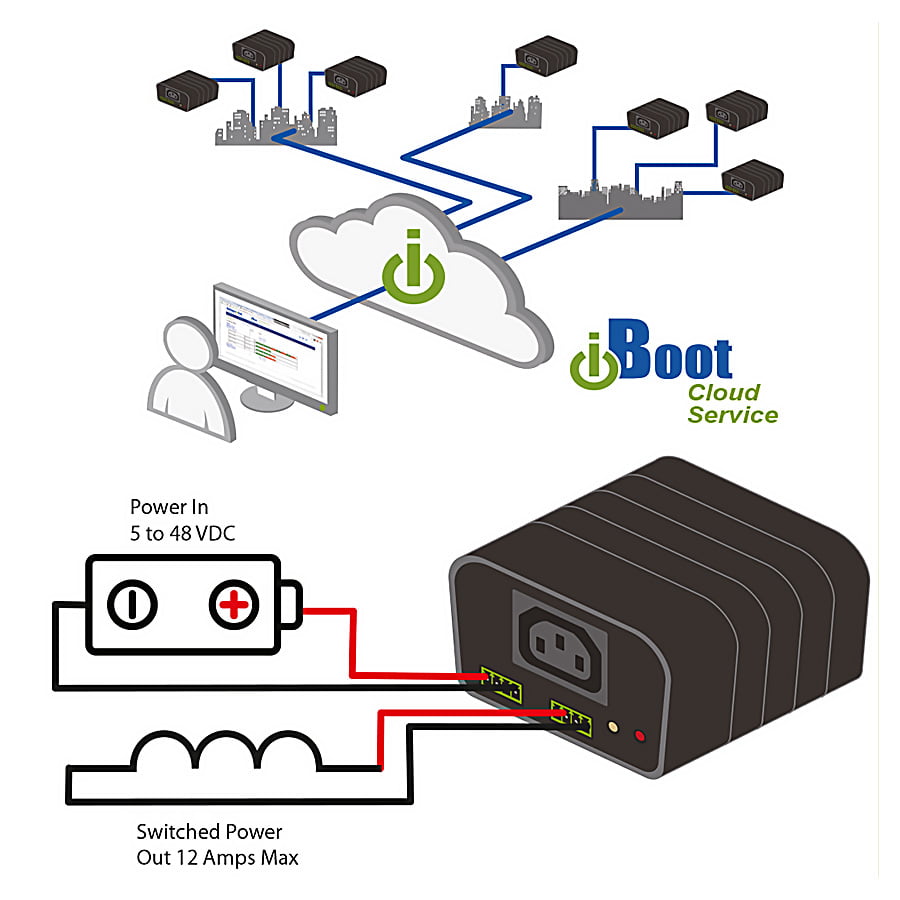

Dataprobe iBoot DC can be accessed directly through a web browser or can be controlled with other iBoots through a single sign-on using the free iBoot Cloud Service.
Features & Benefits
Features & Benefits
- Simple access via standard web browser.
- Free Cloud Service to manage an unlimited number of iBoots from a single login.

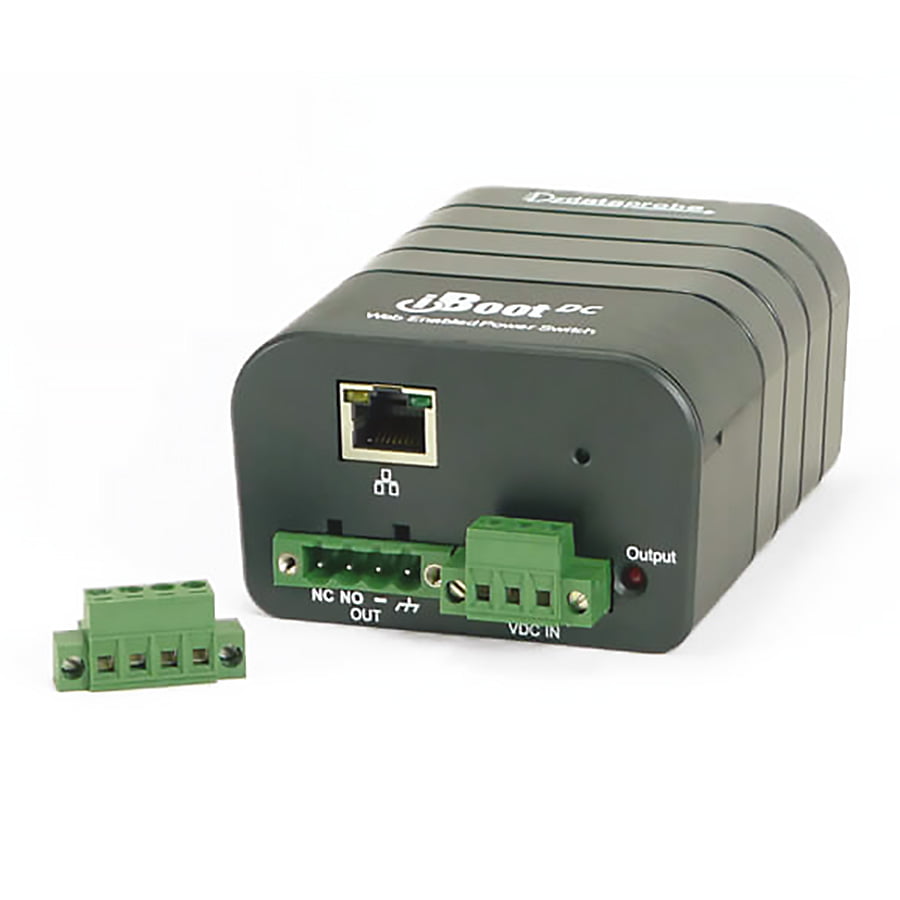

- Uses removable screw terminal connections for the DC input and switched output connection.
- Supports 10/100 Ethernet using the cable supplied.
- Accepts negative (relative to ground) power source.
- AutoPing detects network or equipment outage and takes immediate action to restore your network or device.
- Real-time scheduling to have a fresh reboot each morning or minimise power waste at night.
- 5 – 48 VD Power Control.
- Up to 12 Amp Switched.
Specifications
Specifications
- Physical: H x W x D: 2.0” x 3.2” x 4.2” (60mm x 82mm x107mm)
- Operating Temperature: 0 to 50 °C
- Power: 5 – 48 VDC Auto Ranging | +VDC and -VDC Systems Supported
- Power Switching: 12 Amps up to -29.9 to 29.9 VDC | 2 Amps -48 to -30 VDC | 2 Amps +30 to +48 VDC | Positive Terminal Switched | Negative Switched Available on Special Order
- Network: 10/100 Base-T, Autosensing Uplink/Downlink | Cat 5 Cable Included 6’/2m long
- Reliability: MTBF 360,000 Hours | Operating Cycles 10,000,000 Mechanical. 100,000 Maximum Load
- Security: Dual Password Protected, User and Admin and Custom Web Port
