More About This Product
The Dataprobe iBoot G2S has a built-in 10/100 network switch that makes it the ideal solution for installation in difficult to reach locations. No need for a separate cable run or router port to get the cost savings of remote reboot. Dataprobe iBoot G2S is the perfect solution for kiosks, media players or wherever a dedicated router port is hard to come by.

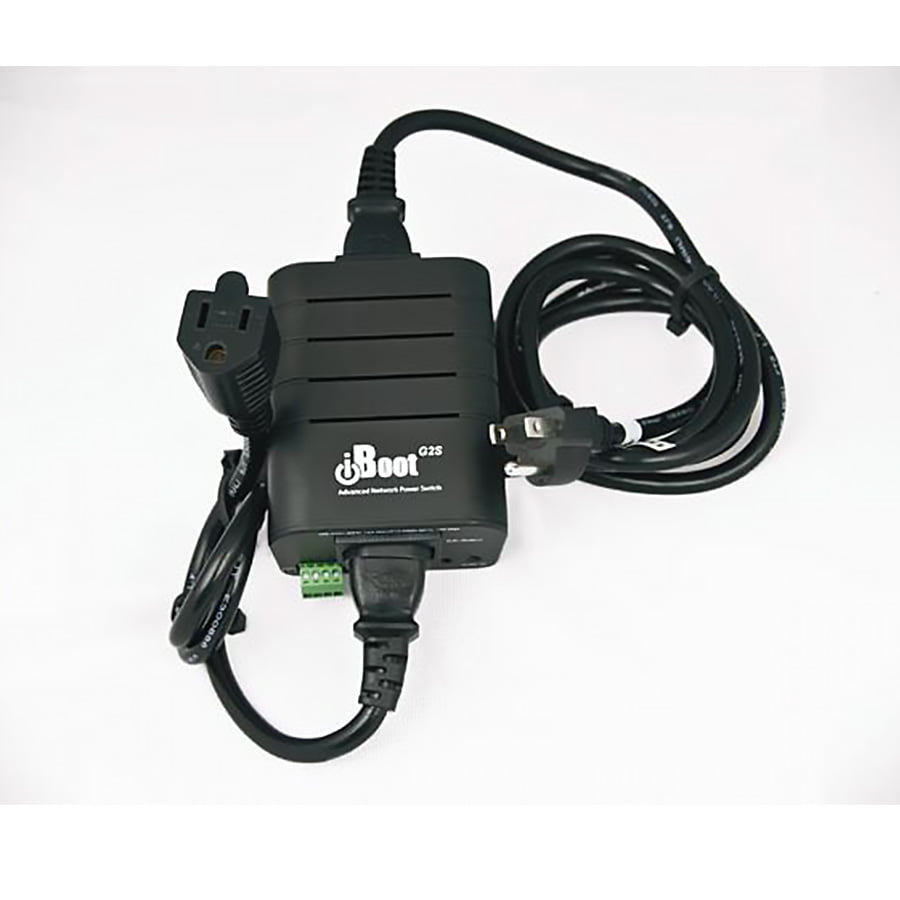

Dataprobe iBoot G2S with built-in 10/100 network switch
Perfect for remote locations where there is no router ports
The Dataprobe iBoot G2S, like the iBoot G2+ can be expanded using the iBoot EXP to control up to 3 outlets but has the added benefit of having a built-in 10/100 network switch.

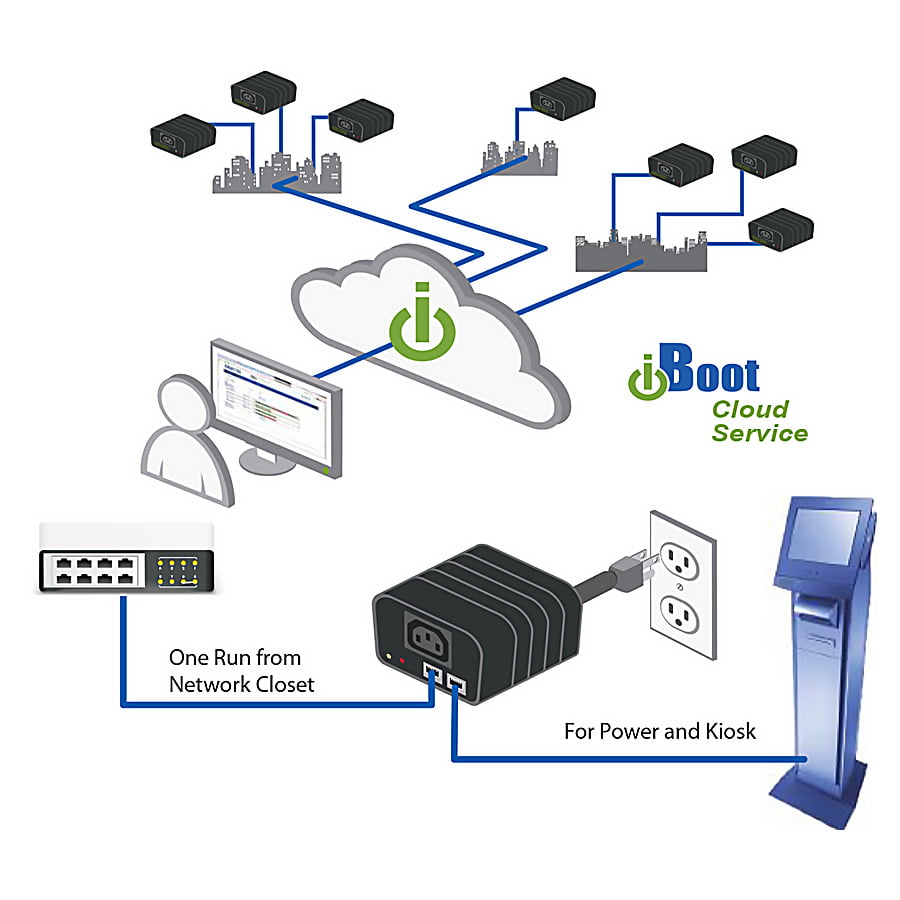

This makes it even easier to add remote power cable to your existing installation without the need to add an unnecessary cable run to the wiring closet. This makes it the perfect solution for digital signage, kiosks and telemetry systems in difficult to reach locations. Putting the iBoot in-line between the router and the server makes it easy to test both and reboot automatically.
Like other iBoots the iBoot G2S features AutoPing that automatically monitors and protects your network. By continuously pinging it tests the connectivity to the internet or to any device on your network. If the network is down or the device stops functioning iBoot reboots the failed system. For servers, the Heartbeat service generates a “I’M OK” message from your server to iBoot. When that message dissapears, iBoot will reboot the server, using Graceful Shutdown if possible prior to using power off to reboot the crashed system.
With iBoot’s real time scheduler, you can use regular reboots to insure a fresh start each day. Power Up and Down equipment as needed to minimise energy consumption, heat and extend product life. Turn off equipment automatically when not needed for security and access control.
Features & Benefits
Features & Benefits
- Simple Web Browser Operation, simply point your browser to the iBoot and once logged in you can control power to the connected device.
- Functions are easy to configure from the browser.
- Free Cloud Service enables management of an unlimited number of iBoots from a single login.
- Two port 10/100 network switch built-in eliminating extra cables for an easier installation.
- Inlcudes two customiseable external I/O to expand to 3 outlets.
- USB port for direct serial control and programmable shutdown prior to auto power reboot.
- AutoPing detects network or equipment outage and takes immediate action to restore your network or device.
- Real time scheduling to have a fresh reboot each morning or minimise power waste at night.
Specifications
Specifications
- Physical: H x W x D: 2.0” x 3.2” x 4.2” (60mm x 82mm x107mm)
- Operating Temperature: 0 to 50 °C
- Power: 105 – 240 VAC Auto Ranging
- Power Switching: 12 Amps at 105-125 VAC | 10 Amps at 210-240 VAC Includes cables for North America (NEMA 5-15)
- Network: 2 Port 10/100 Base-T, Autosensing Uplink/Downlink | Cat 5 Cable Included 6’/2m long
- Serial: USB Mini-B Com Port, 9600 8 N 1, cable included
- Reliability: MTBF 320,000 Hours | Operating Cycles 10,000,000 Mechanical. 100,000 Maximum Load
- Security: Dual Password Protected, User and Admin and Custom Web Port
- Compliance: RoHS/WEEE FCC Part 15 Class B UL/cUL UL60950 Listed I.T.E File No. E225914 CE Directives 89/336/EEC, 92/31/EEC and 93/68/EEC
