The TZ SlideHandle™ electronic door lock for racks is an intelligent locking device that can be retro-fitted to legacy Data Centre IT racks to provide a means of secure, access control. The TZ SlideHandle™ uses a high load Shape Memory Alloy (SMA) actuated locking mechanism and can be used with the TZ Centurion™ or TZ Praetorian™ rack access control systems.

Add to quote

Categories: Rack Access Control, Security

TZ SlideHandle™ – Electronic Door Lock For Racks

The TZ SlideHandle™ provides an electronic door lock for racks that can be retro fitted to most IT racks which use the industry standard 25mm wide handle openings, including racks from APC, CPI, Dell, Rittal, IBM, HP, Panduit and more.

The TZ SlideHandle™ uses a high load Shape Memory Alloy (SMA) actuated locking mechanism and can be used with the TZ Centurion™ or TZ Praetorian™ rack access control systems. The TZ SlideHandle™ has a touch to release option, multi-colour LED door status indicator, manual key override and an RJ45 connector. The TZ SlideHandle™ is powered and controlled via standard UTP cabling through the TZ Centurion™ Bridge or TZ Praetorian™ Junction.

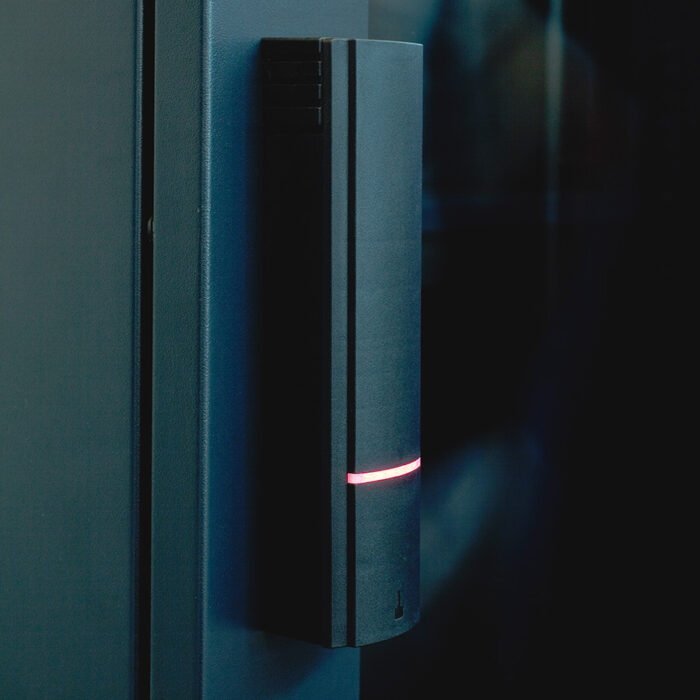

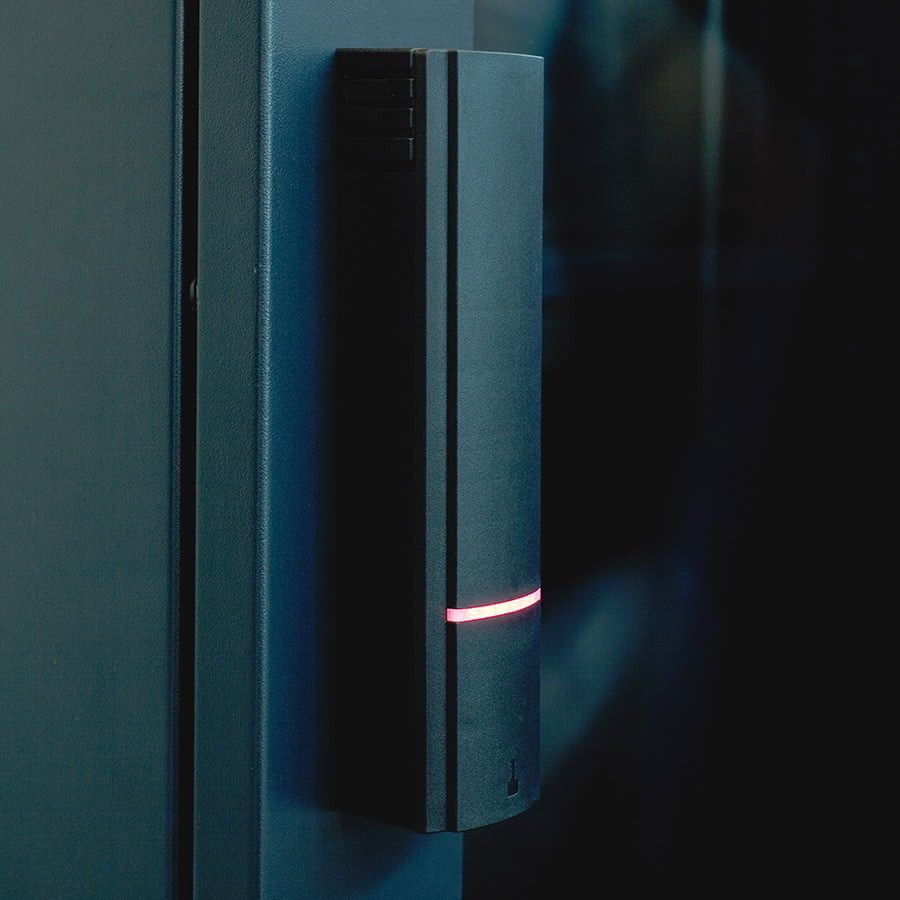

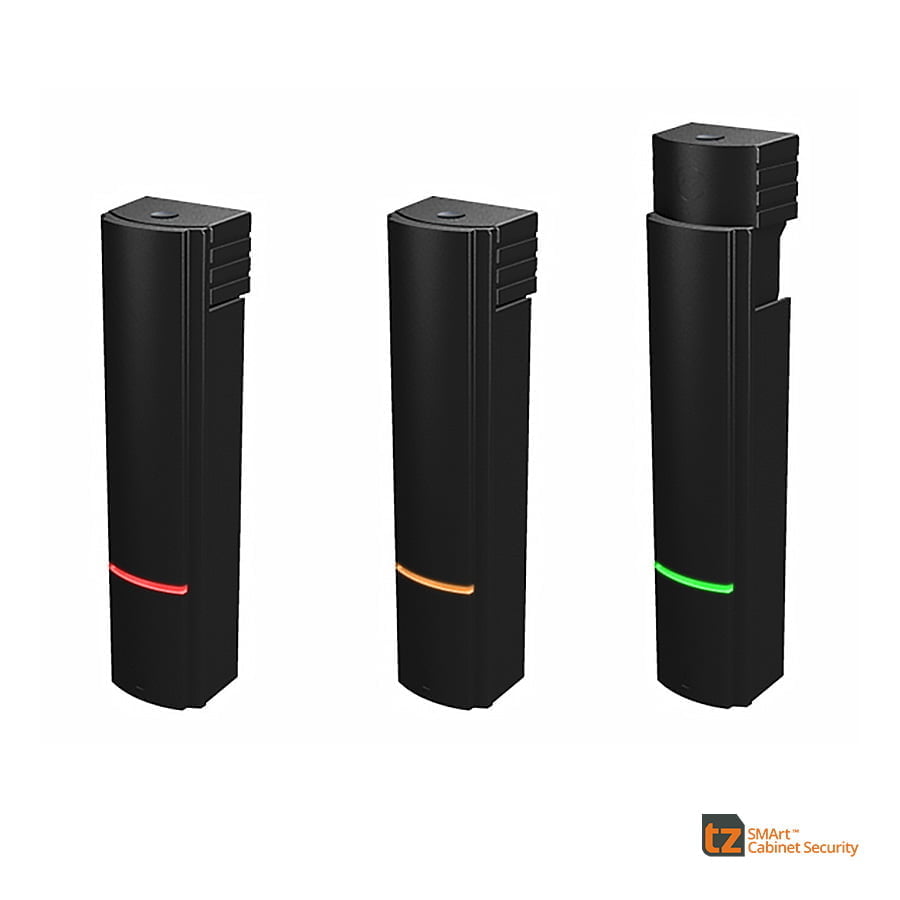

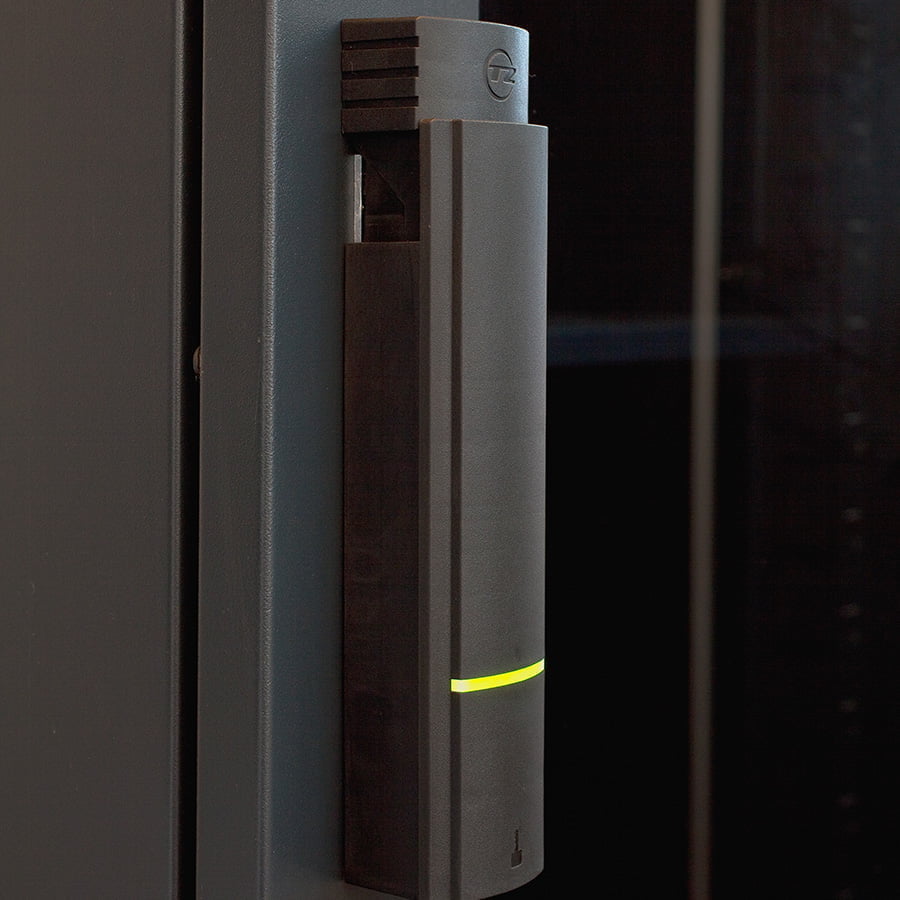

The TZ SlideHandle™ has a surface mount design that retro fits to most rack brands that use the 25mm wide handle openings, and is compatible with single-point and multi-point latching as well as split French doors. The lock integrates a manual key override which can be used to unlock the door in the event of power failure. Integrated electronics and sensors report on the true door status, including manual override mode or forced entry and provides a complete audit trail of rack entry. The coloured LED provides a visual door status indication: Red for locked, Amber to show the rack is ready to be unlocked and Green when the rack is unlocked.

Features & Benefits

TZ SlideHandle™ provides a retro fit electronic lock for IT racks.
Simple surface mount installation on the outside of the door and fits most IT racks using the industry standard 25mm wide opening.
Locking mechanism provides industry standard one quarter turn action.
High load, SMA actuated locking mechanism with touch to release function.
Incorporates manual key override.
Multi-coloured LED indicator provides visual door status.
Powered and controlled by the TZ Centurion™ Bridge or TZ Praetorian™ Junction.
External sensors for status (locked / closed, unlocked / closed, unlocked / open, locked / open).

Part Numbers

TZ SlideHandle™ Electronic Locks

TZ SlideHandle™ Electronic Locks

Part Number	Description
48-112479.03	TZ Slidehandle (.03) 4271CF
48-112479.04	TZ Slidehandle (.04) 4272CF
48-112479.07	TZ Slidehandle (.07) 4271CF-R
48-112479.08	TZ Slidehandle (.08) 4272CF-R

Override Cylinder Locks

Override Cylinder Locks

Part Number	Description
48-112461.01	TZ Slidehandle Lock Cylinder Kit (Key 01)
48-112461.05	TZ Slidehandle Lock Cylinder Kit (Key 05)
48-112461.26	TZ Slidehandle Lock Cylinder Kit (Key 26)
48-112461.27	TZ Slidehandle Lock Cylinder Kit (Key 27)

Mounting Kits

Mounting Kits

Part Number	Description
48-112502.01	TZ Mounting Kit, Knurr
48-112505.01	TZ Mounting Kit, 04 Standard
48-112483.01	TZ Mounting Kit, HP XP24000
48-112475.01	TZ Mounting Kit, 04 with Blanking Plate
48-112466.01	TZ Mounting Kit, Wrightline Paramount
48-112827.01	TZ Mounting Kit, Wrightline Vantage S2
48-112525.01	TZ Mounting Kit, Rittal TS8 Split Door
48-112482.01	TZ Mounting Kit, Rittal TS8 Single Door
48-112821.01	TZ Mounting Kit, Rittal Single or Split, Hex Mesh
48-112526.01	TZ Mounting Kit, CPI Non Swing Handle Single Door or Similar
48-112642.01	TZ Mounting Kit, Panduit Net Access Dual-Hinge Door with Cable Management
48-112642.02	TZ Mounting Kit, Panduit Net Access Dual-Hinge Door NO Cable Management
48-112665.01	TZ Mounting Kit, RF Mode Non Standard Cutout
48-112733.01	TZ Mounting Kit, Swing Handle with Gearbox
48-112765.01	TZ Mounting Kit, IBM Cabinet w/ Southco Compression Latch
48-112766.01	TZ Mounting Kit, Hitachi VSP, Single Point
48-112767.01	TZ Mounting Kit, Hitachi AMS 2500 w/ Slam Lock
48-112834.01	TZ Mounting Kit, EMC Symmetrix with Compression Latch
48-112723.01	TZ Mounting Kit, Gesab Eglon V2
48-112640.01	TZ Mounting Kit, HP 10000 Series G1 Single Door (Left Hinge)
48-112641.01	TZ Mounting Kit, HP 10000 Series G1 Split Door
48-112484.01	TZ Mounting Kit, HP 10000 Series G2 Single Door (Left Hinge)
48-112535.01	TZ Mounting Kit, HP 10000 Series G2 Split Door

Electronic Door Locks For Racks

TZ SlideHandle – Electronic Door Locks For Racks

Below gives an indication of which TZ SlideHandle and mounting kit should be use with which racks

Electronic Door Locks For APC Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
NetShelter SX, Single Door, Left Hinge	48-112479.08	Not Required
NetShelter SX, Single Door, Right Hinge	48-112479.04	Not Required
Net Shelter SX, Split Door	48- 112479.04	Not Required
VX Seismic, Single or Split Door	48- 112479.04	Not Required

Electronic Door Locks For Belden Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
XSF, SMF, XME, XMER, with Swing Handle, Right Hinge	48-112479.04	Not Required
XSF, SMF, XME, XMER, with Swing Handle, Left Hinge	48-112479.08	Not Required

Electronic Door Locks For Chatsworth – CPI Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
TeraFrame (F-series & N-series)	48-112479.04	Not Required
SteelFrame (T-series), Single or Split Door	48-112479.04	Not Required
SteelFrame (Gen 1) with Cam Lock, Single Door	48-112479.04	48-112526.01
MegaFrame, Single Door	48-112479.04	48-112526.01
GlobalFrame, Single Door	48-112479.04	Not Required
GlobalFrame, Split Door	48-112479.04	Not Required

Electronic Door Locks For Dell Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
4210	48-112479.04	48-112525.01

Electronic Door Locks For EMC Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
EMC Symmetrix with Compression Latch, Right or Left Hinge	48-112479.04	48-112834.01

Electronic Door Locks For Gesab Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
Eglon V2	48-112479.04	48-112723.01

Electronic Door Locks For Great Lakes Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
Lake Effect	48-112479.04	Not Required
E-Series	48-112479.04	Not Required
ES-Series	48-112479.04	Not Required

Electronic Door Locks For Hitachi Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
AMS 2500 H5 with Slam Lock	48-112479.04	48-112767.01
VSP with Single Point Lock	48-112479.04	48-112766.01

Electronic Door Locks For Hoffman Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
Net Series, Single Door, Left Hinge	48-112479.08	48-112505.01
Net Series, Single Door, Right Hinge	48-112479.04	48-112505.01
Net Series, Split Door	48-112479.04	48-112505.01

Electronic Door Locks For HP Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
10000 Series G2, Single Door, Left Hinge	48-112479.07	48-112484.01
10000 Series G2, Split Door	48-112479.08	48-112535.01
10000 Series G1, Single Door, Left Hinge	48-112479.07	48-112640.01
10000 Series G1, Split Door	48-112479.08	48-112641.01

Electronic Door Locks For IBM Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
Netbay with Compression Latch	48-112479.04	48-112765.01

Electronic Door Locks For IMS Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
Titan DT, Single Door, Right Hinge	48-112479.04	Not Required
Titan DT, Single Door, Left Hinge	48-112479.08	Not Required
Titan DT, Split Door with Gear Box	48-112479.04	48-112733.01

Electronic Door Locks For Knurr Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
Miracel, Single Door, Multi-Point Latch	48-112479.04	48-112502.01

Electronic Door Locks For Ortronics Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
Mighty Mo with Swing Handle, Right Hinge	48-112479.04	48-112505.01
Mighty Mo with Swing Handle, Left Hinge	48-112479.08	48-112505.01

Electronic Door Locks For Panduit Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
Net Access (CS1, CS2, CN1, CN2, CN4, CN5), Single Door, Left Hinge	48-112479.08	48-112533.01
Net Access (CS1, CS2, CN1, CN2, CN4, CN5), Single Door, Right Hinge	48-112479.04	48-112533.01
Net Access (CS1, CS2, CN1, CN2, CN4, CN5), Split Door	48-112479.04	48-112533.01
Net Access, Dual Hinging Door using Both Hinges, Left Hinge	48-112479.08	48-112642.01
Net Access, Dual Hinging Door using Both Hinges, Right Hinge	48-112479.04	48-112642.01
Net Access, Dual Hinging Door using One Hinge Only, Left Hinge	48-112479.08	48-112642.02
Net Access, Dual Hinging Door using One Hinge Only, Right Hinge	48-112479.04	48-112642.02
Net-Serv, Single Door, Left Hinge	48-112479.08	48-112533.01
Net-Serv, Single Door, Right Hinge	48-112479.04	48-112533.01
Net-Serv, Split Door	48-112479.04	48-112533.01

Electronic Door Locks For RF Mote Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
RFM Series Cabinets with Paddle Latch, Left Hinge	48-112479.08	48-112665.01

Electronic Door Locks For Rittal Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
TS-8, Single or Split Door, Comfort Handle, Right Hinge, Solid or Diamond Mesh Door	48-112479.03	48-112482.01
TS-8, Single or Split Door, Comfort Handle, Left Hinge, Solid or Diamond Mesh Door	48-112479.07	48-112482.01
TS-8, Single or Split Door, Comfort Handle, Right Hinge, Solid or Hex Mesh Door	48-112479.03	48-112821.01
TS-8, Single or Split Door, Comfort Handle, Left Hinge, Solid or Hex Mesh Door	48-112479.07	48-112821.01
TS-8, Split Door, Slam Lock	48-112479.04	48-112525.01

Electronic Door Locks For Wrightline Racks

Description	SlideHandle Part Number	Mounting Kit Part Number
Paramount, Single Door, Left Hinge	48-112479.04	48-112466.01
Paramount, Split Door	48-112479.08	48-112466.01
Vantage S2, Single Door, Left Hinge	48-112479.08	48-112466.01
Vantage S2, Split Door	48-112479.08	48-112466.01
