The Multi-Mode LC-XD Duplex fibre patch cord from HUBER+SUHNER are available for OM4 fibre type and utilises an extended lever for easier port identification and handling making it the ideal LC Duplex fibre patch cord for use in high-density network installations.
LC-XD Duplex Fibre Patch Cord
HUBER+SUHNER Multi-Mode LC-XD Duplex Fibre OM4 Patch Cords

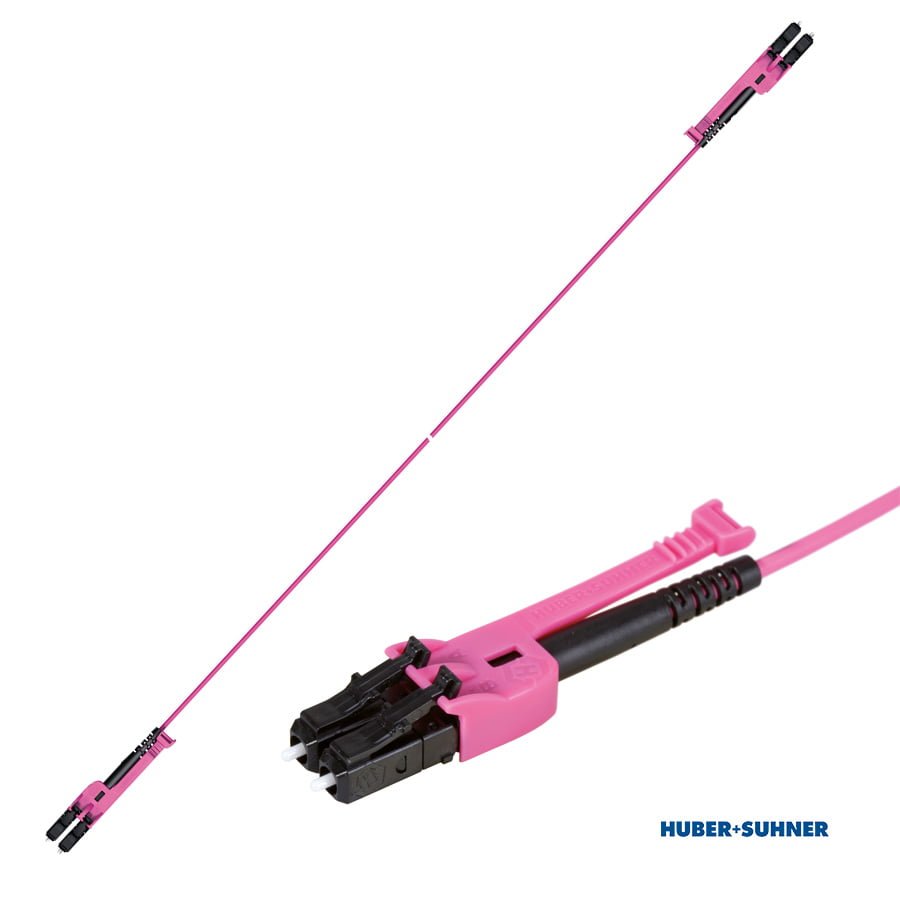

The innovative LC-XD Duplex fibre patch cord sets a new standard for packing densities and handling in Data Centres and Enterprise IT rooms. With the LC connector established because for its size and very reliable connection quality, the LC-XD connector from HUBER+SUHNER further enhances this thanks to its extended lever.
The extended lever on the HUBER+SUHNER LC-XD connector provides a stable grip that improves handling, particularly in high-density application. The lever controls the push-pull mechanism making it easier to install and remove. Clip-on port numbers can be attached to the end of the lever that makes identifying ports easier making the LC-XD Duplex fibre patch cord the ideal solution in highly-populated cross-connect racks and patching frames.
HUBER+SUHNER LC-XD Duplex fibre patch cords are available in Multi-Mode OM4 patch leads, as well as in Single Mode UPC or APC versions, in a range of lengths from 1m to 30m.
Characteristics of H+S LC-XD Duplex Fibre Patch Cords
- Push-pull mechanism for best handling and highest packing density.
- Stable lever with anti-grip design and marking possibility.
- Patented (US 8.221.007).
- Sophisticated design for easy termination.
- Short rigid length.
- Two connections in one SC-shaped adapter.
- Polarity flipping without tool.
- Compatible to standard (6.25mm) and mini LC (5.25mm) adapters and transceivers.
- Cable low smoke and free of halogen (LSFH). .
- Available in various lengths from 1m to 30m.
Specifications
Specifications
Technical Data
| Cable Diameter (Ø) | 2.1mm |
|---|---|
| Design acc. to IEC 61754-20 and TIA 604-10-A | Compliant |
| Thermal & Mechanical Tests acc. to IEC 61753-1 | Fulfilled |
| Side load acc. to GR-326-CORE | Fulfilled |
| Tensile Load | 70N |
| Operating Temperature | -25 to +70°C |
| Durability | Min. 1000 mating cycles |
| Material | Flame retardant acc. to UL 94 V-0 |
| Halogen Free | Yes |
| Chemical Resistance | Good |
| RoHS Guidelines 2011/65/EU | Compliant |
Optical Values
| Measurement method (IL/RL) | IL (dB) | RL (dB) | |
|---|---|---|---|
| SM UPC | IL tested per IEC 61300-3-4 method B RL tested per IEC 61300-3-6 | ≤ 0.30 | ≥ 50 |
| SM APC | ≥ 65 | ||
| MM OM4 | IL tested per IEC 61300-3-34 method C RL tested per IEC 61300-3-6 | ≤ 0.30* | ≥ 35 |
*Measurement of the whole assembly
Part Numbers
Part Numbers
LC-XD OM4 Patch Cords
| Part Number | Description |
|---|---|
| 85011862 | 1m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85019837 | 2m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85019838 | 3m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85021394 | 3.5m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85019950 | 4m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85019839 | 5m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85021395 | 6m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85021396 | 7m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85086496 | 8m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85086497 | 9m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85019840 | 10m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85103030 | 11m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85126556 | 12m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85153271 | 13m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85147029 | 14m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85021397 | 15m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85126557 | 16m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85153272 | 17m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85145248 | 18m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85153273 | 19m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85021398 | 20m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85025988 | 25m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
| 85025989 | 30m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Multi Mode, OM4, A-B/B-A Polarity |
