More About This Product
The Single Mode APC UPC LC-XD Duplex fibre patch cord from HUBER+SUHNER utilise an extended lever for easier port identification and handling making it the ideal LC Duplex fibre patch cord for use in high-density network installations.
LC-XD Duplex Fibre Patch Cord

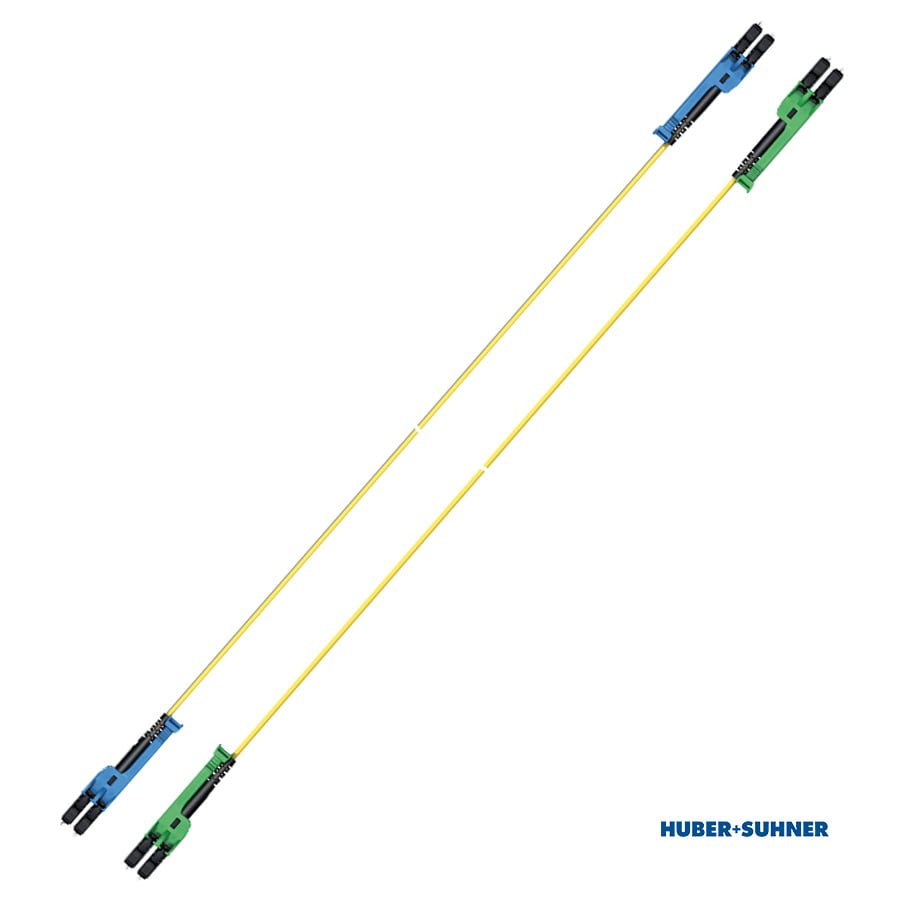

HUBER+SUHNER Single Mode APC UPC LC-XD Duplex Fibre Patch Cord
The innovative LC-XD Duplex fibre patch cord sets a new standard for packing densities and handling in Data Centres and Enterprise IT rooms. With the LC connector established because for its size and very reliable connection quality, the LC-XD connector from HUBER+SUHNER further enhances this thanks to its extended lever.
The extended lever on the HUBER+SUHNER LC-XD connector provides a stable grip that improves handling, particularly in high-density application. The lever controls the push-pull mechanism making it easier to install and remove. Clip-on port numbers can be attached to the end of the lever that makes identifying ports easier making the LC-XD Duplex fibre patch cord the ideal solution in highly-populated cross-connect racks and patching frames.
Polarity of the patch cords can be easily changed in field. As standard patch cords are supplied with the polarity set as A-B/B-A ready for use with interconnect duplex adapters.
HUBER+SUHNER LC-XD Duplex fibre patch cords are available in Single Mode UPC or APC patch leads, as well as in a Multi-Mode OM4 version, in a range of lengths from 1m to 30m†.
Characteristics of H+S LC-XD Duplex Fibre Patch Cords
- Push-pull mechanism for best handling and highest packing density.
- Stable lever with anti-grip design and marking possibility.
- Patented (US 8.221.007).
- Sophisticated design for easy termination.
- Short rigid length.
- Two connections in one SC-shaped adapter.
- Polarity flipping without tool.
- Compatible to standard (6.25mm) and mini LC (5.25mm) adapters and transceivers.
- Cable low smoke and free of halogen (LSFH). .
- Available in various lengths from 1m to 30m†.
† Non all lengths are stock, some lengths are only available on request.
Specifications
Specifications
Technical Data
| Cable Diameter (Ø) | 2.1mm |
|---|---|
| Design acc. to IEC 61754-20 and TIA 604-10-A | Compliant |
| Thermal & Mechanical Tests acc. to IEC 61753-1 | Fulfilled |
| Side load acc. to GR-326-CORE | Fulfilled |
| Tensile Load | 70N |
| Operating Temperature | -25 to +70°C |
| Durability | Min. 1000 mating cycles |
| Material | Flame retardant acc. to UL 94 V-0 |
| Halogen Free | Yes |
| Chemical Resistance | Good |
| RoHS Guidelines 2011/65/EU | Compliant |
Optical Values
| Measurement method (IL/RL) | IL (dB) | RL (dB) | |
|---|---|---|---|
| SM UPC | IL tested per IEC 61300-3-4 method B RL tested per IEC 61300-3-6 | ≤ 0.30 | ≥ 50 |
| SM APC | ≥ 65 | ||
| MM OM4 | IL tested per IEC 61300-3-34 method C RL tested per IEC 61300-3-6 | ≤ 0.30* | ≥ 35 |
*Measurement of the whole assembly
Part Numbers
Part Numbers
LC-XD UPC Patch Cords
| Part Number | Description |
|---|---|
| 85016597 | 1m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85016599 | 2m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85016600 | 3m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85020818 | 3.5m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85019951 | 4m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85016601 | 5m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85020819 | 6m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85020820 | 7m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85074243 | 8m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85098855 | 9m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85016602 | 10m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85119362 | 11m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85085713 | 12m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85143485 | 13m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85143487 | 14m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85020821 | 15m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85142891 | 16m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85144374 | 17m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85098540 | 18m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85144375 | 19m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85020822 | 20m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85025976 | 25m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
| 85025977 | 30m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, UPC, A-B/B-A Polarity |
LC-XD APC Patch Cords
| Part Number | Description |
|---|---|
| 85020987 | 1m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85020988 | 2m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85020989 | 3m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85020990 | 3.5m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85124214 | 4m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85020991 | 5m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85020992 | 6m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85020993 | 7m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85087442 | 8m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85087443 | 9m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85020994 | 10m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85121187 | 11m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85121190 | 12m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85121192 | 13m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85121194 | 14m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85020995 | 15m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85121197 | 16m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85167237 | 17m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85167238 | 18m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85020996 | 20m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
| 85156249 | 25m LC-XD to LC-XD, figure-0 uniboot cable, Ø2.1 mm, Singlemode, APC, A-B/B-A Polarity |
