HUBER+SUHNER Single Mode Push-Pull LC-SC Duplex transition patch cords enable the transition from LC connections to SC connections and are available in lengths from 1m to 10m.

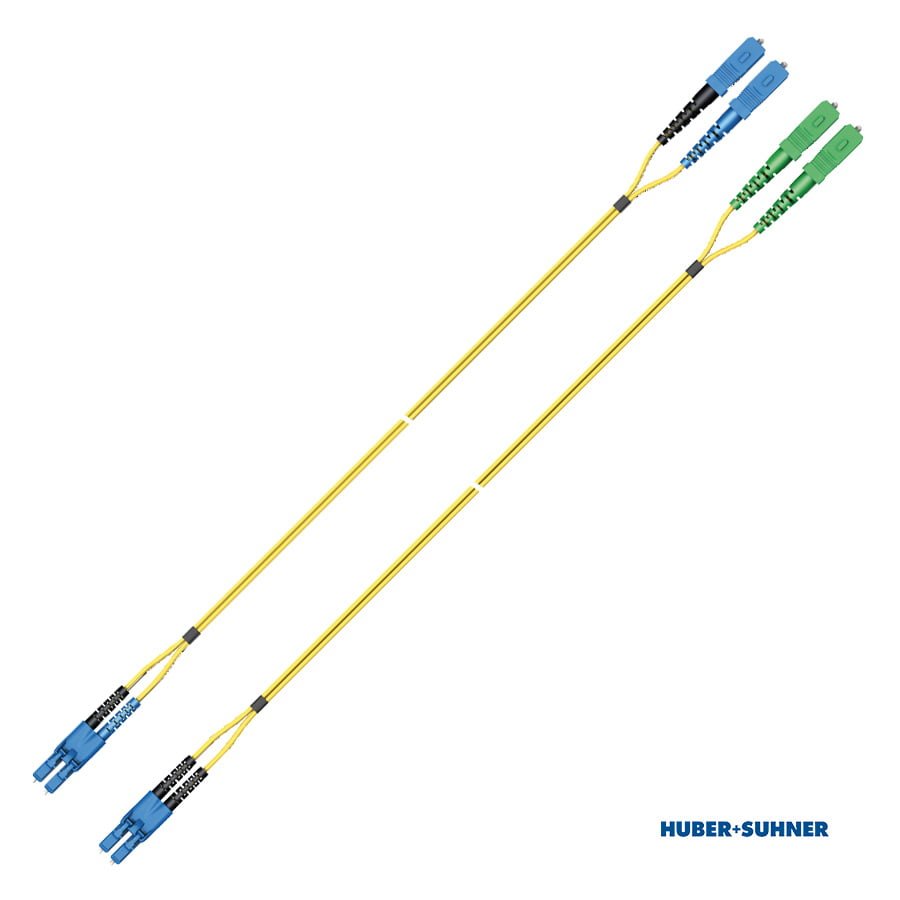

H+S Single Mode LC-SC Duplex Transition Patch Cords
HUBER+SUHNER transition patch cords with LC-SC connectors
HUBER+SUHNER Single Mode LC-SC Duplex transition patch cords allow the transition from LC connections to SC connections. This duplex transition patch cord features connectors with a push-pull mechanism for best handling and highest packing density. Their solid unibody design helps improve the mechanical strength. The Single Mode Duplex versions are available with UPC LC connector to UPC SC connector or UPC LC connector to APC SC connector.
The Duplex LC-SC transition patch cords are available in lengths from 1m to 10m with the cables being low smoke and free of halogen (LSFH). Single Mode Simplex patch cords are also available.
Characteristics of HUBER+SUHNER LC-SC Duplex Transition Patch Cords
- Push-pull mechanism for best handling and highest packing density.
- Solid unibody design to improve mechanical strength.
- Cable low smoke and free of halogen (LSFH).
- Available in various lengths from 1m to 10m.
Specifications
Specifications
Technical Data
| Cable Diameter (Ø) | Fig.8, 2.0mm |
|---|---|
| Design acc. to IEC 61754-4 /-20 and TIA 604-3 /-10-A | Compliant |
| Thermal & Mechanical Tests acc. to IEC 61753-1 | Fulfilled |
| Side load acc. to GR-326-CORE | Fulfilled |
| Tensile Load | 2 x 100N |
| Operating Temperature | -25 to +70°C |
| Durability | Min. 1000 mating cycles |
| Material | Flame retardant acc. to UL 94 V-0 |
| Halogen Free | Yes |
| Chemical Resistance | Good |
| RoHS Guidelines 2011/65/EU | Compliant |
Optical Values
| Measurement method (IL/RL) | IL (dB) | RL (dB) | |
|---|---|---|---|
| SM UPC | IL: IEC 61300-3-4 method B RL: IEC 61300-3-6 | ≤ 0.30 | ≥ 50 |
| SM APC | ≥ 65 | ||
| MM OM3 | IL: IEC 61300-3-34 method C RL: IEC 61300-3-6 | ≤ 0.50* | ≥ 35 |
| MM OM4 | ≤ 0.30* |
*Measurement of the whole assembly
Part Numbers
Part Numbers
Singlemode UPC, LC Push-Pull/SC Duplex Patch Cords
| Part Number | Description |
|---|---|
| 85031636 | 1m Singlemode UPC, LC Push-Pull/SC Duplex Patch Cords |
| 85031637 | 2m Singlemode UPC, LC Push-Pull/SC Duplex Patch Cords |
| 85031639 | 5m Singlemode UPC, LC Push-Pull/SC Duplex Patch Cords |
| 85031640 | 7m Singlemode UPC, LC Push-Pull/SC Duplex Patch Cords |
| 85031641 | 10m Singlemode UPC, LC Push-Pull/SC Duplex Patch Cords |
Singlemode UPC/APC, LC Push-Pull/SC Duplex Patch Cords
| Part Number | Description |
|---|---|
| 85031645 | 1m Singlemode UPC/APC, LC Push-Pull/SC Duplex Patch Cords |
| 85031646 | 2m Singlemode UPC/APC, LC Push-Pull/SC Duplex Patch Cords |
| 85031648 | 5m Singlemode UPC/APC, LC Push-Pull/SC Duplex Patch Cords |
| 85031649 | 7m Singlemode UPC/APC, LC Push-Pull/SC Duplex Patch Cords |
| 85031650 | 10m Singlemode UPC/APC, LC Push-Pull/SC Duplex Patch Cords |
