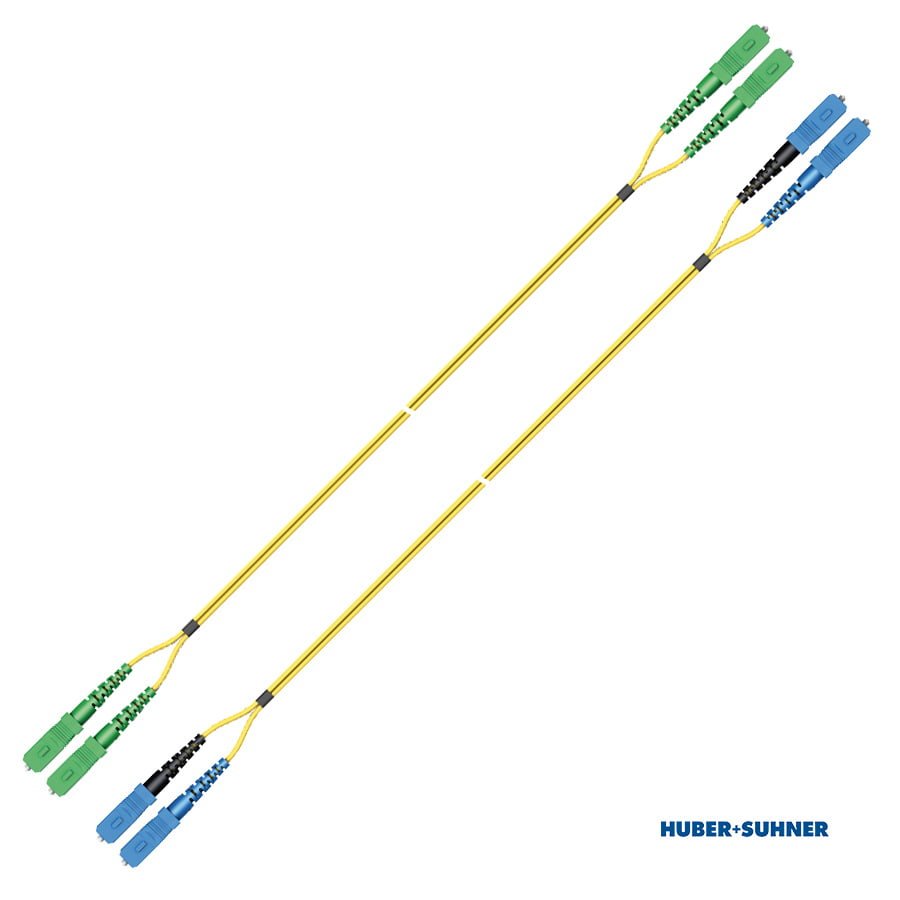

The HUBER+SUHNER Single Mode SC Push-Pull Duplex patch cord is a LSFH SC Duplex patch cable with APC or UPC connectors.
Single Mode SC Push-Pull Duplex Fibre Patch Cord
SC Push-Pull Duplex patch cord with APC or UPC connectors
HUBER+SUHNER Single Mode SC Push-Pull Duplex patch cord uses APC or UPC SC connectors. With SC connectors being one of the most common solutions for reliable fibre networks the HUBER+SUHNER SC connector has a big form ferrule that ensures a reliable optical connection and good mechanical stability, while its Push-Pull design prevents rotational misalignment.
The Push-Pull mechanism also provides excellent handling while the one-piece design allows for easy and quick termination. A clip is available for Duplex setup and the polarity can be flipped without the aid of tools.
The Single Mode SC Push-Pull Duplex patch cords are available in various lengths from 1m to 20m, all with cable that is low smoke and free of halogen (LSFH). They are also available as Single Mode Simplex cables.
Characteristics of HUBER+SUHNER SC Push-Pull Duplex Patch Cords
- Push-pull mechanism for best handling.
- One-piece design for easy and quick termination.
- Clip available for duplex setup, Polarity flipping without tool.
- Cable low smoke and free of halogen (LSFH).
- Available in various lengths from 1m to 20m.
Specifications
Specifications
Technical Data
| Cable Diameter (Ø) | Fig.8, 2.0mm |
|---|---|
| Design acc. to IEC 61754-4 and TIA 604-3 | Compliant |
| Thermal & Mechanical Tests acc. to IEC 61753-1 | Fulfilled |
| Side load acc. to GR-326-CORE | Fulfilled |
| Tensile Load | 2 x 100N |
| Operating Temperature | -25 to +70°C |
| Durability | Min. 1000 mating cycles |
| Material | Flame retardant acc. to UL 94 V-0 |
| Halogen Free | Yes |
| Chemical Resistance | Good |
| RoHS Guidelines 2011/65/EU | Compliant |
Optical Values
| Measurement method (IL/RL) | IL (dB) | RL (dB) | |
|---|---|---|---|
| SM UPC | IL: IEC 61300-3-4 method B RL: IEC 61300-3-6 | ≤ 0.30 | ≥ 50 |
| SM APC | ≥ 65 | ||
| MM OM3 | IL: IEC 61300-3-34 method C RL: IEC 61300-3-6 | ≤ 0.50* | ≥ 35 |
| MM OM4 | ≤ 0.30* |
*Measurement of the whole assembly
Part Numbers
Part Numbers
Singlemode UPC, SC Duplex Patch Cords
| Part Number | Description |
|---|---|
| 85031158 | 1m Singlemode UPC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031159 | 2m Singlemode UPC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031160 | 3m Singlemode UPC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031161 | 5m Singlemode UPC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031162 | 6m Singlemode UPC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031163 | 7m Singlemode UPC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031164 | 10m Singlemode UPC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031165 | 15m Singlemode UPC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031166 | 20m Singlemode UPC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
Singlemode APC, SC Duplex Patch Cords
| Part Number | Description |
|---|---|
| 85029993 | 1m Singlemode APC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85029995 | 2m Singlemode APC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85029997 | 3m Singlemode APC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85030000 | 5m Singlemode APC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85030001 | 6m Singlemode APC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85030002 | 7m Singlemode APC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85030003 | 10m Singlemode APC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85030004 | 15m Singlemode APC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85030005 | 20m Singlemode APC, SC Duplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
