More About This Product
The HUBER+SUHNER Single Mode SC Push-Pull Simplex patch cord is a LSFH SC Simplex patch cable with APC, UPC or APC/UPC connectors.

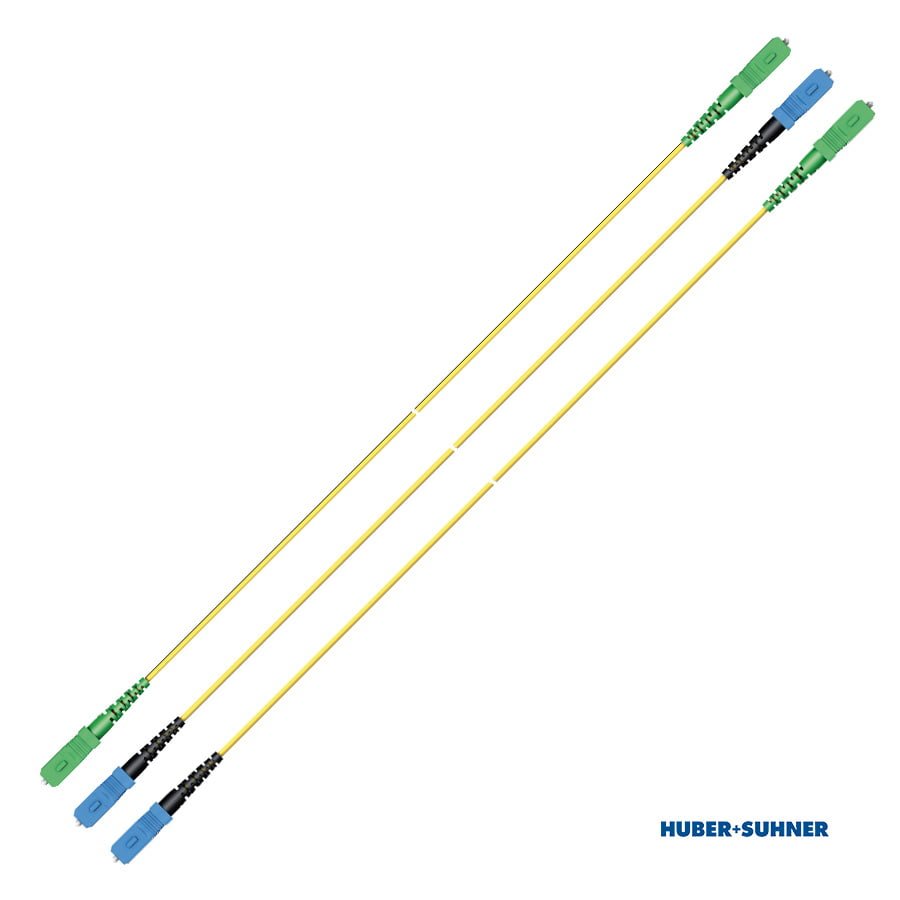

Single Mode SC Push-Pull Simplex Fibre Patch Cord
SC Push-Pull Simplex patch cord with APC, UPC or APC/UPC connectors
HUBER+SUHNER Single Mode SC Push-Pull Simplex patch cord is available with APC or UPC SC connectors at both ends or as an APC to UPC patch cord. With SC connectors being one of the most common solutions for reliable fibre networks the HUBER+SUHNER SC connector has a big form ferrule that ensures a reliable optical connection and good mechanical stability, while its Push-Pull design prevents rotational misalignment.
The Push-Pull mechanism also provides excellent handling while the one-piece design allows for easy and quick termination.
The Single Mode SC Push-Pull Simplex patch cords are available in various lengths from 1m with the maximum length varying depending on the connector. UPC cables have a maximum length of 15m while APC is 10m and APC/UPC is 5m; all with cable that is low smoke and free of halogen (LSFH). They are also available as Single Mode Duplex patch cords.
Characteristics of HUBER+SUHNER SC Push-Pull Simplex Patch Cords
- Push-pull mechanism for best handling.
- One-piece design for easy and quick termination.
- Cable low smoke and free of halogen (LSFH).
- Available in various lengths from 1m to 15m†.
† Except: Single Mode APC maximum length 10m and Single Mode UPC/APC maximum length 5m.
Specifications
Specifications
Technical Data
| Cable Diameter (Ø) | 2.0mm |
|---|---|
| Design acc. to IEC 61754-4 and TIA 604-3 | Compliant |
| Thermal & Mechanical Tests acc. to IEC 61753-1 | Fulfilled |
| Side load acc. to GR-326-CORE | Fulfilled |
| Tensile Load | 100N |
| Operating Temperature | -20 to +70°C |
| Durability | Min. 1000 mating cycles |
| Material | Flame retardant acc. to UL 94 V-0 |
| Halogen Free | Yes |
| Chemical Resistance | Good |
| RoHS Guidelines 2011/65/EU | Compliant |
Optical Values
| Measurement method (IL/RL) | IL (dB) | RL (dB) | |
|---|---|---|---|
| SM UPC | IL: IEC 61300-3-4 method B RL: IEC 61300-3-6 | ≤ 0.30 | ≥ 50 |
| SM APC | ≥ 65 | ||
| MM OM3 | IL: IEC 61300-3-34 method C RL: IEC 61300-3-6 | ≤ 0.50* | ≥ 35 |
| MM OM4 | ≤ 0.30* |
*Measurement of the whole assembly
Part Numbers
Part Numbers
Singlemode UPC, SC Simplex Patch Cords
| Part Number | Description |
|---|---|
| 85031208 | 1m Singlemode UPC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031209 | 2m Singlemode UPC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031210 | 3m Singlemode UPC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031211 | 5m Singlemode UPC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031212 | 6m Singlemode UPC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031213 | 7m Singlemode UPC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031214 | 10m Singlemode UPC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031215 | 15m Singlemode UPC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
Singlemode APC, SC Simplex Patch Cords
| Part Number | Description |
|---|---|
| 85031229 | 1m Singlemode APC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031230 | 2m Singlemode APC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031231 | 3m Singlemode APC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031232 | 5m Singlemode APC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031233 | 6m Singlemode APC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031234 | 7m Singlemode APC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85031235 | 10m Singlemode APC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
Singlemode UPC/APC, SC Simplex Patch Cords
| Part Number | Description |
|---|---|
| 85089887 | 1m Singlemode UPC/APC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85098888 | 2m Singlemode UPC/APC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85089889 | 3m Singlemode UPC/APC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
| 85089890 | 5m Singlemode UPC/APC, SC Simplex, Fig. 8, 2.0 mm yellow G.657.A2 cable, Patch Cord |
