More About This Product
HUBER+SUHNER Multi-Mode SC-HQ BTW fibre pigtails are available with OM4 connectors in 2m lengths and come as an assembled pigtail, either as a single piece or as a set of 12.

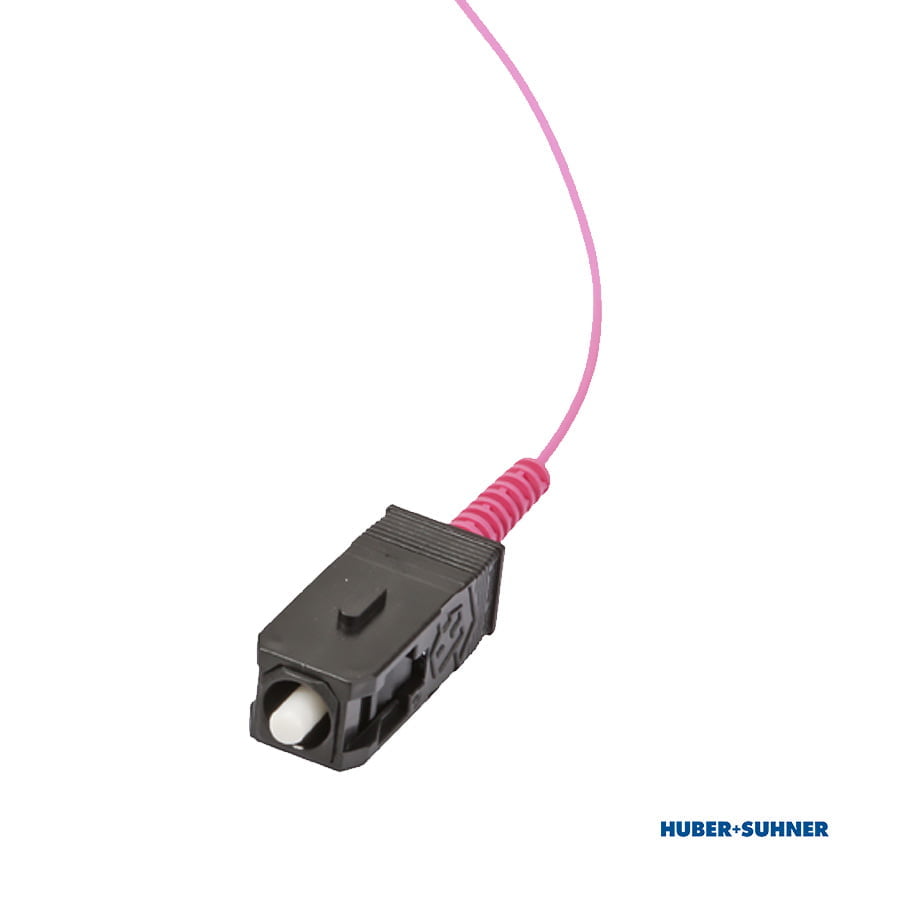

HUBER+SUHNER Multi-Mode SC-HQ BTW Fibre Pigtails
Multi-Mode SC-HQ assembled fibre pigtails perfect for splicing
The HUBER+SUHNER Multi-Mode SC-HQ BTW fibre pigtail features a completely re-designed connector that offers excellent mechanical and thermal characteristics, along with one of the shortest rigid lengths. These pre-assembled pigtails are available as singles or in sets of 12 and in 2m lengths, with Multi-Mode OM4 connectors. APC and UPC Single Mode versions are also available.
The new design, as well as providing better mechanical and thermal stability, also features boots that provide ideal bending properties and make endface polishing better visibly with coloured boots.
Multi-Mode pigtails are also available with LC-HQ and E2000 connectors.
Characteristics of HUBER+SUHNER SC-HQ BTW Fibre Pigtails
- Shortest installation length.
- New design with outstanding mechanical and thermal stability.
- Boots with ideal bending properties.
- Endface polishing is better visible with coloured boots.
- Patented (US 8.931.963).
- Only available as assembled pigtail.
- Available as single and sets.
- Packing is optimised for logistical aspects.
- Cable easy-strip.
- Available in 2m lengths.
Specifications
Specifications
Technical Data
| Cable Diameter (Ø) | 0.9mm |
|---|---|
| Design acc. to IEC 61754-4 and TIA 604-3 | Compliant |
| Thermal & Mechanical Tests acc. to IEC 61753-1 | Fulfilled |
| Operating Temperature | -40 to +85°C |
| Durability | Min. 1000 mating cycles |
| Material | Flame retardant acc. to UL 94 V-0 |
| Halogen Free | Yes |
| Chemical Resistance | Good |
| RoHS Guidelines 2011/65/EU | Compliant |
Optical Values
| Measurement method (IL/RL) | IL (dB) | RL (dB) | |
|---|---|---|---|
| SM UPC | IL: IEC 61300-3-4 method B RL: IEC 61300-3-6 | ≤ 0.30 | ≥ 50 |
| SM APC | ≥ 65 | ||
| MM OM4 | IL: IEC 61300-3-34 method B RL: IEC 61300-3-6 | ≤ 0.15 | ≥ 35 |
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 85012804 | Single Pigtail, SC, OM4, Ø0.9 mm, 2 m, heather violet |
| 85015782 | 12 pigtails set, SC, OM4, Ø0.9 mm, 2 m, colours per TIA |
