More About This Product
HUBER+SUHNER Single Mode E2000 Pigtail utilises a high-performance UPC or APC E2000 connector to provide a fibre pigtail that meets the highest standards of excellence.
HUBER+SUHNER Single Mode LSH BTW E2000 Pigtail
Single Mode pigtail with high-performance UPC or APC E2000 connector
HUBER+SUHNER’s Single Mode LSH BTW E2000 pigtail uses a high-performance E2000 connector that meets the highest standards of excellence in design and manufacturing processes.
The unique automatic full metal shutter protects the pin from pollution as well as increasing personal safety. With only high quality and high precision materials being used to guarantee connections at the highest level, HUBER+SUHNER E-2000 products meet the International Standards IEC 61754-15 and TIA 604-16 and are also naturally RoHS compliant.

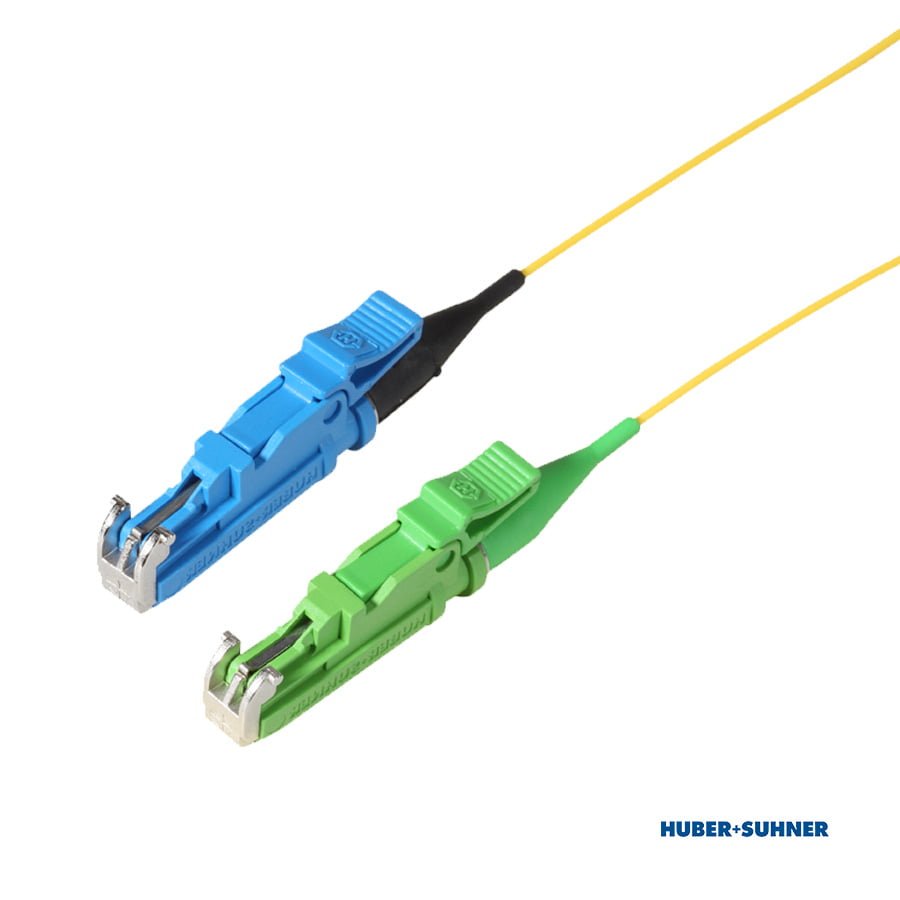

Coloured housing on the Single Mode E2000 pigtail indicates the fibre type; blue for UPC and green for APC. The connector has a full metal shutter that protects the end-face polishing that delivers the highest optical characteristics, as well as the connector providing the best thermal and mechanical characteristics too. Available in 2m lengths, with an E2000 Multi-Mode pigtail also available for OM4 fibre types.
Single Mode pigtails are also available with LC connectors or SC Connectors.
Characteristics of LSH BTW E2000 Pigtail
- Coloured housing indicate the fibre type resp. the end-face polishing.
- Best thermal and mechanical characteristics.
- Highest optical characteristics.
- Highest safety with automatic full metal shutter.
- Fulfils side load acc. to GR-326-CORE*.
- Shortest rigid length => 28 mm.
- Patented (US 8.931.963).
- Available in 2m lengths.
Specifications
Specifications
Technical Data
| Cable Diameter (Ø) | 0.9mm |
|---|---|
| Design acc. to IEC 61754-15 and TIA 604-16 | Compliant |
| Thermal & Mechanical Tests acc. to IEC 61753-1 | Fulfilled |
| Operating Temperature | -40 to +85°C |
| Durability | Min. 1000 mating cycles |
| Material | Flame retardant acc. to UL 94 V-0 |
| Halogen Free | Yes |
| Chemical Resistance | Good |
| RoHS Guidelines 2011/65/EU | Compliant |
Optical Values
| Measurement method (IL/RL) | IL (dB) | RL (dB) | |
|---|---|---|---|
| SM UPC | IL: IEC 61300-3-4 method B RL: IEC 61300-3-6 | ≤ 0.25 | ≥ 50 |
| SM APC | ≥ 65 / ≥ 85† | ||
| MM OM4 | IL: IEC 61300-3-34 method B RL: IEC 61300-3-6 | ≤ 0.25 | ≥ 35 |
† Process control, random measurement method 3 (OLCR)
Part Numbers
Part Numbers
| Part Number | Description |
|---|---|
| 85108035 | Single Pigtail, E-2000 UPC, SM, Ø0.9 mm, 2 m, yellow |
| 85108036 | 12 pigtails set, E-2000 UPC, SM, Ø0.9 mm, 2 m, colours per TIA |
| 85108037 | Single Pigtail, E-2000 APC, SM, Ø0.9 mm, 2 m, yellow |
| 85108038 | 12 pigtails set, E-2000 APC, SM, Ø0.9 mm, 2 m, colours per TIA |
