More About This Product

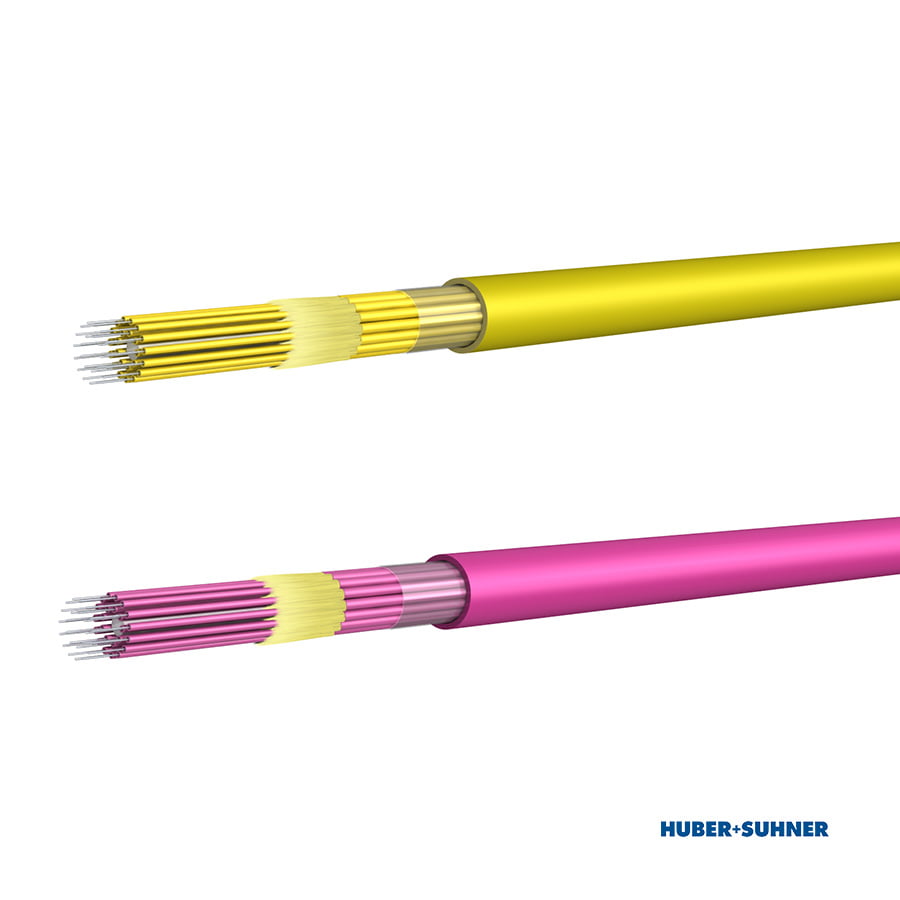

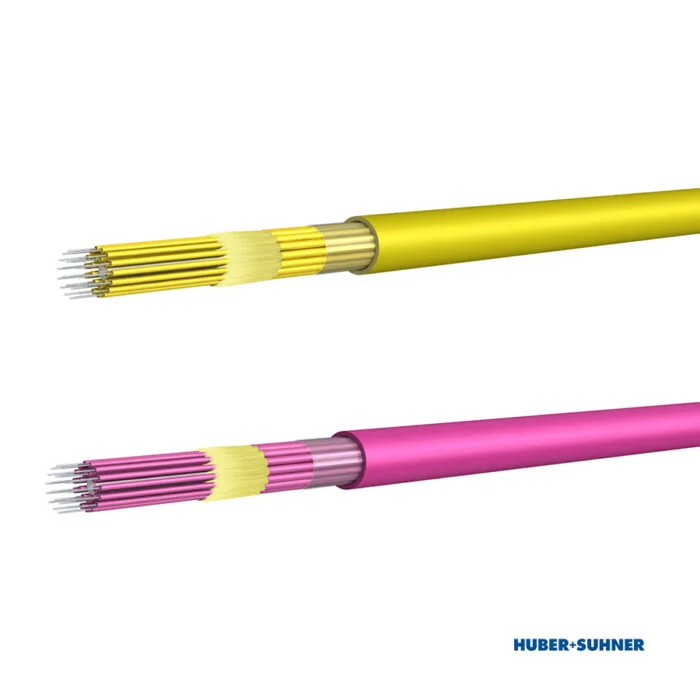

HUBER+SUHNER Optipack Base24 OS2 or OM4 Multi-Fibre Breakout Cable consists of single tubes containing 24 fibres and is designed for MTP / MPO applications. This cable is available with 96, 144 or 288 fibres and is CPR compliant to B2ca.
HUBER+SUHNER Optipack Base 24 Breakout Cables
OS2 or OM4 Multi-fibre breakout cable providing 96, 144 or 288 optical fibres
HUBER+SUHNER Optipack Base24 OS2 or OM4 Multi-Fibre Break out cable is specially designed for MPT / MPO applications. Each single 3.0mm tube contains 24 fibres with each breakout cable containing either 4, 6 or 12 tubes (96, 144 or 288 fibres). This metal free breakout cable is suitable for indoor use and features a ripcord for easy jacket removal and an aramide yarn for strain relief. Designed for horizontal and collapsed backbone cabling and fitting to multi-fibre MTP / MPO connectors, the HUBER+SUHNER Optipack 24 multi-fibre breakout cable offers improved fire performance being low smoke, halogen free (LSFH), self-extinguishing and CPR compliant to B2ca-s1a, d0, a1.
It is ideal to use in conjunction with HUBER+SUHNER’s advanced IANOS fibre optic management system, and is one of several fibre optic installation cables with HUBER+SUHNER’s range.
Features & Benefits
Features & Benefits
- Single tubes with 24 fibres.
- Metal free indoor cable.
- Strain relieved with aramide yarn.
- Ripcord for easy jacket removal.
- Low smoke, halogen free and self-extinguishing.
- Cable with improved fire performance.
- Installation in indoor areas.
- Data cable in distribution networks.
- Ideal for applications involving high safety requirements in case of fire.
- For horizontal and collapsed backbone cabling.
- Fits multi-fibre connectors (MPO/MTP®).
Specifications
Specifications
Design
| Cable Design | Central strength member; non-metallic 48, 96, 144 or 288 optical fibres Strain relief (aramide yarn) Separating tape and 1 ripcord | |
|---|---|---|
| Channel Marketing | Single fibre cable numbered | |
| Jacket Material | LSFH™ | |
| Tube / Jacket Colour | E9 low bend | Yellow |
| OM4 | Heather Violet | |
General
| No. of Fibres (24 Fibres) | 96 | 288 | ||
|---|---|---|---|---|
| Jacket Ø | mm | 9.3 | 14.0 | |
| Single Fibre Cable Ø | mm | 3.0 | Numbered | |
| Approx. Weight | kg/km | 78 | 167 | |
Mechanical Properties
| No. of Fibres (24 Fibres) | 96 | 288 | |||
|---|---|---|---|---|---|
| Tensile Strength | During installation | N | 600 | 1400 | IEC 60794-1-21 E1 |
| In service | 4 x 100 | 12 x 100 | |||
| Min. Bend Radius | During installation | mm | 130 | 200 | IEC 60794-1-21 E11 |
| In service | 90 | 135 | |||
| Crush Resistance | During installation | N/dm | 5000 | IEC 60794-1-21 E3 | |
| In service | 1000 | ||||
| Impact Resistance | Wp = 1.0 J | Impacts | 50 | IEC 60794-1-21 E4 | |
| Kink Resistance | r = 25mm | Passed | IEC 60794-1-21 E10 | ||
Thermal Properties
| No. of Fibres (24 Fibres) | 96 | 288 | |||
|---|---|---|---|---|---|
| Temperature Range | During installation | °C | -10 to +50 | IEC 60794-1-22 F12 | |
| In service | -10 to +70 | ||||
| In storage | -20 to +70 | ||||
Combustion Properties
| No. of Fibres (24 Fibres) | 96 | 288 | |||
|---|---|---|---|---|---|
| Fire Load | MJ/m | 1.35 | 3.1 | ||
| Fire Propagation | On a vertical single cable | Passed | IEC 60332-1-2 | ||
| On a vertical cable bundle | Passed | IEC 60332-3-25 | |||
| Smoke Density | Passed | IEC 61034-2 | |||
| Halogen acid gas | Jacket material | Passed | IEC 60754-1 | ||
| Degree of acidity | Jacket material | Passed | IEC 60754-2 | ||
| 2011/65/EC (RoHS) | Compliant | ||||
| (EU) No 305/2011 (CPR) | B2ca-s1a, d0, a1 | EN 50575 | |||
Part Numbers
Part Numbers
Singlemode OS2 Breakout Cables
| Part No. | Cable Type | Description |
|---|---|---|
| 85089597 | 96-24E9A2/(ZN)SNH-E30#B | Optipack breakout cable 3.0 mm/Ø 9.3 mm, 96 x 9/125 μm G.657.A2, LSFH yellow |
| 85092021 | 144-24E9A2/(ZN)SNH-E30#B | Optipack breakout cable 3.0 mm/Ø 10.8 mm, 144 x 9/125 μm G.657.A2, LSFH yellow |
| 85089610 | 288-24E9A2/(ZN)SNH-E30#B | Optipack breakout cable 3.0 mm/Ø 14.0 mm, 288 x 9/125 μm G.657.A2, LSFH yellow |
Multi Mode OM4 Breakout Cables
| Part No. | Cable Type | Description |
|---|---|---|
| 85096647 | 96-24G50/(ZN)SNH-L30-G#B | Optipack breakout cable 3.0 mm/Ø 9.3 mm, 96 x OM4, LSFH Heather Violet |
| On Request | 144-24G50/(ZN)SNH-E30#B | Optipack breakout cable 3.0 mm/Ø 10.8 mm, 144 x OM4, LSFH Heather Violet |
| 85096655 | 288-24G50/(ZN)SNH-L30-G#B | Optipack breakout cable 3.0 mm/Ø 14.0 mm, 288 x OM4, LSFH Heather Violet |
