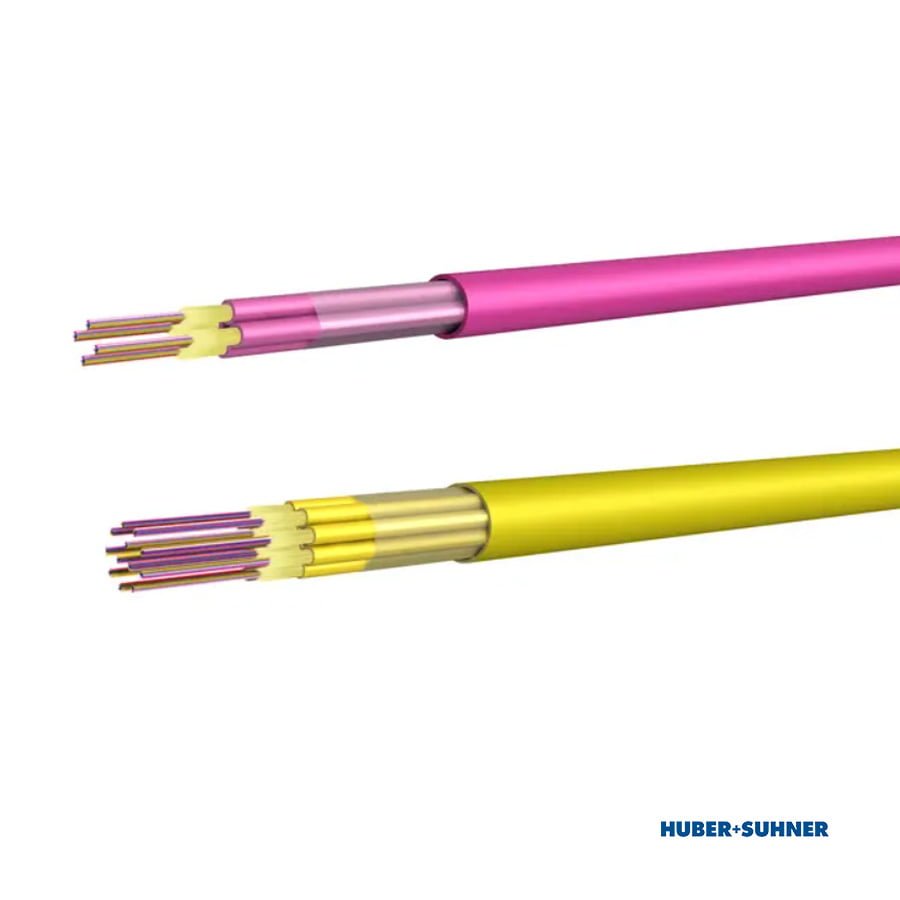

HUBER+SUHNER Optipack Base12 OS2 or OM4 Multi-Fibre Breakout Cable consists of single tubes containing 12 fibres. This 12 fibre breakout cable is designed for smartline applications. This cable is available with 12, 24, 48, 72, 96, or 144 288 fibres and is CPR compliant to B2ca.
HUBER+SUHNER Optipack Base 12 Breakout Cables
OS2 or OM4 Multi-fibre breakout cable with tubes of 12 fibres providing 12, 24, 48, 72, 96 or 144 optical fibres
HUBER+SUHNER Optipack Base12 OS2 or OM4 Multi-Fibre Breakout cable is designed for Smartline applications. Each single 2.0mm tube contains 12 fibres. The number of tubes per cable will vary depending on the over all fibre count quantity. Base12 breakout cables are available in counts of 12, 24, 48, 72, 96 or 144 fibres.
This metal free breakout cable is suitable for internal use and features a ripcord for easy jacket removal and an aramide yarn for strain relief. Designed for Smartline applications, the HUBER+SUHNER Optipack 24 multi-fibre breakout cable offers improved fire performance being low smoke, halogen free (LSFH), self-extinguishing and CPR compliant to B2ca-s1a, d0, a1.
It is ideal to use in conjunction with HUBER+SUHNER’s advanced IANOS fibre optic management system, and is one of several fibre optic installation cables with HUBER+SUHNER’s range.
Features & Benefits
Features & Benefits
- Multi-fibre breakout cable with tubes of 12 fibres.
- Singlemode and Multi Mode versions with cable counts of 12, 24, 48, 72, 96 or 144 fibres.
- Metal free indoor cable.
- Strain relieved with aramide yarn.
- Ripcord for easy jacked removal.
- CPR rated, low smoke, halogen free and self-extinguishing
Specifications
Specifications
Construction
| Fibre | Quantity | 12, 24, 48, 72, 96 or 144 |
|---|---|---|
| Strength Member | Quantity | 1 pcs |
| Type | Central | |
| Strain Relief | Type | Aramide yarn |
| Inner Jacket | Quantity | 4, 6, 8 or 12 pcs |
| Type | Fibre bundle | |
| Diameter | 2mm | |
| Rip Cord | Quantity | 1 pcs |
| Outer Jacket | Material | LSFH |
| Diameter | 6.6mm, 8mm, 9.6mm or 10.3mm |
Environmental Data
| CPR Class | Standard | EN 50575:2014+A1:2016 |
|---|---|---|
| Class | B2ca-s1a,d0,a1 | |
| Temperature | Standard | IEC 60794-1-22 F12 |
| During Installation | -10 °C … 60°C | |
| In Service | -20 °C … 70°C | |
| In Storage | -40 °C … 70°C | |
| Flame Propagation | Standard | IEC 60332-1-2 |
| Condition | On a vertical single cable | |
| Standard | IEC 60332-3-25 | |
| Condition | ||
| Fire Characteristics | Standard | IEC 61034-2 |
| Condition | Jacket material | |
| Characteristics | Degree of acidity | |
| Standard | IEC 60754-1 | |
| Condition | Jacket material | |
| Characteristics | Halogen acid gas | |
| Standard | IEC 60754-2 | |
| Condition | Jacket material | |
| Characteristics |
Mechanical Data*
* Data wil vary depending on exact cable. These figures are for guidance only accross the range of 12 to 144 fibres. For exact details please contact us.
| Weight | approx. 47g/m to 108g/m | |
|---|---|---|
| Tensile Strength | Standard | IEC 60794-1-21 E1 |
| During Installation | 1500 N to 2250 N | |
| In Service | 400 N to 1200 N | |
| Min. Bending Radius | Standard | IEC 60794-1-21 E11 |
| During Installation | 90mm to 150mm | |
| In Service | 90mm to 150mm | |
| Crush Resistance | Standard | IEC 60794-1-21 E3 |
| During Installation | 5000 N/dm | |
| In Service | 1000 N/dm | |
| Impact Resistance | Standard | IEC 60794-1-21 E4 |
| Energy | 1J | |
| Cycles | 50 |
Part Numbers
Part Numbers
Singlemode OS2 Cables
| Part No. | Cable Type | Description |
|---|---|---|
| 85096506 | 12-12E9A2/(ZN)SNH-E20#B | 12 Fibre, 6.6mm Singlemode Cable, Optipack Breakout, Internal, 1x Tube (3 x Filler Tubes), 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Yellow |
| 85092254 | 24-12E9A2/(ZN)SNH-E20#B | 24 Fibre, 6.6mm Singlemode Cable, Optipack Breakout, Internal, 2x Tubes (2 x Filler Tubes), 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Yellow |
| 85089314 | 48-12E9A2/(ZN)SNH-E20#B | 48 Fibre, 6.6mm Singlemode Cable, Optipack Breakout, Internal, 4x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Yellow |
| 85092006 | 72-12E9A2/(ZN)SNH-E20#B | 72 Fibre, 8mm Singlemode Cable, Optipack Breakout, Internal, 6x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Yellow |
| 85092007 | 96-12E9A2/(ZN)SNH-E20#B | 96 Fibre, 9.6mm Singlemode Cable, Optipack Breakout, Internal, 8x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Yellow |
| 85089316 | 144-12E9A2/(ZN)SNH-E20#B | 144 Fibre, 10.3mm Singlemode Cable, Optipack Breakout, Internal, 12 x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Yellow |
Multi Mode OM4 Cables
| Part No. | Cable Type | Description |
|---|---|---|
| 85096332 | 12-12G50/(ZN)SNH-L20-G#B | 12 Fibre, 6.6mm OM4 Multimode Cable, Optipack Breakout, Internal, 1 x Tube (3 x Filler Tubes), 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Heather Violet |
| 85093504 | 24-12G50/(ZN)SNH-L20-G#B | 24 Fibre, 6.6mm OM4 Multimode Cable, Optipack Breakout, Internal, 2 x Tubes (2 x Filler Tubes), 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Heather Violet |
| 85092256 | 48-12G50/(ZN)SNH-L20-G#B | 48 Fibre, 6.6mm OM4 Multimode Cable, Optipack Breakout, Internal, 4 x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Heather Violet |
| 85111308 | 72-12G50/(ZN)SNH-L20-G#B | 72 Fibre, 8mm OM4 Multimode Cable, Optipack Breakout, Internal, 6 x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Heather Violet |
| 85112192 | 96-12G50/(ZN)SNH-L20-G#B | 96 Fibre, 9.6mm OM4 Multimode Cable, Optipack Breakout, Internal, 8 x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Heather Violet |
| 85092017 | 144-12G50/(ZN)SNH-L20-G#B | 144 Fibre, 10.3mm OM4 Multimode Cable, Optipack Breakout, Internal, 12 x Tubes, 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Heather Violet |
