HUBER+SUHNER Optipack Double Jacket fibre cables are designed for internal Data Centre applications and available in Singlemode OS2 or Multi Mode OM4 fibre types.
HUBER+SUHNER Optipack Double Jacket Fibre Cables
12 or 24 fibre OS2 or OM4 Double Jacket Fibre Cables
EDP is a stock holding distributor for HUBER+SUHNER.
HUBER+SUHNER Optipack Double Jacket fibre cables are designed for internal installation within Data Centres. They can be used to connect to multi-fibre MPO/MTP connectors.

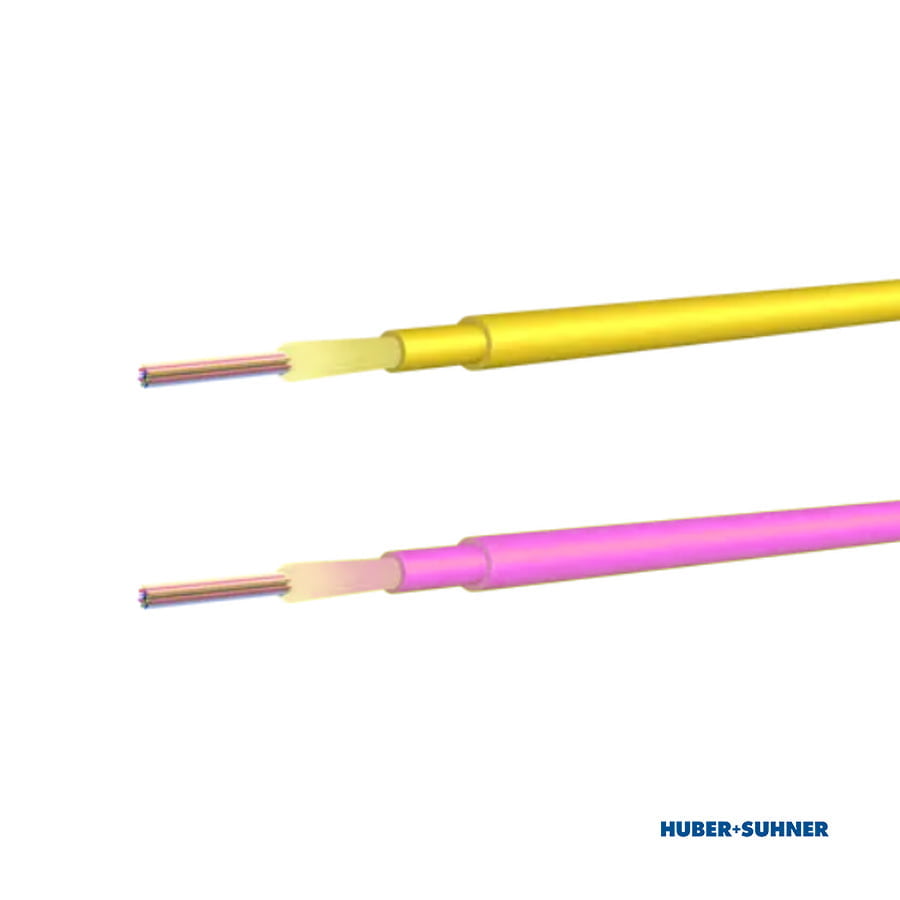

Optipack Double Jacket fibre cables are a metal free indoor cable available for Singlemode OS2 (Yellow) or Multi Mode OM4 (Heather Violet) applications. Strain relief is provided via aramide yarn. Tubes containing 12 or 24 fibres can be stripped up to 1m in one piece. These cables have a tight bending radii and are low smoke, halogen free and self-extinguishing with a B2ca CPR rating.
EDP Europe provide a cutting service so that cables can be ordered at the required length, saving on cable wastage and cost.
It is ideal to use in conjunction with HUBER+SUHNER’s advanced IANOS fibre optic management system, and is one of several fibre optic installation cables with HUBER+SUHNER’s range.
Features & Benefits
Features & Benefits
- Double jacket internal fibre cable.
- Singlemode and Multi Mode versions with cable counts of 12 or 24 fibres.
- Metal free indoor cable.
- Strain relieved with aramide yarn.
- Tube can be stripped up to 1m in one piece.
- CPR rated, low smoke, halogen free and self-extinguishing
Specifications
Specifications
Construction
| Fibre | Quantity: up to | 12 or 24 |
|---|---|---|
| Type | Uncoloured | |
| Strain Relief | Type | Aramide Yarn |
| Inner Jacket | Quantity | 1 pcs |
| Diameter | 2mm (12) / 3mm (24) | |
| Strain Relief | Type | Aramide Yarn |
| Outer Jacket | Material | LSFH |
| Diameter | 4mm (12) / 4.9mm (24) |
Environmental Data
| CPR Class | Standard | EN 50575:2014+A1:2016 |
|---|---|---|
| Class | B2ca-s1a,d0,a1 | |
| Flame Propagation | Standard | IEC 60332-1-2 |
| Condition | On a vertical single cable | |
| Fire Characteristics | Standard | IEC 61034-2 |
| Condition | Jacket material | |
| Characteristics | Smoke density | |
| Standard | IEC 60754-1 | |
| Condition | Jacket material | |
| Characteristics | Halogen acid gas | |
| Standard | IEC 60754-2 | |
| Condition | Jacket material | |
| Characteristics | Degree of acidity |
Mechanical Data*
* Data wil vary depending on exact cable. These figures are for guidance only accross the range of 12 to 24 fibres. For exact details please contact us.
| Weight | approx. 20g/m to 32g/m | |
|---|---|---|
| Tensile Strength | Standard | IEC 60794-1-21 E1 |
| During Installation | 500 N | |
| In Service | 200 N | |
| Min. Bending Radius | Standard | IEC 60794-1-21 E11 |
| During Installation | 15mm | |
| In Service | 15mm | |
| Crush Resistance | Standard | IEC 60794-1-21 E3 |
| During Installation | 2000 N/dm | |
| In Service | 100 N/dm | |
| Impact Resistance | Standard | IEC 60794-1-21 E4 |
| Energy | 0.5J | |
| Cycles | 50 | |
| Kink Resistance | Standard | IEC 60794-1-21 E10 |
| Radius | 10mm |
Part Numbers
Part Numbers
Singlemode OS2 Cables
| Part No. | Cable Type | Description |
|---|---|---|
| 85137705 | 12-E9A2/(ZN)HH-E20#B | 12 Fibre, 4mm Singlemode Cable, Double Jacket, Internal, 1x Tube, 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Yellow |
| 85102544 | 24-E9A2/(ZN)HH-E30#B | 24 Fibre, 4.9mm Singlemode Cable, Double Jacket, Internal, 1x Tube, 24 Fibres Per Tube, Tube Diameter 3mm, CPR B2ca Rated, Yellow |
Multi Mode OM4 Cables
| Part No. | Cable Type | Description |
|---|---|---|
| 85120659 | 12-G50/(ZN)HH-L20-G#B | 12 Fibre, 4mm OM4 Multimode Cable, Double Jacket, Internal, 1x Tube, 12 Fibres Per Tube, Tube Diameter 2mm, CPR B2ca Rated, Heather Violet |
| 85103329 | 24-G50/(ZN)HH-L30-G#B | 24 Fibre, 4.9mm OM4 Multimode Cable, Double Jacket, Internal, 1x Tube, 24 Fibres Per Tube, Tube Diameter 3mm, CPR B2ca Rated, Heather Violet |
